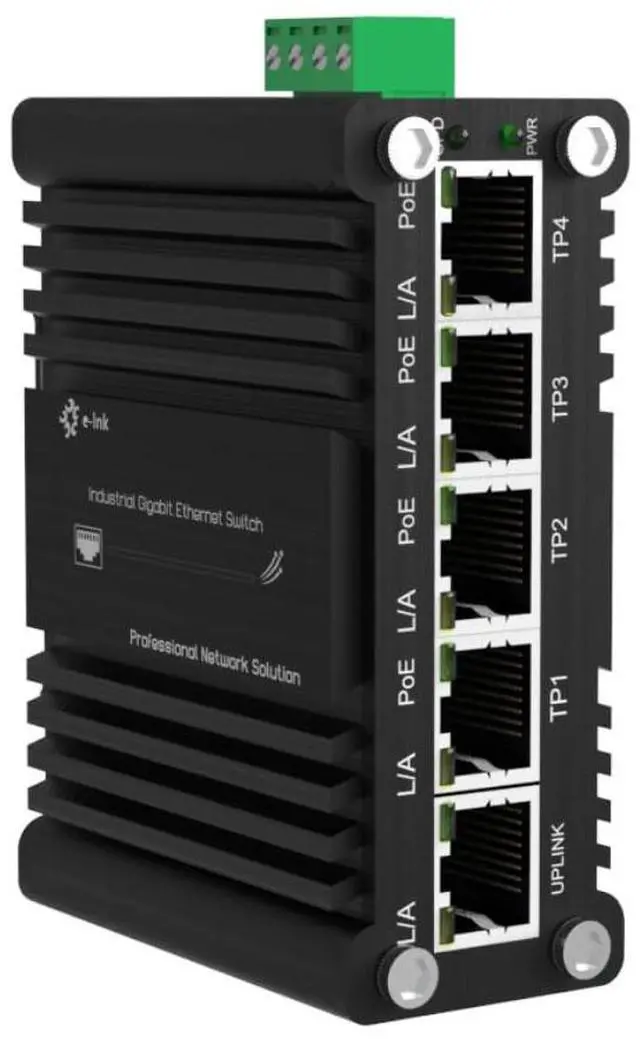

Throncom Mini Industrial 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch, Din Rail Unmanaged 10/100/1000Mbps Network Switch 30W/Port Max 120W 12-48V DC Thick Shell
- Port ConfigurationEquipped with 5 x 10/100/1000BASE-T ports and 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ Injector (Port-1 to Port-4).

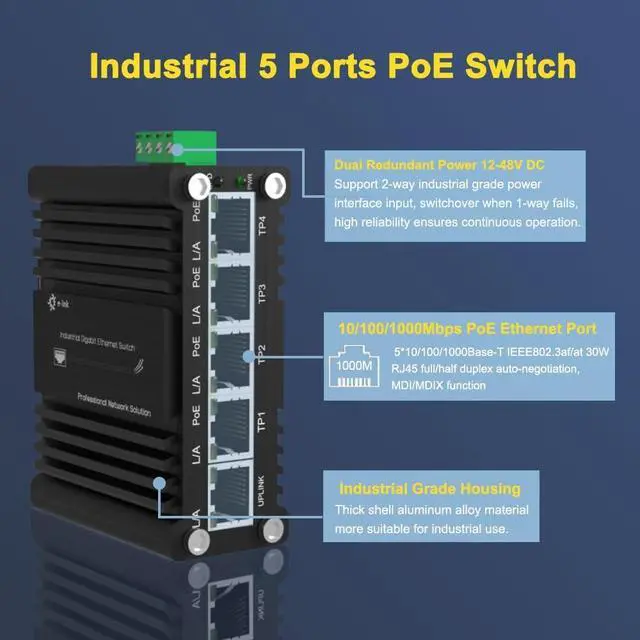

- Redundant Power Input The industrial network switch with DC12-48V wide voltage input supports 2-way industrial grade power interface input, one set of power supplies fails, and the other set can still work, high reliability ensures continuous operation.

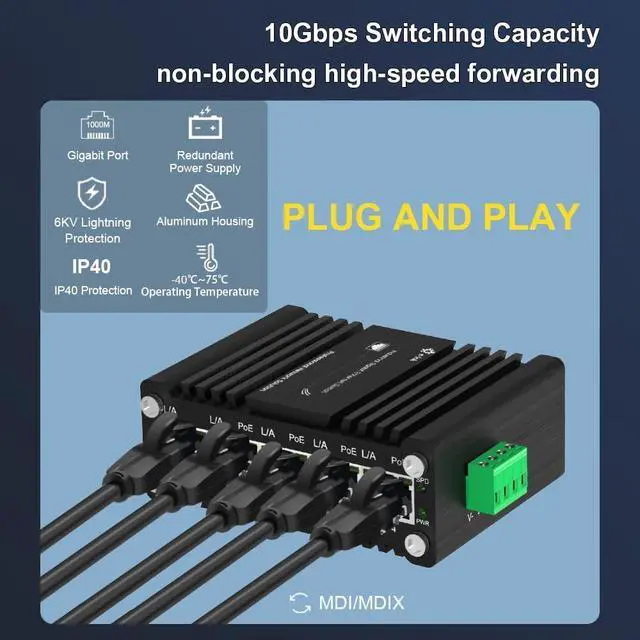

- Industrial Grade QualityIP40 protection grade, it can work in a wide temperature range from -40C to 80C (-40F to 176F) and 6KV lightning protection which make it can adapt to various harsh environments.
- Din Rail MountThe gigabit 5 ports switch with industrial grade aluminum alloy housing comes with 35mm din-rail mounting bracket and can install on universal din rail slot. Installation and disassembly are very simple.
- Widely UsedThe din-rail 5 port industrial switch is ideal for Surveillance Network, Industrial Automation, Intelligent Transportation, Smart City, etc.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview: LNK-IMC005GP Series is a Mini Industrial 4-Port 10/100/1000BASE-T 802.3 at PoE + 1-Port 10/100/1000T Ethernet Switch with 12~48VDC wide range power input. This unmanaged industrial Ethernet switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment. The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.
Features: 1. 5 x 10/100/1000BASE-T ports2. 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3 at PoE+ Injector (Port-1 to Port-4)3. 12~48VDC wide range power input4. Supports 802.3 x Flow control5. Supports DIN-Rail and Wall-mount installation6. Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC) 7. Industry standard design, dustproof and close design IP40, rugged high-strength metal case8. -40C to 80C (-40F to 176F) operating temperatureSpecifications: Packet
Buffer: 1MbitsPacket
Length: 10KbytesMAC
Address Table: 8KSwitch
Fabric:
10Gbps/non-blockingConnector: 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports, 4 ports with 802.3 at PoE+ injector function (Ports 1 to 4)
Standard: IEEE

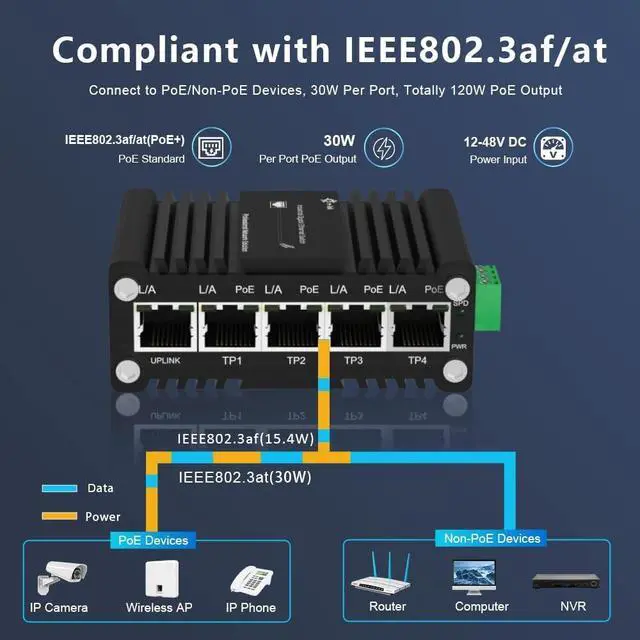

802.3 af/atPort: RJ45Power Pin Assignment 4/5(+), 7/8(-)PoE

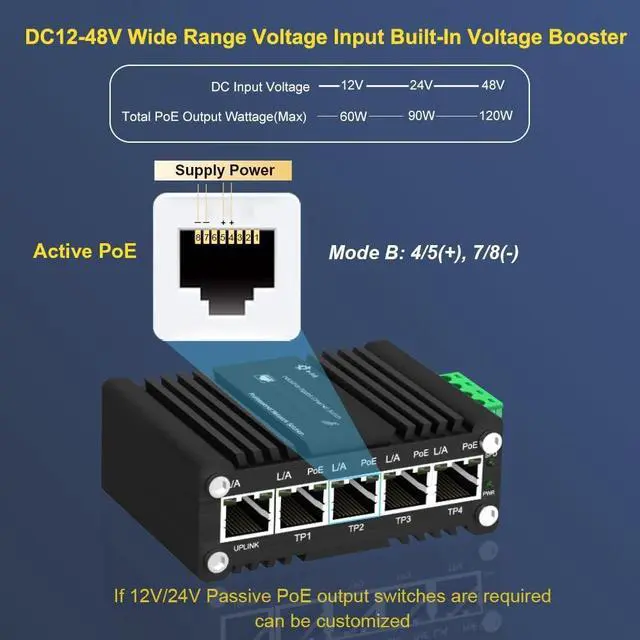

Budget: Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
Operating Temperature: -40C to 80C (-40F to 176F)Relative
Humidity: 5% to 95% non-condensingMTBF > 200, 000 hrsInput
Power: 12~48VDC (Terminal Block)
Power Consumption: <125W (Non-PoE<6W)PoE
Max 30W per portDimensions (WxDxH): 95
x 70x 29mmWeight: 0.25K
gCasing: Aluminum
CaseMounting Options: DIN-Rail /
Wall-mountPackages: 1* Ethernet Switch1* 4-pin Terminal Block1* Ethernet Switch Users Manual
Features: 1. 5 x 10/100/1000BASE-T ports2. 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3 at PoE+ Injector (Port-1 to Port-4)3. 12~48VDC wide range power input4. Supports 802.3 x Flow control5. Supports DIN-Rail and Wall-mount installation6. Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC) 7. Industry standard design, dustproof and close design IP40, rugged high-strength metal case8. -40C to 80C (-40F to 176F) operating temperatureSpecifications: Packet
Buffer: 1MbitsPacket
Length: 10KbytesMAC
Address Table: 8KSwitch
Fabric:
10Gbps/non-blockingConnector: 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports, 4 ports with 802.3 at PoE+ injector function (Ports 1 to 4)
Standard: IEEE
802.3 af/atPort: RJ45Power Pin Assignment 4/5(+), 7/8(-)PoE
Budget: Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
Operating Temperature: -40C to 80C (-40F to 176F)Relative
Humidity: 5% to 95% non-condensingMTBF > 200, 000 hrsInput
Power: 12~48VDC (Terminal Block)
Power Consumption: <125W (Non-PoE<6W)PoE
Max 30W per portDimensions (WxDxH): 95
x 70x 29mmWeight: 0.25K
gCasing: Aluminum
CaseMounting Options: DIN-Rail /
Wall-mountPackages: 1* Ethernet Switch1* 4-pin Terminal Block1* Ethernet Switch Users Manual
