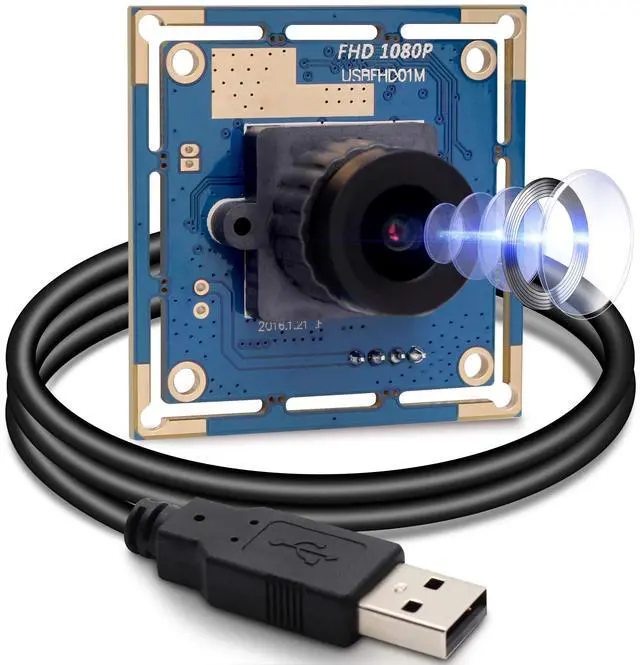

SVPRO 1080P HD USB Camera Module with 2.1mm Lens, 2MP OV2710 CMOS Board Camera, 30fps/720P 60fps/VGA 100fps High Frame Rate Machine Vision Cam USB Plug and Play for Windows Linux MacOS Android
- HD 1080P Camera1080P Full HD USB Camera Module with 1/2.7" CMOS OV2710 image sensor, a great camera board with high pixel technology for sharp image and accurate color reproduction.
- High Frame Rate2 Megapixel HD USB camera module has a high frame rate, captures your clips in ture 1080P glory and 30 frames per second, and 720P at 60fps, 480P at 100pfs, this usb camera board delivery decent and smooth image quality while catching moving objects.

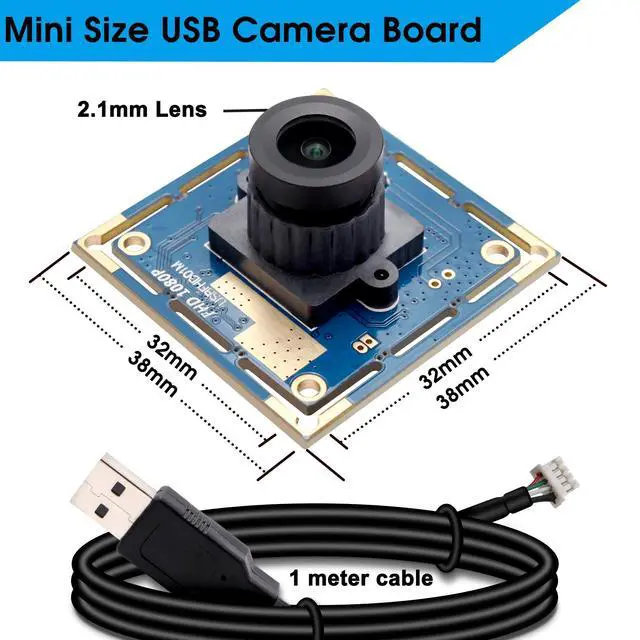

- Wide ApplicationsThis 1080P HD USB webcam board with size 38x38mm(can cut to 32x32mm), the open structure of this usb camera board is good for embedded project, widely use for video recording in industrial, machine vision, security monitoring systems
- Plug & Play, UVC 2 Megapixel USB camera module designed with standard UVC protocal USB connector, occupy less bandwidth, great improved the working efficiency. Easy to use usb web camera just play and plug no driver needed.
- Supported Systems USB camera module work with Windowns/Linux/Mac-
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The USB HD 1080P CMOS board camera module make it ideal for many applications such as security systems, portable video system, videophones, industrial machine monitoring, and toys. The USB camera module is ideal for fans, experimentateurs and to. Car and Boat control applications, electronic equipment, oil, industrial equipment, monitoring Remote Areas, monitoring of equipment. Used for all kinds of machine as shown below:, All-in-One machine, point of sale equipment, vending machine, safe external, Laptop, videophone, mid, Tablet, evaluated, medical equipment, law enforcement on the ground, sound and simple button, cat-eye system, security system, car, interactive, data logger system education.
Specification:
Sensor: 1/3 CMOS OV2710The size of the lens, 200 W, 2.0M egapixel, 1920 (H) x1080 (V) pixels Max.
Resolution: 1920 x 1080Image
Format: MJPEGUSB
protocal: USB 2.0 HS/FS, USB 1.1 FSSupport driver free, USB video class (UVC) 1.1E xposure: Auto
AEC: SupportAuto
White Blance AEB: SupportFrame
Rate: H. 264 30fps @ 1920 (H) x1080 (V) MJPEG 60 fps @ 1280 (H) 720 (V)
Adjustable parameters: brightness/contrast/color Saturation/definition vision/Gamma/WB30-150 level of tension OptionalDC 5 V;
Current:
150mATemperature: -20 ~ 70 (degres)
Sheet Size (Optional): 38x38 mm (default), 32Support
OS: Windows XP/Vista/Win7/Win8/Linux with UVC "Mac OS X 10.4. 8 or later/WinCE with UVC/Android 4.0 or above"Fast frame for high speed moving, 30fps@1080p, 60fps@720p, 100fps@VGA.
Performance: 1920 (H) x 1080 (V) pixels MJPEG 30fps YUY2 6fps1280 (H) x 1024 (V) pixels MJPEG 30fps YUY2 6fps1280 (H) x 720 (V) pixels MJPEG 60fps YUY2 9fps1024 (H) x 768 (V) pixels MJPEG 30fps YUY2 9fps800 (H) x 600 (V) pixels MJPEG 60fps YUY2 21fps640 (H) x 480 (V) pixels MJPEG 100fps YUY2 30fps
Specification:
Sensor: 1/3 CMOS OV2710The size of the lens, 200 W, 2.0M egapixel, 1920 (H) x1080 (V) pixels Max.
Resolution: 1920 x 1080Image
Format: MJPEGUSB
protocal: USB 2.0 HS/FS, USB 1.1 FSSupport driver free, USB video class (UVC) 1.1E xposure: Auto
AEC: SupportAuto
White Blance AEB: SupportFrame
Rate: H. 264 30fps @ 1920 (H) x1080 (V) MJPEG 60 fps @ 1280 (H) 720 (V)
Adjustable parameters: brightness/contrast/color Saturation/definition vision/Gamma/WB30-150 level of tension OptionalDC 5 V;
Current:
150mATemperature: -20 ~ 70 (degres)
Sheet Size (Optional): 38x38 mm (default), 32Support
OS: Windows XP/Vista/Win7/Win8/Linux with UVC "Mac OS X 10.4. 8 or later/WinCE with UVC/Android 4.0 or above"Fast frame for high speed moving, 30fps@1080p, 60fps@720p, 100fps@VGA.
Performance: 1920 (H) x 1080 (V) pixels MJPEG 30fps YUY2 6fps1280 (H) x 1024 (V) pixels MJPEG 30fps YUY2 6fps1280 (H) x 720 (V) pixels MJPEG 60fps YUY2 9fps1024 (H) x 768 (V) pixels MJPEG 30fps YUY2 9fps800 (H) x 600 (V) pixels MJPEG 60fps YUY2 21fps640 (H) x 480 (V) pixels MJPEG 100fps YUY2 30fps
