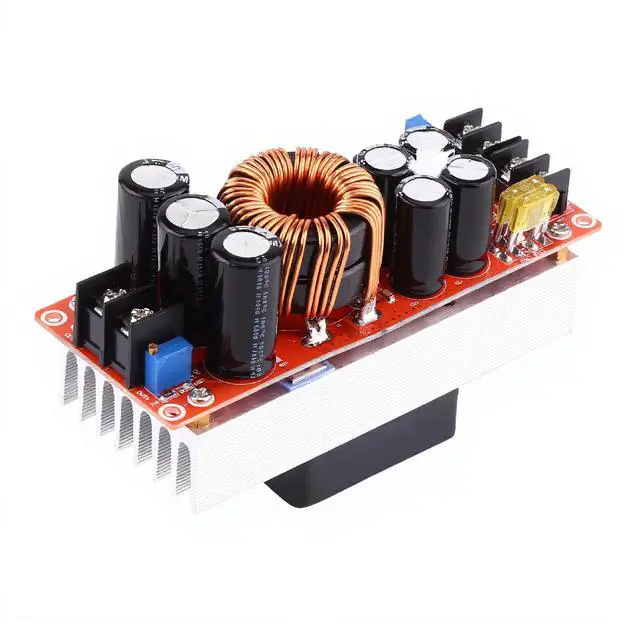

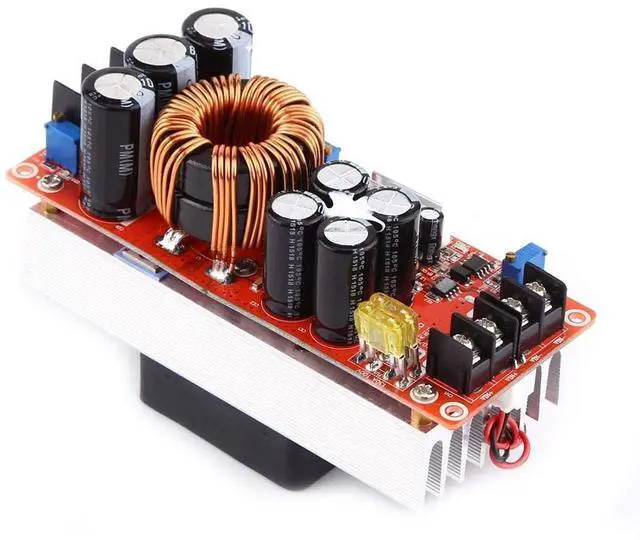

30A 1500w DC DC Boost Module,10 60V to 12 97V Voltage Step Up Converter Boost CC CV Power Supply Module,100V/210A Low Resistance MOS

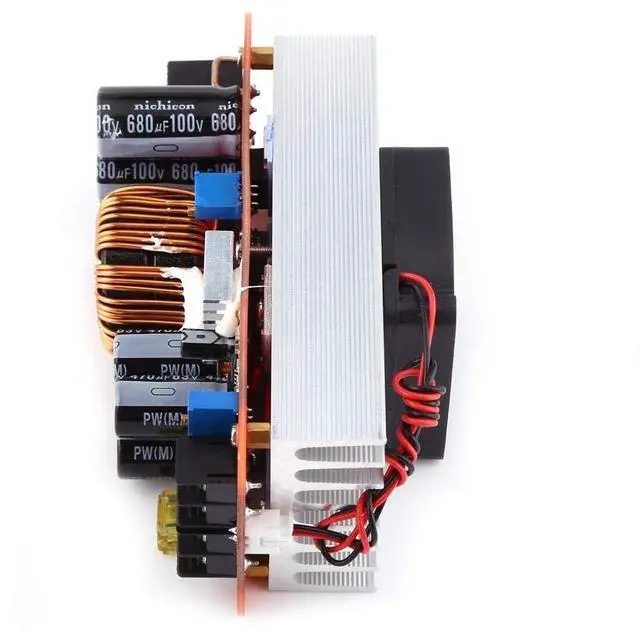

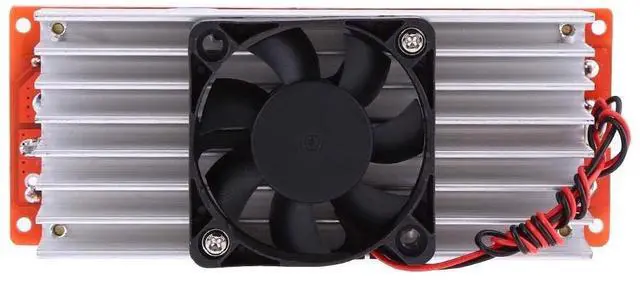

- DIY Step-up ModuleThe diy replacement module is suitable for storage battery, thickened heatsink and intelligent temperature control cooling fan dissipate heat better.
- High Power Current1500W 30A DC-DC Boost Converter step-up power supply module, 100V/210A low resistance MOS with big power and current input, suitable for big power LED, motors.
- Reverse Support reverse input with 150A MOS so there is no worry about wrong input wire and burn out power supply.

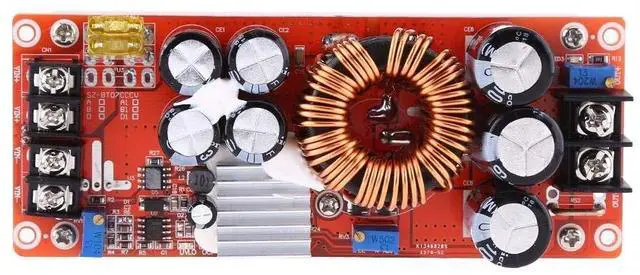

- Multi-layer The power supply module uses double sendust magnets winded with 1.2mm copper wires.Low voltage will module and battery against damage from over-discharge.
- Conversion Efficiency92% to 97% (Efficiency is related to input/output voltage, current and voltage difference. The smaller difference is, the higher efficiency will be).
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
:Type: Non-isolated step-up module (BOOST)
Input Voltage: DC10V to 60V.
Input Current: 30A (input voltage 10V to 30V) 25A (input voltage 31V to 60V)
Quiescent Current: 15mA (will increase when convert 12V to 20V)
Output Voltage: 12V to 90V (adjustable, default is 19V).
Output Current: 20A (related to the input and output voltage difference, the greater voltage difference is, the smaller output current will be. please enhance heat dissipation when current is over 15A)Constant
Current Range: 0.8A to 20A(+/- 0.3A )Reverse
Input: Yes (150A
MOS) Lower Voltage: Yes (V8 to 50V adjustable, self-recovery)Operating
Temperature: - 40 to +85 (if temperature is too high, please
enhance heat dissipation)Frequency: 150KHzShort
Circuit: Yes (input 30A )
Wiring Method: Terminals (please use large current copper wire). Output Power = Input Voltage*Max Current (If input 12V, the
output power=12V*30A = 360W)Size: 130 x 84 x 52mm / 5.11 x 3.3 x 2.04"N ote: 1. Output wiring can not be reversed or short circuit. 2, If the module is connected to inductive load, the minimum input voltage should be higher(e. g. 24V) and maximum output power should be lower(e. g. 500W). 3, If a storage battery, switch power supply, solar panel or electric generator is used as input power source, the low voltage value should be adjusted lower, otherwise it might cause damage.
Package Includes: 1 x Module
