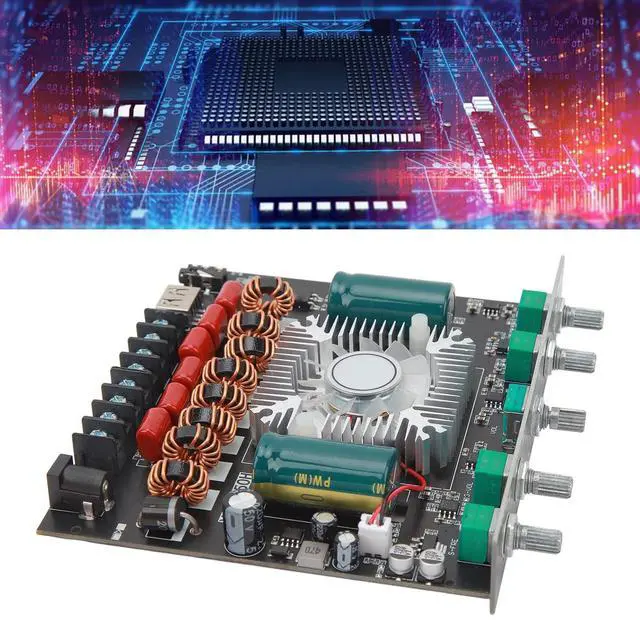

S350H 220Wx2 350W 2.1 Channel Bluetooth Power Amplifier Board, DC 18V38V Bluetooth Speaker with Treble and Bass Control, Audio Amplifier Module for Store, Home, Theater
- TPA3255 HIFI Chip: The YS-S350H power amplifier board uses two TPA3255 power amplifier chips. Support wide voltage input of 1838V, power up to 220W x 2+350W (PMPO).
- Reble And Bass Control: If you are tired of an amplifier with only one volume knob, then you feel right, because you have further requirements for audio. By adjusting the high and low frequency knobs of the YS-S350H power amplifier board, you can make the sound more layered and make the bass more shocking.

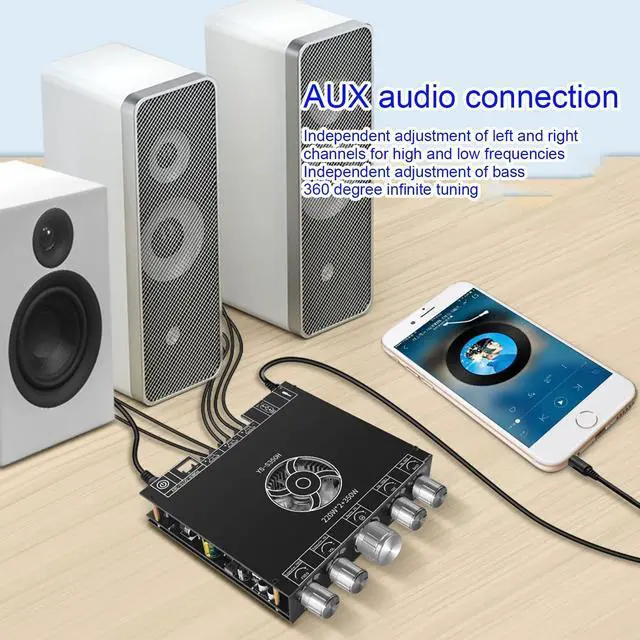

- AUX Audio Connection: Independent adjustment of left and right channels for high and low frequencies. 360 degree infinite tuning.
- High Compatibility: The DC adapters on the market (plug size 5.5mm x 2.1mm) can basically meet the needs of the YS-S350H Bluetooth power amplifier board. If you don't have a DC plug, please don't worry, you can also directly connect the positive and negative poles of the wire to the power socket of the amplifier board.
- Function: YS-S350H Bluetooth power amplifier board has multiple
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification: Item
Type: Bluetooth Power
Amplifier BoardProduct Material: PCB
Weight: Approx. 375g / 13.2 ozBluetooth
Version: 5.1T o
Noise Ratio: 92dBFrequency
Range: 20Hz-20KHzPower
Supply: DC 18-38V/10A
OrAudio Channel: 2.1
ChannelsAudio Output: Left And Right Channels And SubwooferAudio Input: Bluetooth, AUX, USB Drive, USB
Sound CardOutput Power: 2 x 220W (Left And Right Channels), 350W (Bass) Maximum Output Power Of Left And Right Channels: 220W/3? 2--36VDC 175W/4? 2--36VDC 100W/8? 2--36VDC
Maximum
Output Power Of Subwoofer: 355W/2? --36VDC 250W/3? --36VDC 195W/4? --36VDC
Subwoofer Adapter Speaker: 20W-200W/2? -8?
Volume Adjustment: High End Encoder Knob Adjustment, Smooth
TouchMechanism:
Type: Bluetooth Power
Amplifier BoardProduct Material: PCB
Weight: Approx. 375g / 13.2 ozBluetooth
Version: 5.1T o
Noise Ratio: 92dBFrequency
Range: 20Hz-20KHzPower
Supply: DC 18-38V/10A
OrAudio Channel: 2.1
ChannelsAudio Output: Left And Right Channels And SubwooferAudio Input: Bluetooth, AUX, USB Drive, USB
Sound CardOutput Power: 2 x 220W (Left And Right Channels), 350W (Bass) Maximum Output Power Of Left And Right Channels: 220W/3? 2--36VDC 175W/4? 2--36VDC 100W/8? 2--36VDC
Maximum
Output Power Of Subwoofer: 355W/2? --36VDC 250W/3? --36VDC 195W/4? --36VDC
Subwoofer Adapter Speaker: 20W-200W/2? -8?
Volume Adjustment: High End Encoder Knob Adjustment, Smooth
TouchMechanism:
