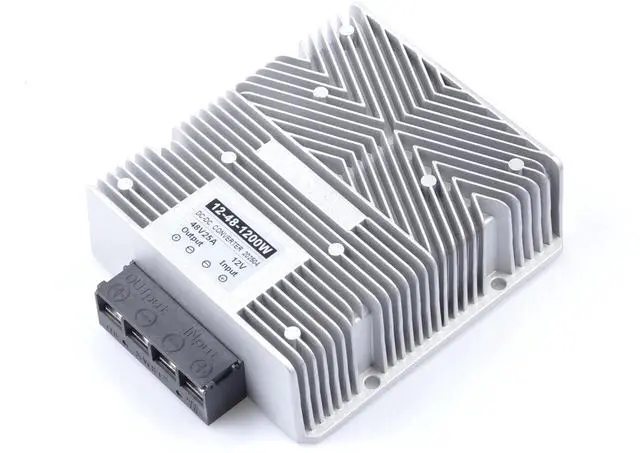

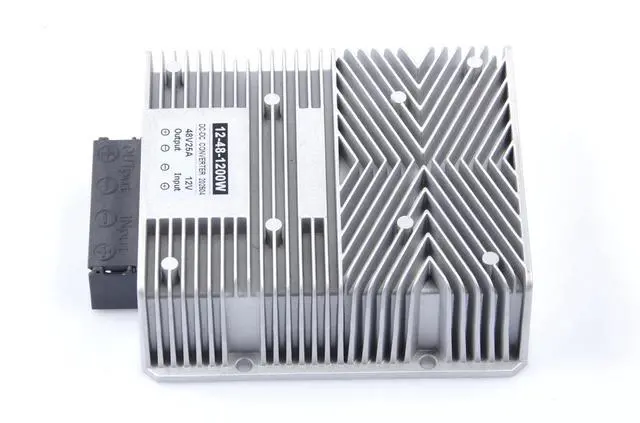

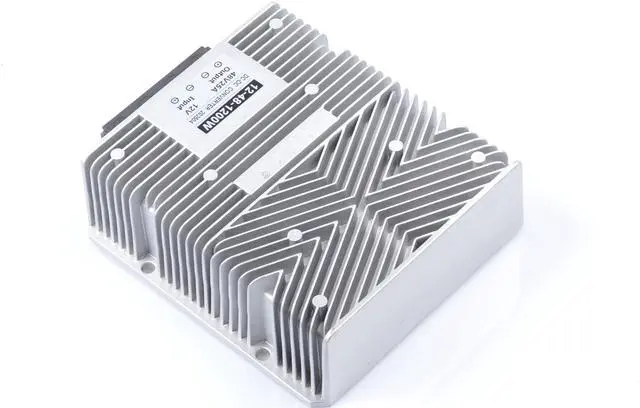

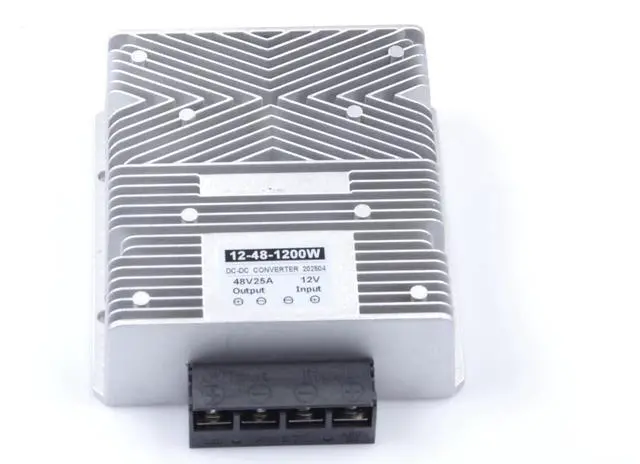

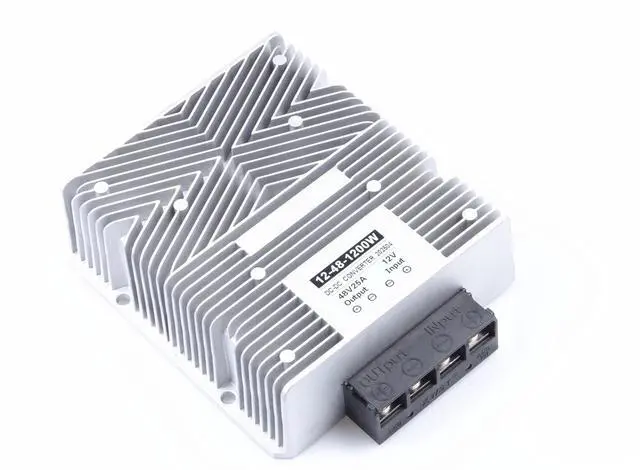

KNACRO Voltage Converter Regulator DC 12V (10V-18V) Step Up to DC 48V 25A 1200W Power Boost Waterproof

1. 100% full power and stable current output, non-isolated module. 2. Waterproof level IP68 and anti-shock protection, Ultra compact size, light weight. 3. Industry grade DC12V to DC 48V step-up converter, efficiency up to 95%. 4. Die-cast aluminum shell, epoxy potting, cooling by free air convection. 5. 1 year warranty, lifetime up to 100, 000 hours. 6.
Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating.

Specifications

: *
Input Rated Voltage: DC 12V*
Input Voltage Range: 10V-18V DC*
Output voltage: DC 48V 25A*
Output Rated Power: 1200W*
Efficiency: 95% (half load); 94% (full load) *
Voltage Regulation: Less Than 1%*
Load Regulation: Less Than 2%*
Ripple (full load test): Less Than 150mV*
No-load Current: 25mA*
Total Size: 145*137*48mm (L*W*H) *
Weight: 1.78K
gPackage included: 1 x DC 12V to DC 48V Voltage Converter DC 12V to DC 48V
Input Voltage: 12V
Output Voltage: DC 48V
Output Current: 25A 1200W 95% conversion efficiencyAdopt Synchronous Rectification Technology to improve conversion efficiency, Maximum
Efficiency: 95%;
Ripple Wave: 800Mv;
Starting delay time: 2S Wide applicationSmart chip provide Over-load/ Over-current/ Over-temperature/ Over-voltage protection. It can be used for trucks, taxi radio, emu, car audio, LCD TV, advertising screen, LED strip lights, monitoring system, motor, solar panel, electronic systems and DIY etc. IP67 Waterproof100% waterproof, anti-dust, anti-shock protection and heat dissipation These voltage converters are excellent power transformers, can work safely and reliable in -30C~80C range. 100% SatisfactionAnd all converters are offered 1 year replacement assurance, lifetime after-sale service, 24H x 7Day customer service support.
