VGA Controller Board 30 Pin eDP for 1920x1080 NV140FHM B156HAN01.1 LP156WF4 NV156FHM N156HGE-EA1 B173HAN01.0 N173HCE E11 E21 E31 LP173WF4 11.6'' 13.3'' 14'' 15.6'' 17.3 inch LCD Screen
- Work for 11.6" 13.3"14"15.6"17.3" 1920X1080 30Pin eDP WLED LCD screen,Input power :12V DC more than 2A ,port size :5.5x2.1mm,Pls prepare power adapter by yourself.
- Compatible screen model no.: N116HSE-EA1 N116HSE-EJ1 N116HSE-EB1 N116HSE-EBC N116HSE-EAC N133HSE-EA1 N133HSE-EA3 N133HSE-EB1 N133HSE-EB3 B140HAN01.0 B140HAN01.1 B140HAN01.2 B140HAN01.3
- B156HAN01.1 B156HAN01.2 B156HTN03.0 LP156WF4-SP N156HGE-EA1 NV156FHM-N31 NV156FHM-N41 LTN156HL01 N173HCE-E31 N173HGE-E11 N173HGE-E21 B173HTN01.0 B173HTN01.1

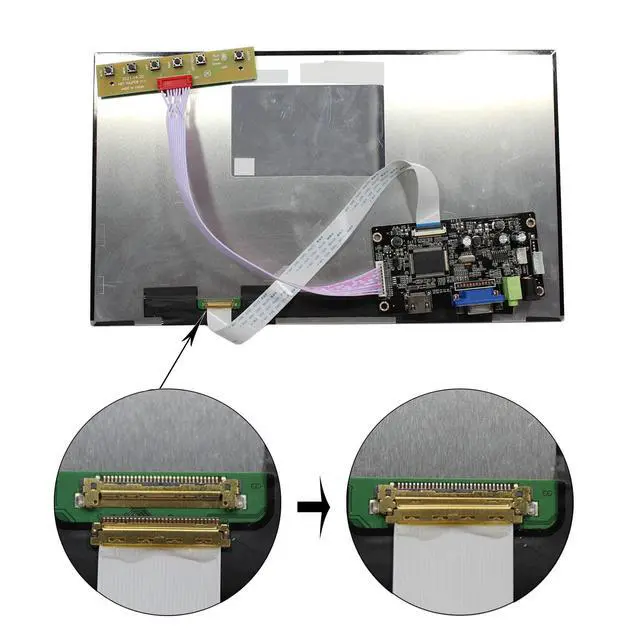

- No need driver installed,directly connecting for the cables and ports according to link picture details ,Power on ,Keyboard LED light become green,Then enter into signal cable ,with correct resolution ,the screen can work well.
- simple Q&A : Black screen :maybe for wrong connecting or no signal enter into screen; White screen: caused by reverse cable connecting with screen port or wrong resolution;So pls double check the cable connecting ,resolution setting,and signal resource e
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

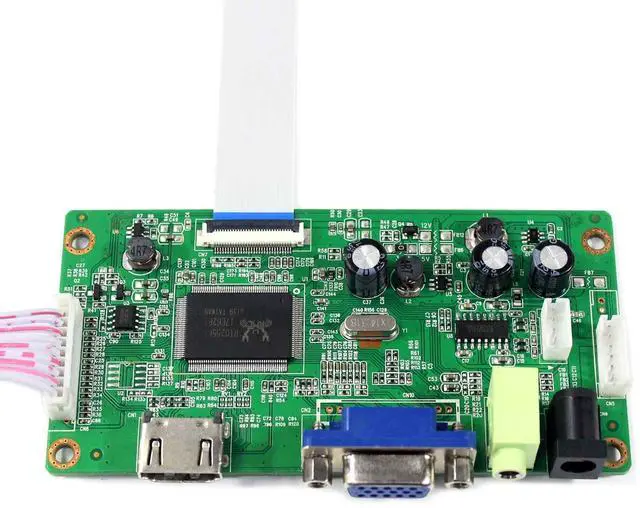

LCD Controller Board: VGA Board Work for 30Pin EDP
LCD ScreenInput Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not Input SignalStandby Model < 0.3WA udio
Input: Earphone
SpeakerAudio Output:
SpeakerOSD: Brightness Contrast VOL+ VOL- Language And So OnLanguage: EnglishBoard
Size: 107mm x 55mm x 16mmCompatible
Work With: 11.6
inch 1920x1080: N116HSE-EA1 N116HSE-EJ1 N116HSE-EB1 N116HSE-EBC N116HSE-EAC 13.3 inch 1920x1080: N133HSE-EA1
N133HSE-EA3 N133HSE-EB1 N133HSE-EB314inch 1920x1080: B140HAN 01.0 B140HAN 01.1 B140HAN 01.2 B140HAN 01.315.
6inch 1920x1080: B156HAN 01.1 B156HAN 01.2 B156HTN 03.0 LP156WF4-SP N156HGE-EA1NV156FHM-N31 NV156FHM-N41 LTN156HL01LTN156HL06-C01 LTN156HL07-401 LTN156HL09-401 LTN156HL02- 20117.3 inch 1920x1080: N173HCE-E31 N173HGE-E11 N173HGE-E21 B173HTN 01.0 B173HTN 01.1LP 173WF4-SPD1

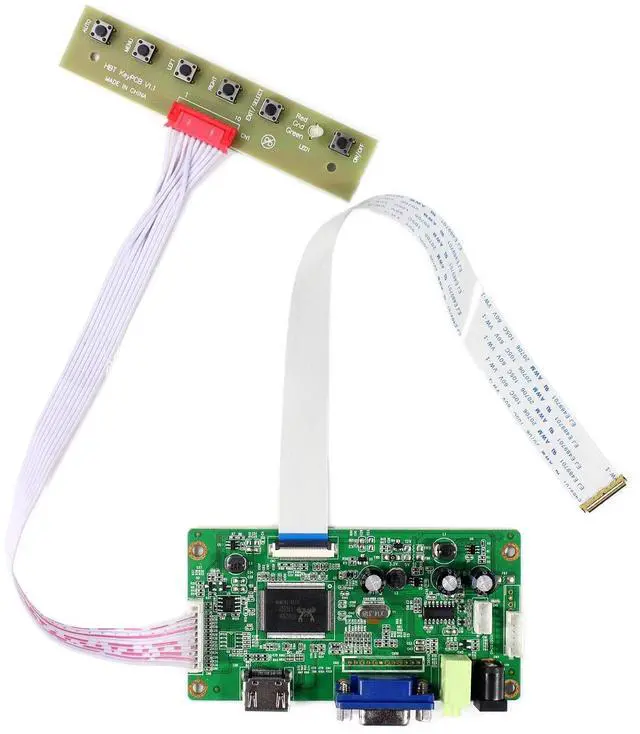

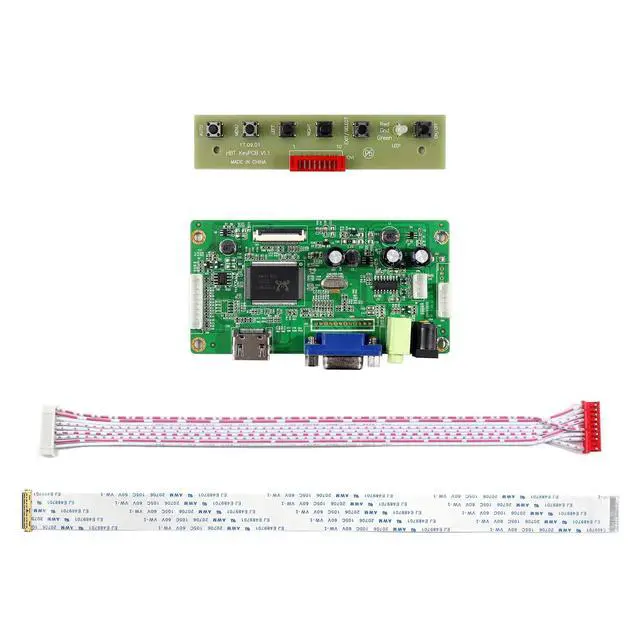

LP173WF4-SPF1 LP173WF4-SPF2LP173WF4-SPF3 LP173WF4-SPF4 LTN173HL01-401Packing list: 1VGA LCD Controller Board VS-RTD2556HV-V11 EDP Inverter Board1 30Pin Signal Cable1 Keyboard With Cable
LCD ScreenInput Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not Input SignalStandby Model < 0.3WA udio
Input: Earphone
SpeakerAudio Output:
SpeakerOSD: Brightness Contrast VOL+ VOL- Language And So OnLanguage: EnglishBoard
Size: 107mm x 55mm x 16mmCompatible
Work With: 11.6
inch 1920x1080: N116HSE-EA1 N116HSE-EJ1 N116HSE-EB1 N116HSE-EBC N116HSE-EAC 13.3 inch 1920x1080: N133HSE-EA1
N133HSE-EA3 N133HSE-EB1 N133HSE-EB314inch 1920x1080: B140HAN 01.0 B140HAN 01.1 B140HAN 01.2 B140HAN 01.315.
6inch 1920x1080: B156HAN 01.1 B156HAN 01.2 B156HTN 03.0 LP156WF4-SP N156HGE-EA1NV156FHM-N31 NV156FHM-N41 LTN156HL01LTN156HL06-C01 LTN156HL07-401 LTN156HL09-401 LTN156HL02- 20117.3 inch 1920x1080: N173HCE-E31 N173HGE-E11 N173HGE-E21 B173HTN 01.0 B173HTN 01.1LP 173WF4-SPD1
LP173WF4-SPF1 LP173WF4-SPF2LP173WF4-SPF3 LP173WF4-SPF4 LTN173HL01-401Packing list: 1VGA LCD Controller Board VS-RTD2556HV-V11 EDP Inverter Board1 30Pin Signal Cable1 Keyboard With Cable
