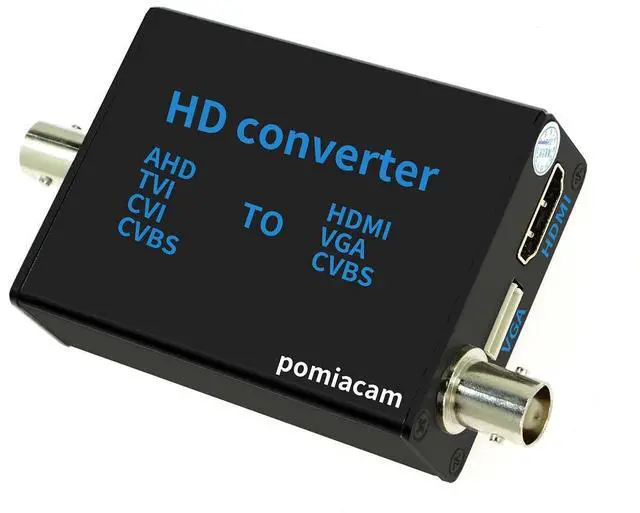

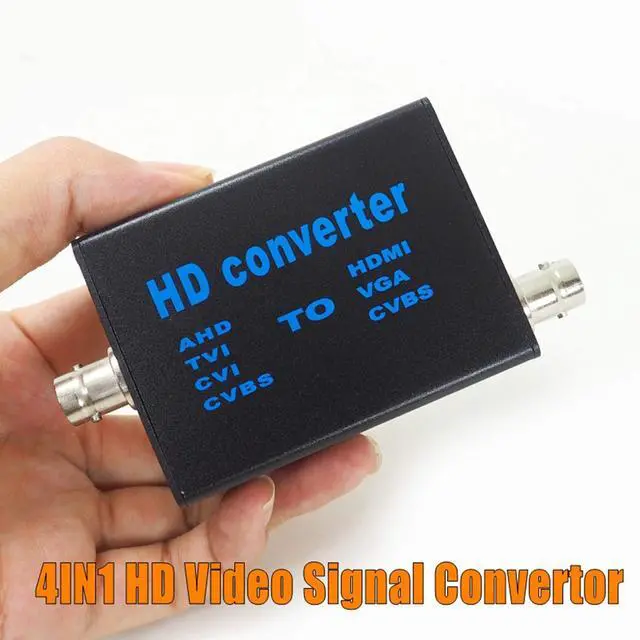

BNC to HDMI Video Signal Converter, 4-in-1 Composite CVBS AHD TVI CVI Adapter Supporting VGA for Camera/DVR/CCTV Security System

AHD/TVI/CVI/CVBS video signal to HDMI/VGA/CVBS convertor This is a 4 in 1 high definition convertor, it convert AHD/TVI/CVI/CVBS signal, then you get the HDMI. this item recognize input automatically. compatible with 1080P, 960P, 720P, 480P input. output support 1080P and 720P. You can shift by button on convertor. MPS wide power 5V-20V design helps widely used different working conditions. ^^ High definition video signal convertor
Front panel instructionPort/Function:
A: Output signal shift /
B: Signal output resolution or TV mode shift /
V-IN: Signal input (AHD TVI CVI CVBS) /
DC: Power input 5V-20V /
Indicator (From left to right): VGA signal, CVBS signal, HDMI signal, Power (Red) ^^ video convertor
Rear panel instructionPort/Function:
V-OUT: CVBS signal output (NCTS or PAL optional) /
VGA: VGA signal output /

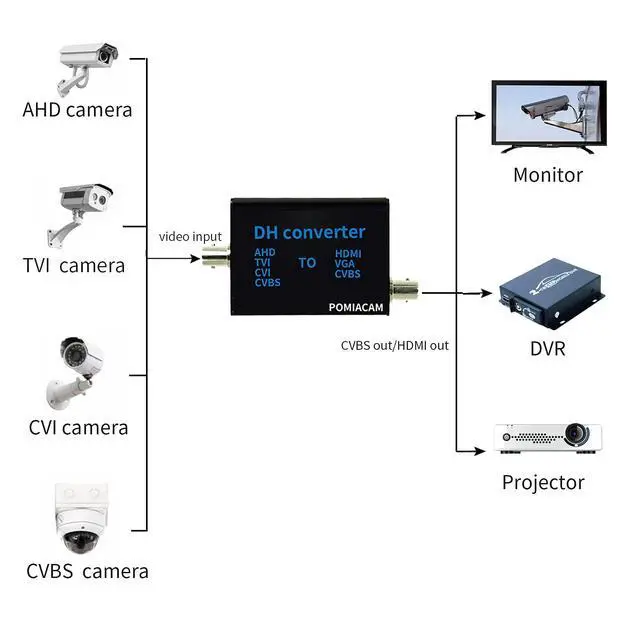

HDMI: HDMI signal output[720P or 1080P optional] ^^ Convertor Signal input it support 1080P/960P/720P AHD, 1080P/960P/720P TVI, 1080P/960P/720P CVI, CVBS Signal, You can connect an AHD camera/TVI camera/CVI camera, then switch to HDMI signal output, connect to the monitor and you can get the camera's video display. ^^ video converter to hdmiThis video signal convertor support 1080P/720P HDMI, VGA, CVBS, you no need the video converter software,
