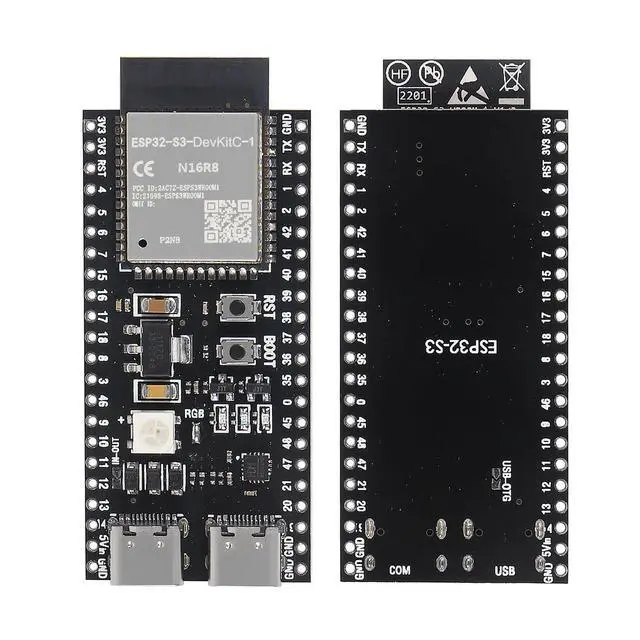

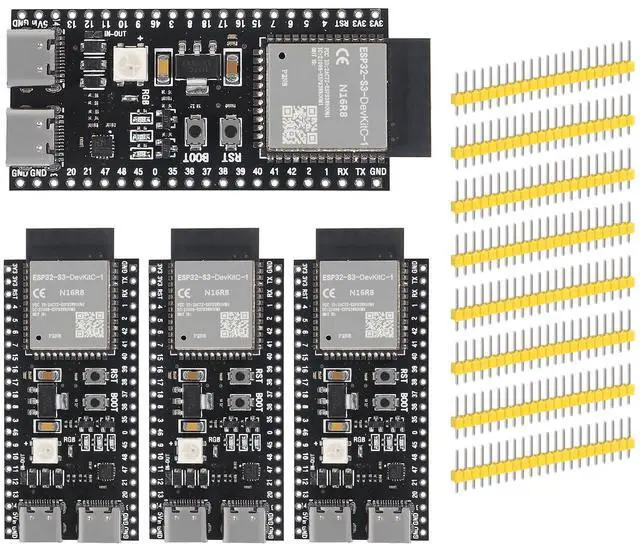

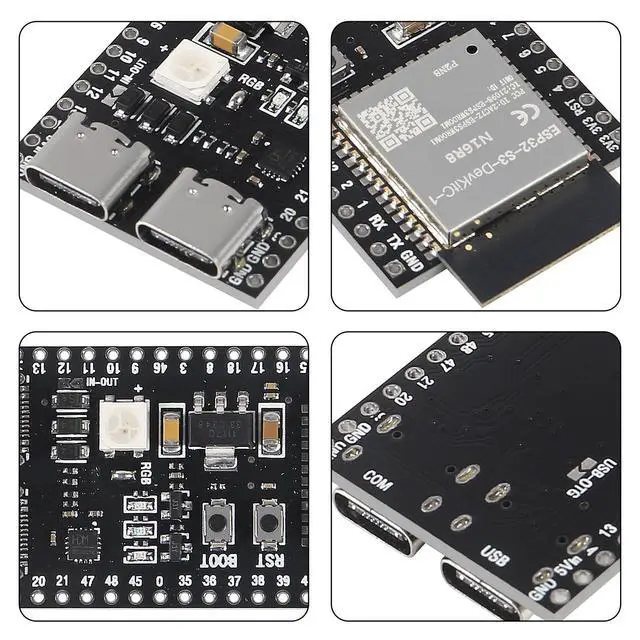

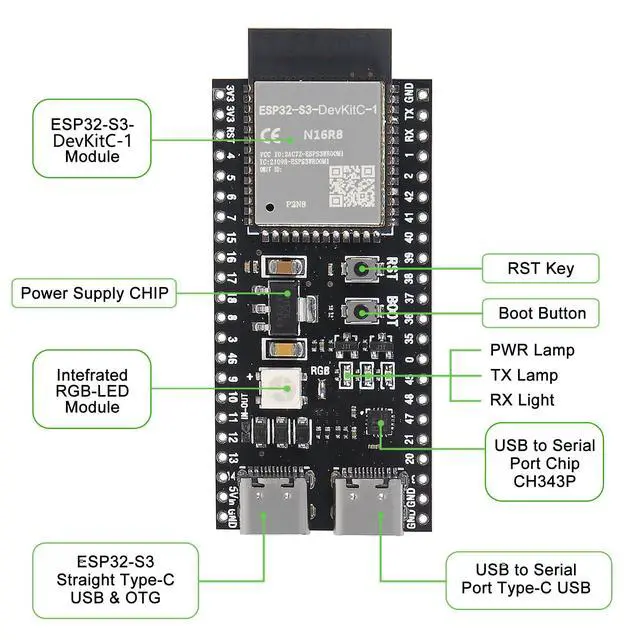

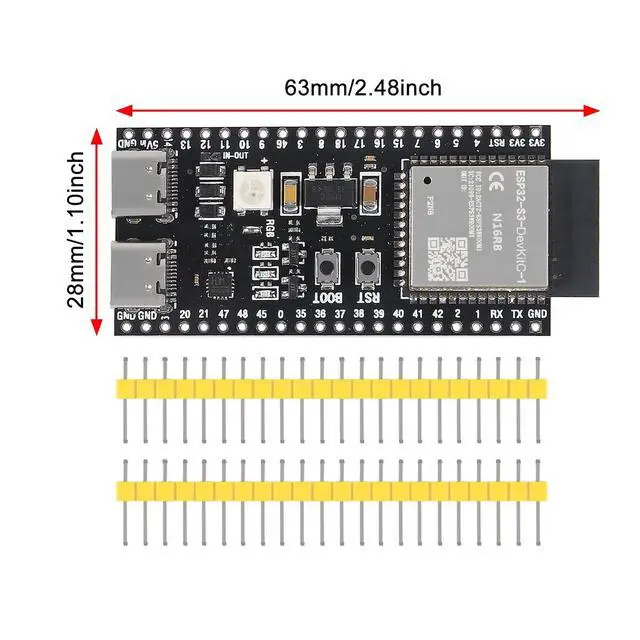

XIITIA 4pcs ESP32-S3-DevKitC-1-N16R8 ESP32-S3 Development Board Wi-Fi + Bluetooth MCU Module Integrates Complete Wi-Fi and BLE Functions for Arduino
- 5V and G (GND) pins; 3V3 and G (GND) pins.
- ESP32 / ESP32-S3 WiFi+Bluetooth Internet Of Things Dual Type-C Development Board Core Board ESP32-S3-DevKit C N16R8 For Arduino.
- ESP32-S3 has a complete Wi-Fi subsystem and a Bluetooth LE subsystem, State-of-the-art power and RF performance.
- USB-to-UART Port and ESP32-S3 USB Port (either one or both), default power supply (recommended).
- The ESP32 -S3 is equipped with 32 bit LX7 dual core processor, with the main frequency up to 240 MHz, built-in 512 KB SRAM (TCM), 45 programmable GPIO pins and rich communication interfaces.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
: Xtensa dual-core 32-bitLX7 CPUFrequency up to 240MHzMemories: 384 KB of ROM512 KB of SRAM16 KB of RTCSRAM8 MB of
PSRAMWorking Voltage: 3V to 3.6VU p to 45 GPIOs2*12-bit ADC (up to 20 channels) Extended
Temperature Range: -40 to +65Security 4096 bit OTP, AES, SHA, RSA, ECC, RNGSecure Boot, Flash Encryption, Digital signature, HMAC
moduleInterfaces: 2 I2C interfaces2 I2s interface4 SPI interfaces3 UART interfaces1 USB OTG interface
