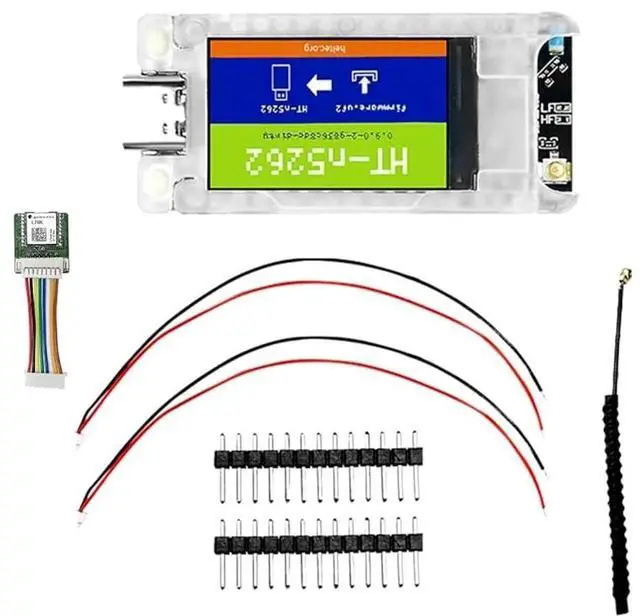

MESHYEAOFAH Meshtastic T114 V2 Development Board with GPS - SX1262 LoRa nRF52840 Bluetooth 5.0 Ultra-Low 11uA Deep Sleep Power, Compatible with Meshcore LoRaWAN and Arduino for Long-range Off-gr
- ULTRA-LOW POWER FOR OFF-GRID LONGEVITY Engineered for extreme efficiency, the Heltec T114 consumes only 11A in deep sleep mode. Unlike standard LoRa nodes that drain batteries quickly, this Mesh Node T114 V2 ensures months of operation in remote environments, making it the ideal choice for solar-powered Meshtastic networks and long-term field deployments.
- READY FOR MESHTASTIC & OPEN-SOURCE Fully compatible with Meshtastic and Meshcore, the T114 V2 comes with comprehensive Heltec libraries for rapid prototyping. Whether you are building a smart agriculture sensor network or an emergency communication node, this all-in-one toolkit provides the reliability and flexibility required for professional-grade LPWAN solutions.
- DUAL-CORE WIRELESS PERFORMANCE Powered by the Nordic nRF52840 (Bluetooth 5.0) and Semtech SX1262 (LoRa) chipset, this board supports both LoRaWAN and Meshtastic protocols. Achieve long-range communication with low-latency Bluetooth mesh networking, providing a
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Unlock Professional-Grade Long-Range Connectivity with Heltec Mesh Node T114 V2The Mesh Node T114 V2 is a high-performance development board specifically designed for the next generation of IoT enthusiasts and engineers. By combining the low-power nRF52840 MCU with the high-sensitivity SX1262 LoRa chipset, this board delivers unmatched reliability for Meshtastic, LoRaWAN, and custom wireless protocols.
Technical
MCU: Nordic nRF52840 (Supports Bluetooth 5.0 )
LoRa Chipset: Semtech
SX1262 Display: 1.14" TFT-LCD (135x240 RGB, 262K
Colors) Positioning: GNSS (GPS, GLONASS, BeiDou, Galileo)
Power Consumption: 11A in Deep Sleep Mode
Power Input: 5V USB-C, Lithium Battery (SH 1.25 *2), Solar Panel (5V- 6.5V )
Operating Temp: -20 to 70 Why Choose the T114 V2? Most development boards struggle with power management in the field. The T114 V2 addresses this with a dedicated low-power circuit design, ensuring your off-grid nodes stay online longer. The vibrant TFT display allows for immediate feedback during deployment, while the integrated GNSS eliminates the need for bulky external modules.
Frequently Asked Questions:
Q: How do I power the device in remote areas?
A: The T114 V2 supports direct solar panel connection (recommended 5V). Combined with its 11A sleep current, it can operate indefinitely with a small solar setup.
Q: Is it compatible with Arduino?
A: Yes, it is fully compatible with Arduino and PlatformIO environments, and we provide a complete LoRaWAN protocol framework for nRF52.
Q: What is the maximum battery size supported by the casing?
A: The default casing supports batteries up to 42 * 28 * 11mm.
Technical
Specifications
:MCU: Nordic nRF52840 (Supports Bluetooth 5.0 )
LoRa Chipset: Semtech
SX1262 Display: 1.14" TFT-LCD (135x240 RGB, 262K
Colors) Positioning: GNSS (GPS, GLONASS, BeiDou, Galileo)
Power Consumption: 11A in Deep Sleep Mode
Power Input: 5V USB-C, Lithium Battery (SH 1.25 *2), Solar Panel (5V- 6.5V )
Operating Temp: -20 to 70 Why Choose the T114 V2? Most development boards struggle with power management in the field. The T114 V2 addresses this with a dedicated low-power circuit design, ensuring your off-grid nodes stay online longer. The vibrant TFT display allows for immediate feedback during deployment, while the integrated GNSS eliminates the need for bulky external modules.
Frequently Asked Questions:
Q: How do I power the device in remote areas?
A: The T114 V2 supports direct solar panel connection (recommended 5V). Combined with its 11A sleep current, it can operate indefinitely with a small solar setup.
Q: Is it compatible with Arduino?
A: Yes, it is fully compatible with Arduino and PlatformIO environments, and we provide a complete LoRaWAN protocol framework for nRF52.
Q: What is the maximum battery size supported by the casing?
A: The default casing supports batteries up to 42 * 28 * 11mm.
