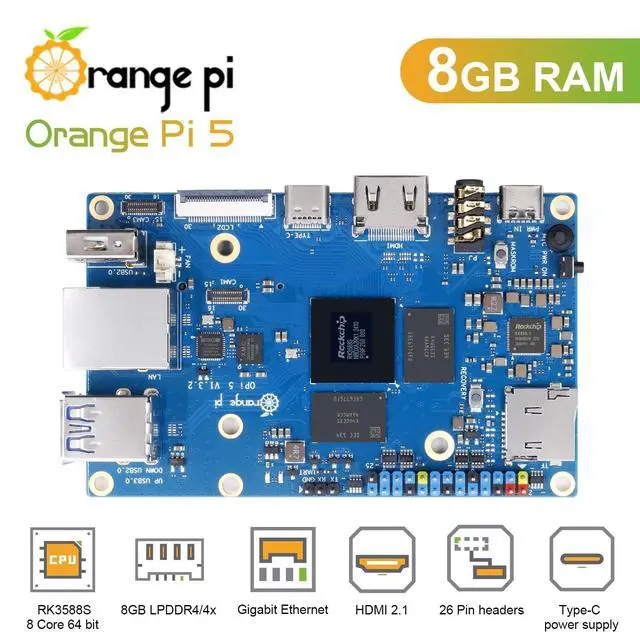

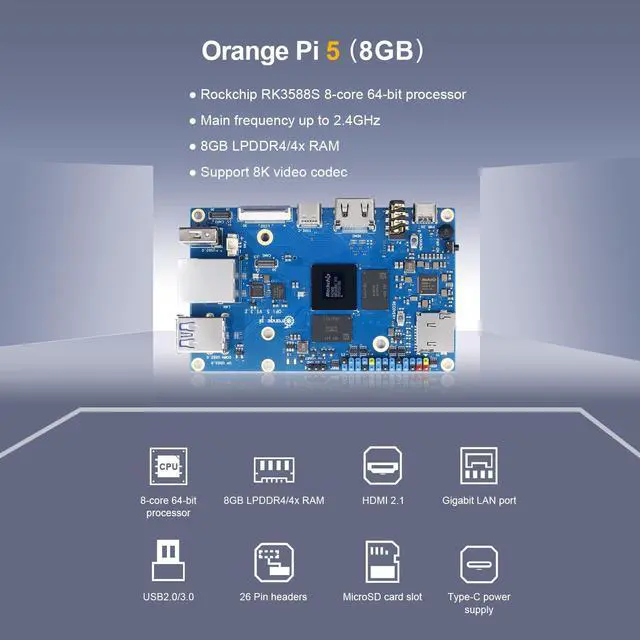

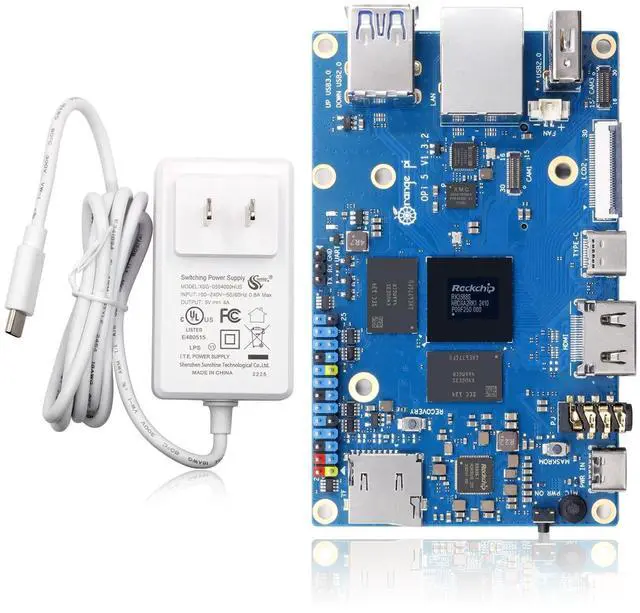

Orange Pi 5 4GB/8GB/16GB LPDDR4/4X Rockchip RK3588S 8-Core 64 Bit Single Board Computer, Development Board Run Orange Pi/Linux/Ubuntu/Debian/Android OS (8GB+Power Supply)
- [High Performance]: Orange Pi 5 single board computer uses Rockchip RK3588S new generation 8-core (4-core A76 and 4-core A55) 64-bit processor with 8nm process design. Main frequency up to 2.4GHz, integrated ARM Mali-G610 GPU, embedded high-performance 3D/2D image acceleration module, built-in AI accelerator NPU with up to 6 TOPS, supports INT4/INT8/INT16 mixed operation, with 4GB/8GB/16GB/32GB (LPDDR4/4x), and up to 8K display processing capability.
- [8k Video Codec Support]: Orange Pi 5 now has the capability to support 8K video playback at 60fps. With its powerful video codec, it enhances image clarity and provides a higher level of detail, resulting in an enhanced user experience.
- [Abundant Interfaces]: The Orange Pi 5 development board is equipped with a wide range of interfaces to meet various needs. It includes HDMI 2.1 output, a 26 PIN expansion port, M.2 PCIe 2.0, USB Type-C port, Gigabit LAN port, 2 USB 2.0 ports, and 1 USB 3.0 port, among others. Orange Pi 5 can be util
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Hardware SpecificationSoC: Rockchip RK3588S (8nm LP process)
CPU: 8-core 64-bit processor Big.
Little Architecture: 4xCortex-A76 and 4xCortex-A55, Big core cluster is 2.4GH z, and Little core cluster is 1.8GH z frequency.
GPU: Arm Mali-G610 MP4 Odin GPU Compatible with OpenGL ES 1.1 / 2.0 / 3.2, OpenCL 2.2 and Vulkan 1.2 3D graphics engine and 2D graphics engineNPU: Built-in AI accelerator NPU with up to 6 TOPS, supports
INT4/INT8/INT16 mixed operationRAM:
4GB/8GB/16GB(LPDDR4/4X)Memory: QSPI Nor FLASH 16MB MicroSD (TF) Card Slot M.
2 M-KEY SocketUSB: USB 3.0 1USB 2.0 2Type-C (USB 3.1 ) 1Video
Output: HDMI 2.1, up to 8K @60Hz DP 1.4 (DisplayPort), DP 1.4 and USB 3.1 ports are multiplexed, and the port is shared with Type-C 2 * MIPI D-PHY TX 4Lane, configurable
up to 4K @60HzCamera: MIPI CSI 4Lane 2 *
MIPI D-PHY RX 4LaneAudio:
CODEC: ES8388 3.5 mm headphone jack audio input/output
Input: Onboard MIC HDMI 2.1 eARC
Ethernet: 10/100/1000Mbps
EthernetExpansion Port: For extending UART, PWM, I2C, SPI, CAN and GPIO interfaces. M. 2 M-KEY
Socket Expansion Slot: Support PCIe NVMe SSD
Support custom
PCIe Wi-Fi6+BT 5.0 moduleButton: 1MaskROM key1Recovery key1On/Off keyPower
Source: Support Type-C power supply, 5V
@ 4ALED: Power
indicator: red
Status indicator:
greenDebugging: 3 Pin debug serial port (UART)
Supported OS: Orangepi OS (Droid), Orangepi OS (Arch), Ubuntu, Debian, Android12
CPU: 8-core 64-bit processor Big.
Little Architecture: 4xCortex-A76 and 4xCortex-A55, Big core cluster is 2.4GH z, and Little core cluster is 1.8GH z frequency.
GPU: Arm Mali-G610 MP4 Odin GPU Compatible with OpenGL ES 1.1 / 2.0 / 3.2, OpenCL 2.2 and Vulkan 1.2 3D graphics engine and 2D graphics engineNPU: Built-in AI accelerator NPU with up to 6 TOPS, supports
INT4/INT8/INT16 mixed operationRAM:
4GB/8GB/16GB(LPDDR4/4X)Memory: QSPI Nor FLASH 16MB MicroSD (TF) Card Slot M.
2 M-KEY SocketUSB: USB 3.0 1USB 2.0 2Type-C (USB 3.1 ) 1Video
Output: HDMI 2.1, up to 8K @60Hz DP 1.4 (DisplayPort), DP 1.4 and USB 3.1 ports are multiplexed, and the port is shared with Type-C 2 * MIPI D-PHY TX 4Lane, configurable
up to 4K @60HzCamera: MIPI CSI 4Lane 2 *
MIPI D-PHY RX 4LaneAudio:
CODEC: ES8388 3.5 mm headphone jack audio input/output
Input: Onboard MIC HDMI 2.1 eARC
Ethernet: 10/100/1000Mbps
EthernetExpansion Port: For extending UART, PWM, I2C, SPI, CAN and GPIO interfaces. M. 2 M-KEY
Socket Expansion Slot: Support PCIe NVMe SSD
Support custom
PCIe Wi-Fi6+BT 5.0 moduleButton: 1MaskROM key1Recovery key1On/Off keyPower
Source: Support Type-C power supply, 5V
@ 4ALED: Power
indicator: red
Status indicator:
greenDebugging: 3 Pin debug serial port (UART)
Supported OS: Orangepi OS (Droid), Orangepi OS (Arch), Ubuntu, Debian, Android12
