    AOICRIE 2pcs 3.5" inch ESP32 Display ESP32 Development Board 3.5" LCD Display WiFi Bluetooth Resistive Touch Screen 320x480 Smart Display TFT LCD Module ST7796 Driver

    Be the first to review this product...
    • ESP32 Display Support: 1. UART/SPI/I2C/PWM/ADC/DAC and other interfaces. 2. OV2640 and OV7670 cameras, built-in flash. 3.Picture WiFI upload. 4. TF card. 5. Multiple sleep modes. 6. Embedded Lwip and FreeRTOS. 7. STA/AP/STA+AP working mode. 8. Smart Config. 9.AirKiss one-click network configuration. 10. Secondary development.
    • 3.5'' Touch Screen ESP32 Display: The ESP32 touchscreen integrates a 3.5-inch TFT LCD resistive touchscreen featuring 480320 resolution, supports 16-bit RGB 65K color display, rich colors, with resistive touch function.

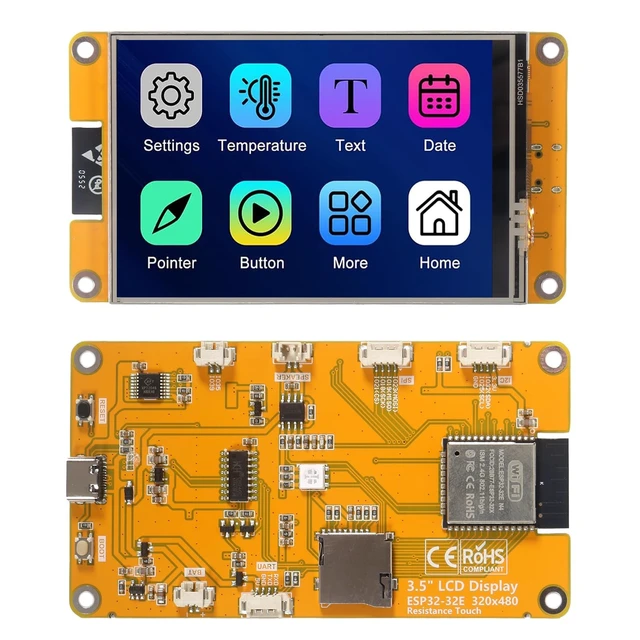

    • 3.5 ESP32 Display Multi-function: ESP32 development board is based on the ESP32-32E module,dual-core MCU, integrated Wi-Fi and Bluetooth, main frequency up to 240MHz, memory of 520KB SRAM and 448KB ROM, 4MB flash memory. It integrates a wealth of resource peripherals, including high-speed SDIO, SPI, UART, and other functionalities.

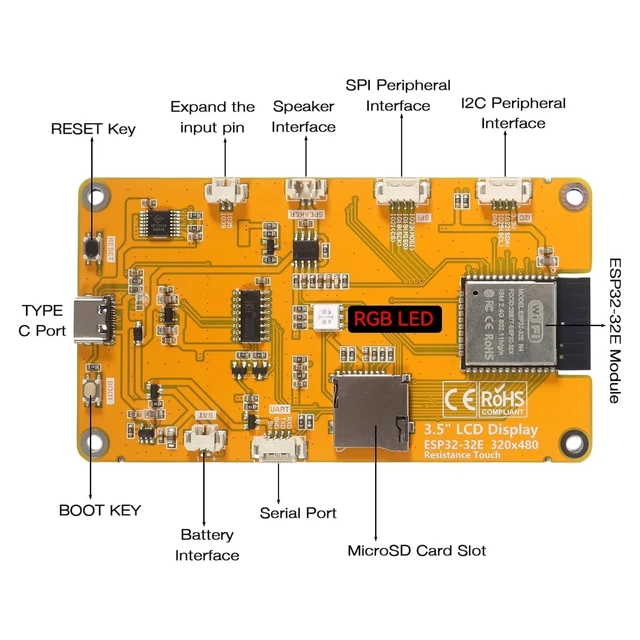

    • ESP32 Screen: The cheap yellow display board features a TF card slot on the back, multiple peripheral/IO inte
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI mode will help you find out quickly.

    Try me now
    3.5 '' 320x480
    Touch Screen ESP32 DisplaySpecifications:
    Model:
    ESP32-32ESize: 3.5
    InchType: TFT
    Driver Chip:
    ST7796Touch:
    ResistiveResolution: 320*480 (Pixel)
    Display color: RGB 65K colorRAM internal 520KBEffective
    Display Area: 55.2 *85 (mm)
    Module Size: 55.34 * 101.5 (mm)
    View: >60Operating
    Voltage: 5VRich
    Interfaces: SPI, UART, micro TFPower
    Supply Interface: TYPE-CPower
    Consumption: About

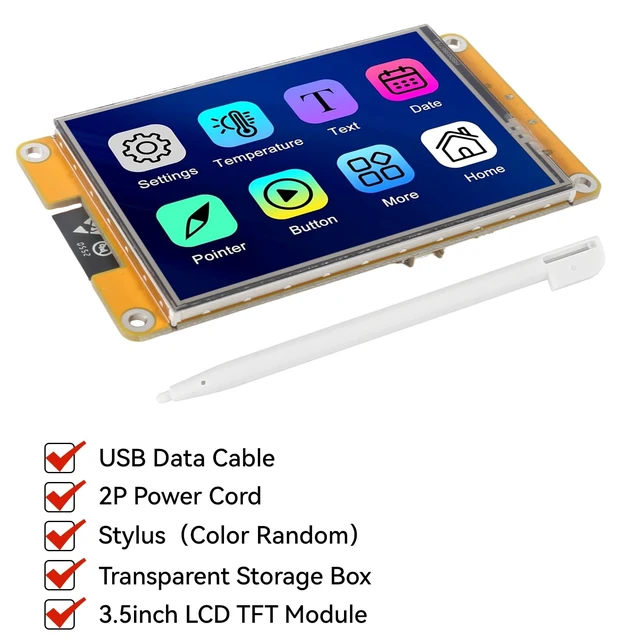

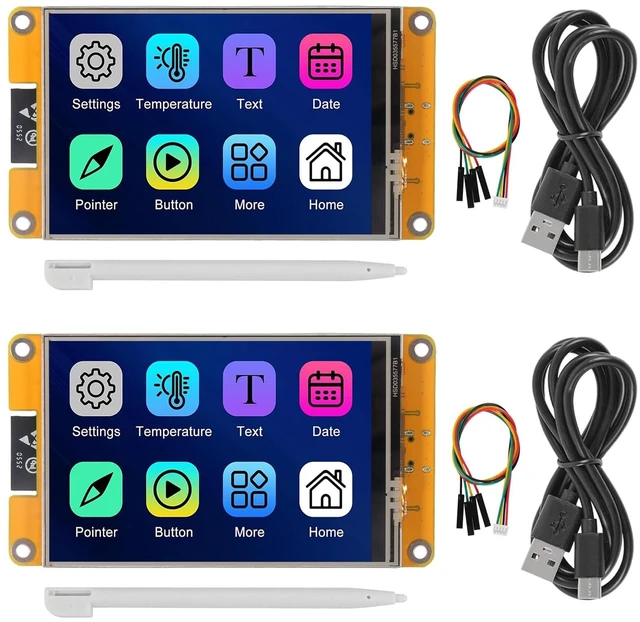

    115mAPackage includes: 2 x 3.5 '' ESP32 Dispaly Module2 x USB Cable2 x Touch Pen2 x 4 Pin Connector Cable2 x Packaging Box for Display
