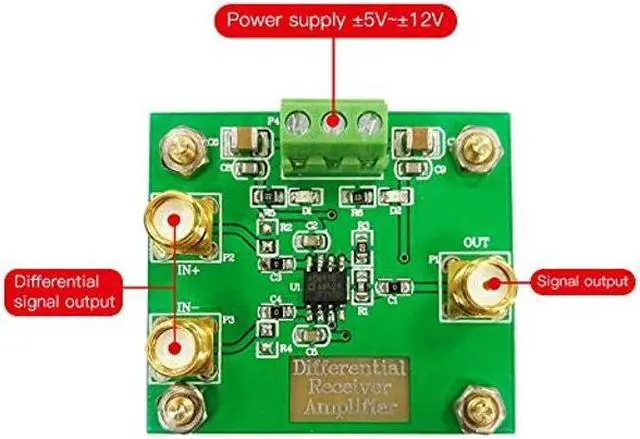

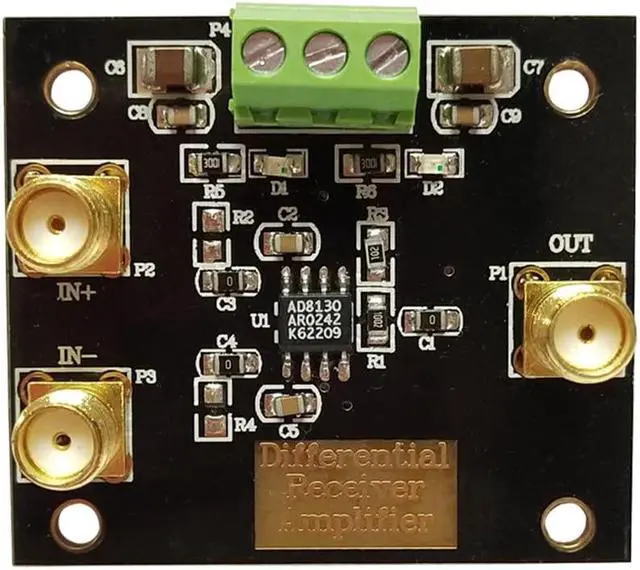

Taidacent AD8130 Differential Receiver Amplifier Module Differential to Single-ended High Common-mode Rejection Ratio Low Noise Low Distortion

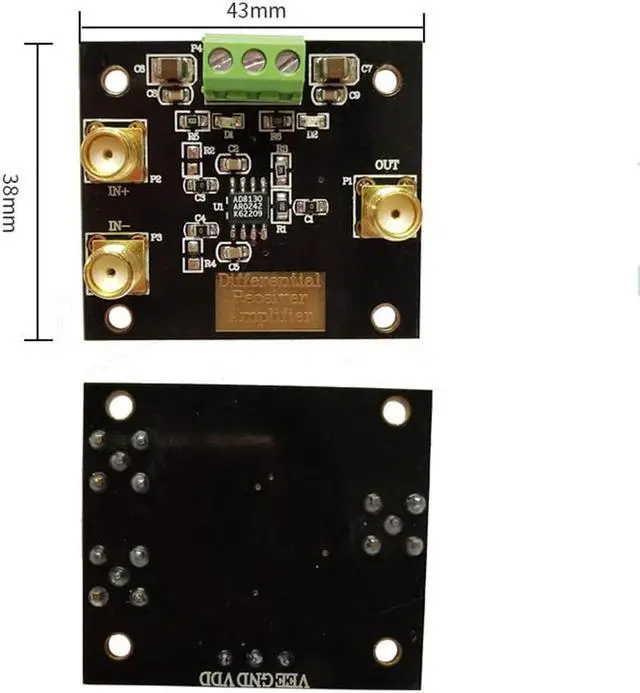

- Name: AD8130 Differential Amplifier Size: 43mm X 38mm Supply voltage range: +-5V~+-12V
- The differential-to-single-ended amplifier, which has a 270-MHz bandwidth and a very high common-mode rejection ratio (CMRR) at high frequencies, can also be effectively used as a high-speed instrumentation amplifier or to convert a differential signal to a single-ended signal.
- Differential amplifiers can process single-ended inputs as interactive differential outputs or treat differential inputs as differential outputs. These amplifiers have two independent feedback loops that control the differential and common-film output voltages, respectively.
- Chip features 1. High speed AD8130: 270 MHz, 1090 V/us (G= +1) AD8129: 200 MHz, 1060 V/us (G= +10) 2. High Common Mode Rejection Ratio (CMRR) 94 dB (minimum, DCE100 kHz) 80 dB (minimum, 2 MHz) 70 dB (10 MHz) 3. High input impedance: 1 MQ differential 4. Low noise AD8130: 12.5 nV/Hz AD8129: 4.5 nV/vHz
- 5. Input common mode range: +-10.5V 6
+
+
