A Pair of Gigabit Ethernet Single-Mode SC Fiber Bidi Media Converter, Built-in BiDi SFP B LX Fiber Module, 1310nm/1550nm, SMF, up to 20-KM, SC Fiber to 10/100/1000Base-TX (UTP/STP/Cat5e/Cat6 RJ45)

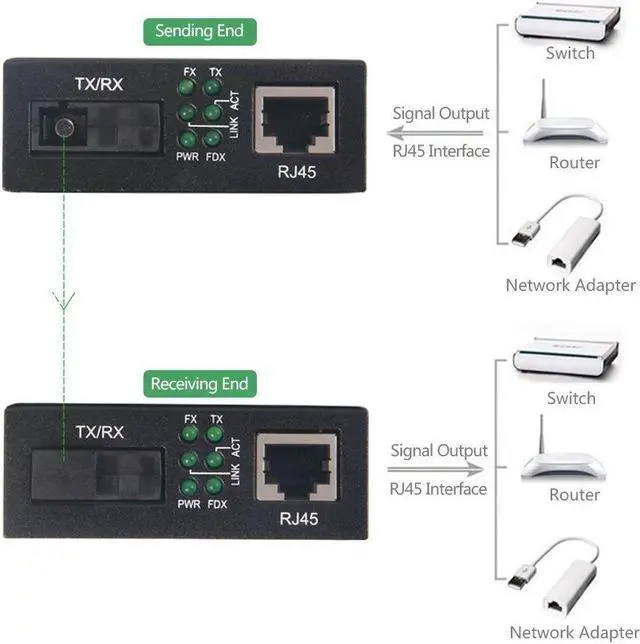

- Seamless Conversion of SC Fiber to Copper - This fiber optic to ethernet media converter is built-in single mode Bidi SFP LX Modules, which enables you to convert 1000BASE-LX Simplex SC fiber to 10/100/1000 Base-T RJ-45 copper media or vice versa.
- Extend Transmission Distance - By using this ethernet fiber media converter, you can easily extend link distance up to 20 kilometers via OS1/OS2 single mode fiber (SMF, SC, Simplex).
- Plug and Play - No software installation or configuration required. Hot-swappable design makes this ethernet fiber converter easy to install and troubleshoot.
- Reliable Auto-Negotiation Gigabit Connection - 10/100/1000Mbps Auto-Negotiation RJ45 Port supports Auto-MDI/MDIX Crossover and Half-Duplex / Full-Duplex Transfer Mode, bridging different network speeds and devices to a Gigabit fiber network.
- What You Get - A pair of Gigabit Ethernet to SC fiber media converter; 2* Power Supply (UL Certified, 5V-1A); 3-year Warranty, Free Lifelong Techn
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

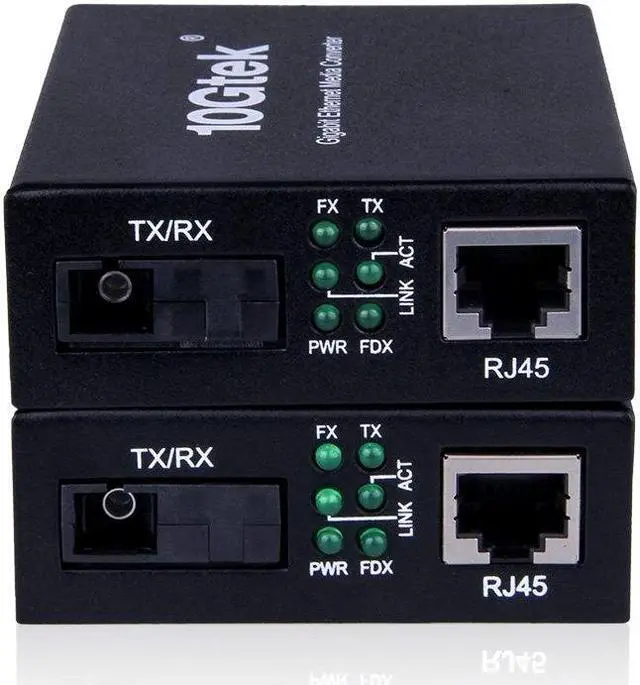

Main Features: Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3z, IEEE802.3ab, IEEE 802.3x Auto negotiation function allows UTP port to auto select 10M, 100M or 1000M Ethernet port supports MDI/MDI-X auto crossover Extends distances up to 20km (single mode fiber) Auto MDI/MDI-X support on RJ-45 port Support Full Duplex and Half Duplex Status LED's for TX,FX LINK/ACT, POWER,FDX to easily monitor network status 1Mbit RAM for data buffer Supports jumbo frame size 9K bytes Optical Port: 1310nm wavelength Connectors: SC Bi-Directional connector Ethernet Port: Connectors: RJ-45 Connector LED Indicators: FX, TX, Link/Act(Left/Right), FDX, PWR FX: Light on when fiber speed is 1000Mbps, else light off TX: Light on when TP speed is 1000Mbps,else light off Link/ACT: Left side is indicate for fiber port link/act and right side for TP,light flashing when data transmitting and receiving FDX: Light on when TP full-duplex mode is active,light off when TP half-duplex mode is active PWR: Light on when DC power on, else light off Specifications: Output voltage: 5VDC 1.0A Power dissipation: <=3 watts Housing: Metal enclosure Dimensions: 93 x 71 x 27mm(D x W x H) Weight: 0.5kg Operating Temperature: 0degC to 60degC Storage Temperature: -20degC to 70degC Warranty: 2 years
