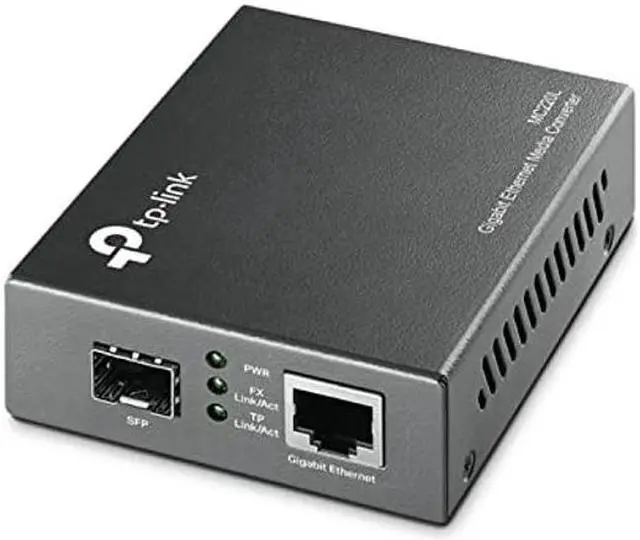

TP-Link MC220L | Gigabit SFP to RJ45 Fiber Media Converter | Fiber to Ethernet Converter | Plug and Play | Durable Metal Casing | Versatile Compatibility | Auto-Negotiation | UL Certified

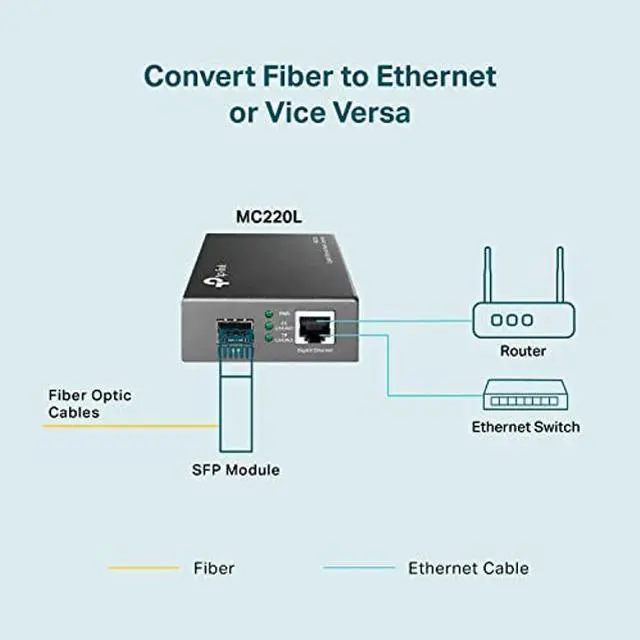

- [(Convert Fiber to Ethernet)] Designed to convert 1000BASE-SX/LX fiber to 1000Base-T copper media or vice versa.
- [(Versatile Compatibility)] Works with both single-mode and multi-mode fiber SFP modules and is fully compatible with 10/100/1000 Base-T Ethernet connections.
- [(Easy to Use)] Plug and play with no software installation or configuration needed.

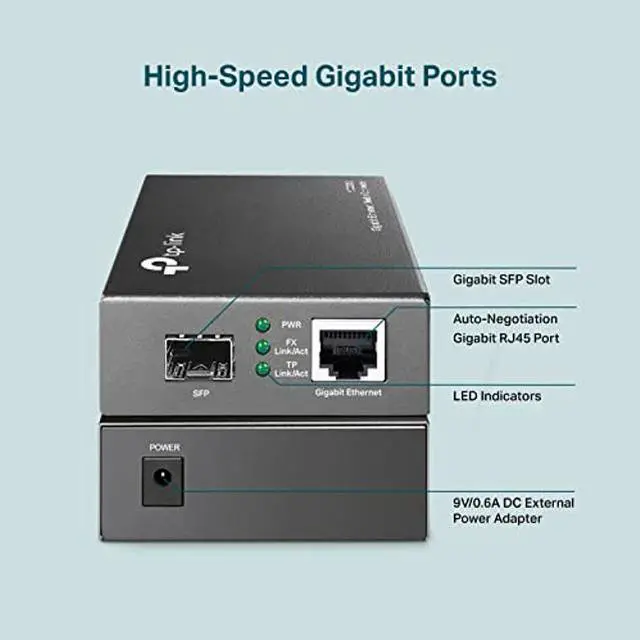

- [(Auto-Negotiation Gigabit Connection)] Auto-negotiation RJ45 port supports Half-Duplex/Full-Duplex transfer mode and auto-MDI/MDIX.
- [(Long-Range Transmission)] When used with different types of SFP modules, the Hot-Swappable FX Port extends fiber distance up to 12.4miles (20km) for Single-Mode transmission and 1,800 feet (550m) for Multi-Mode transmission.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

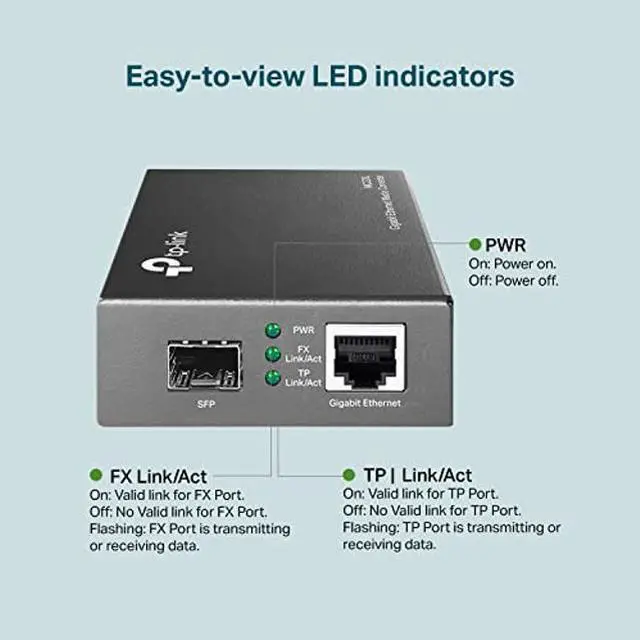

The MC220L is a media converter designed to convert 1000BASE-SX/LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE 802.3 ab 1000Base-T and IEEE 802.3 z 1000Base-SX/LX/LH standards, the MC220L is designed for use with multi-mode/single-mode fiber cable utilizing the SC/LC-Type connector. It works at 850nm on both transmitting and receiving data when adopting multi-mode fiber and 1310nm on both transmitting and receiving data when adopting single-mode. Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK's 19"system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs.
The MC220L will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers( 0.342 miles) and 10 kilometers ( 6.2 miles) when utilizing single-mode fiber.
Protocols Supported: IEEE 802.3 ab IEEE 802.3 z IEEE 802.3 x
The MC220L will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers( 0.342 miles) and 10 kilometers ( 6.2 miles) when utilizing single-mode fiber.
Protocols Supported: IEEE 802.3 ab IEEE 802.3 z IEEE 802.3 x
