TP-Link TL-SF1008P, 8 Port 10/100Mbps PoE Switch, 4 PoE+ Ports @66W, Desktop, Plug & Play, Sturdy Metal Casing, Fanless, Extend & Priority Mode, PoE Auto Recovery
- - : 4x PoEplus (802.3at/af) 10/100Mbps RJ45 ports providing up to 30W per port and total PoE power budget of 66W, together w/ 1x Non-PoE 10/100 Mbps Port for stable connections.
- : Easy setup with no software installation or configuration needed.

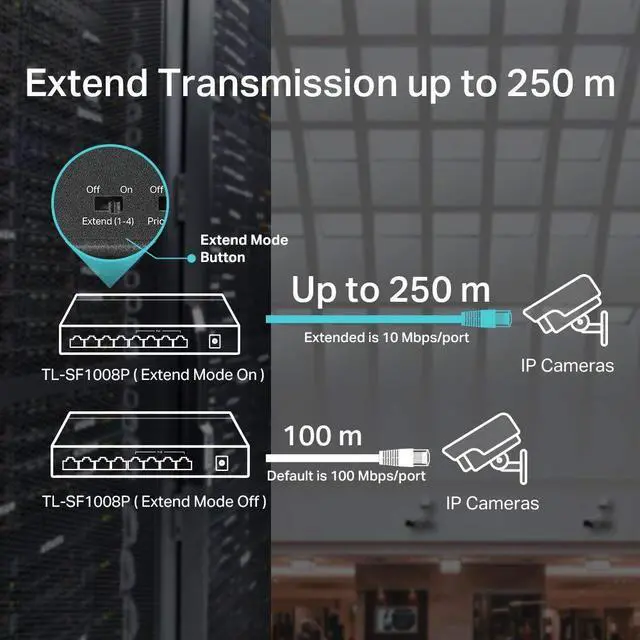

- : Up to 250m data and power PoE transmission range under Extend Mode, ideal for surveillance system (Speed will be downgraded to 10 Mbps).
- : Support Priority mode for ports 1-2, guarantee high quality of video or voice data transmission.
- : Automatically detects and reboots the dropped or unresponsive PoE-powered devices without the need for manual monitoring or resetting.
- : Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
- : IEEE 802.3X flow control provides reliable data transfer and a fanless design ensures quiet operation.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
TP-LINK's 8-Port 10/100Mbps Desktop Switch With 4-Port PoE
The 8-Port 10/100Mbps Desktop Switch with 4-Port PoE provides a seamless network connection. It integrates 100Mbps Fast Ethernet and 10Mbps Ethernet network capabilities.
How This Product Works
Four of the eight Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3 af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Overload Arrangement
TL-SF1008P has the priority function, which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is greater than or equal to 53W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
Port Priority Function
Priority (port-1>port-2>port-3>port-4): This function will help protect the system if the system power becomes overloaded. For example, Port 1, 2, and 4 are using 15.4 w (maximum power per port is 15.4W ), the system power is 46.2 w in total (PoE max LED is red). If there is an additional PD inserted to Port 3 with 10w then the system will cut off Port 4 to protect the system; this means that Port 1 and 2 will use 15.4 w, Port3 will use 10w, and no power will be supplied to Port 4.
Easy To Use
TL-SF1008P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance, and quality, the TP-LINK TL-SF1008P8-Port 10/100Mbps Desktop Switch with 4-Port PoE is a great choice for expanding your home or office network.
Package Contents
TL-SF1008P switch
Power cord
Power adapter
Installation guide
TP-LINK's PoE Switch Series
Which TP-LINK PoE switch is right for me?
TL-SG1008PE
TL-SG1008P
TL-SF1008P
Interface
8 10/100/1000Mbps RJ45 Ports
8 10/100/1000Mbps RJ45 Ports
8 10/100Mbps RJ45 Ports
PoE Standard
802.3 at/af
802.3 af
802.3 af
PoE Ports
8 (Port 1 - Port8)
4 (Port 1 - Port4)
4 (Port 1 - Port4)
PoE Power Budget
124W
53W
53W
Max. Power per Port
30W
15.4W
15.4W
Dimensions
11.6 x 7.1 x 1.7 in. (294 x 180 x 44 mm)
6.7 x 3.9 x 1.1 in. (171 x 98 x 27 mm)
6.7 x 3.9 x 1.1 in. (171 x 98 x 27 mm)
The 8-Port 10/100Mbps Desktop Switch with 4-Port PoE provides a seamless network connection. It integrates 100Mbps Fast Ethernet and 10Mbps Ethernet network capabilities.
How This Product Works
Four of the eight Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3 af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Overload Arrangement
TL-SF1008P has the priority function, which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is greater than or equal to 53W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
Port Priority Function
Priority (port-1>port-2>port-3>port-4): This function will help protect the system if the system power becomes overloaded. For example, Port 1, 2, and 4 are using 15.4 w (maximum power per port is 15.4W ), the system power is 46.2 w in total (PoE max LED is red). If there is an additional PD inserted to Port 3 with 10w then the system will cut off Port 4 to protect the system; this means that Port 1 and 2 will use 15.4 w, Port3 will use 10w, and no power will be supplied to Port 4.
Easy To Use
TL-SF1008P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance, and quality, the TP-LINK TL-SF1008P8-Port 10/100Mbps Desktop Switch with 4-Port PoE is a great choice for expanding your home or office network.
Package Contents
TL-SF1008P switch
Power cord
Power adapter
Installation guide
TP-LINK's PoE Switch Series
Which TP-LINK PoE switch is right for me?
TL-SG1008PE
TL-SG1008P
TL-SF1008P
Interface
8 10/100/1000Mbps RJ45 Ports
8 10/100/1000Mbps RJ45 Ports
8 10/100Mbps RJ45 Ports
PoE Standard
802.3 at/af
802.3 af
802.3 af
PoE Ports
8 (Port 1 - Port8)
4 (Port 1 - Port4)
4 (Port 1 - Port4)
PoE Power Budget
124W
53W
53W
Max. Power per Port
30W
15.4W
15.4W
Dimensions
11.6 x 7.1 x 1.7 in. (294 x 180 x 44 mm)
6.7 x 3.9 x 1.1 in. (171 x 98 x 27 mm)
6.7 x 3.9 x 1.1 in. (171 x 98 x 27 mm)
