TP-Link TL-SF1008P, 8 Port 10/100Mbps PoE Switch, 4 PoE+ Ports @66W, Desktop, Plug & Play, Sturdy Metal Casing, Fanless, Extend & Priority Mode, PoE Auto Recovery

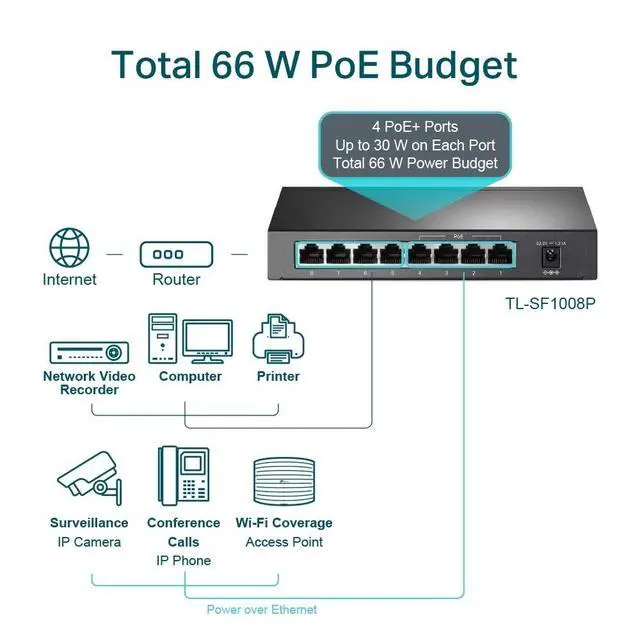

TP-LINK's 8-Port 10/100Mbps Desktop Switch With 4-Port PoEThe 8-Port 10/100Mbps Desktop Switch with 4-Port PoE provides a seamless network connection. It integrates 100Mbps Fast Ethernet and 10Mbps Ethernet network capabilities. How This Product WorksFour of the eight Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3 af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

Overload ArrangementTL-SF1008P has the priority function, which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is greater than or equal to 53W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.

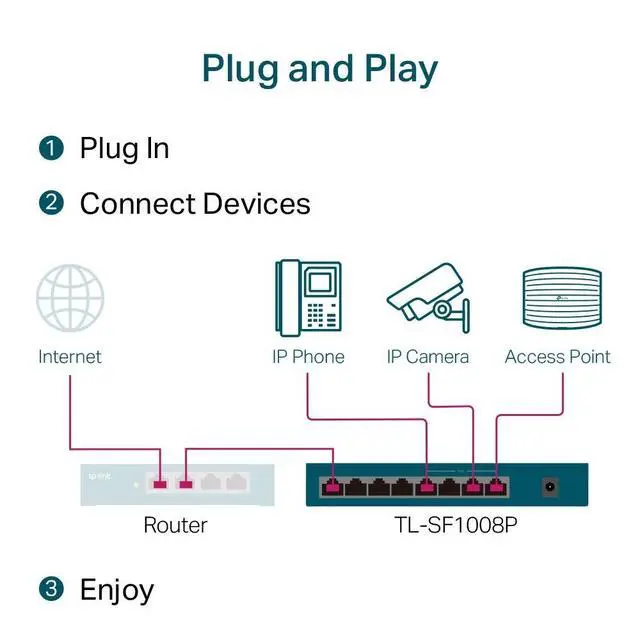

Port Priority FunctionPriority (port-1>port-2>port-3>port-4): This function will help protect the system if the system power becomes overloaded. For example, Port 1, 2, and 4 are using 15.4 w (maximum power per port is 15.4W ), the system power is 46.2 w in total (PoE max LED is red). If there is an additional PD inserted to Port 3 with 10w then the system will cut off Port 4 to protect the system; this means that Port 1 and 2 will use 15.4 w, Port3 will use 10w, and no power will be supplied to Port 4. Easy To UseTL-SF1008P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance, and quality, the TP-LINK TL-SF1008P8-Port 10/100Mbps Desktop Switch with 4-Port PoE is a great choice for expanding your home or office network. Package ContentsTL-SF1008P switchPower cordPower adapterInstallation guideTP-LINK's PoE Switch SeriesWhich TP-LINK PoE switch is right for me? TL-SG1008PETL-SG1008PTL-SF1008PInterface8 10/100/1000Mbps RJ45 Ports8 10/100/1000Mbps RJ45 Ports8 10/100Mbps RJ45 PortsPoE Standard 802.3 at/af 802.3 af 802.3 afPoE Ports8 (Port 1 - Port8)4 (Port 1 - Port4)4 (Port 1 - Port4)PoE Power Budget124W53W53WMax.

Power per Port30W 15.4W 15.4WD imensions 11.6 x 7.1 x 1.7 in. (294 x 180 x 44 mm) 6.7 x 3.9 x 1.1 in. (171 x 98 x 27 mm) 6.7 x 3.9 x 1.1 in. (171 x 98 x 27 mm)
