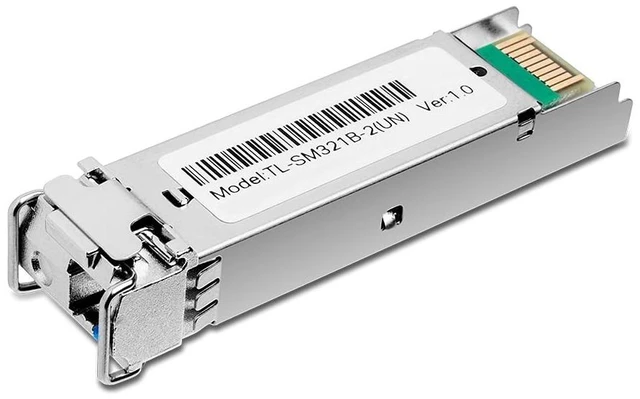

TP-Link TL-SM321B Network transceiver Module Fiber Optic 1250, W128171938 (Module Fiber Optic 1250 Mbit/s SFP)

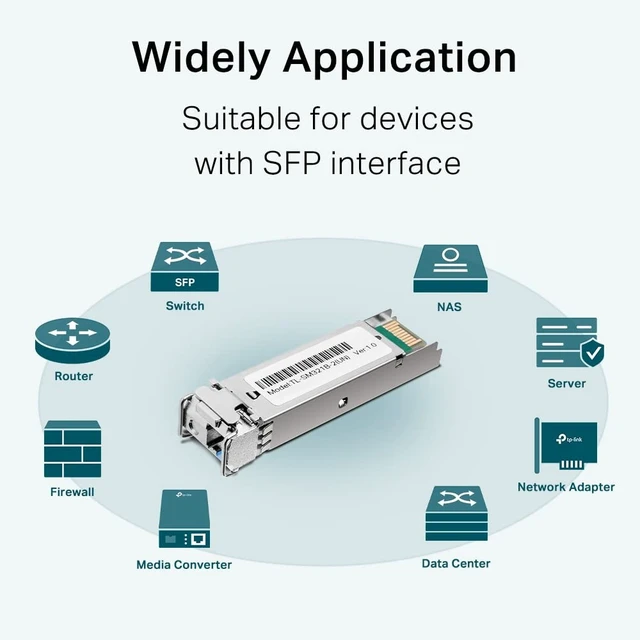

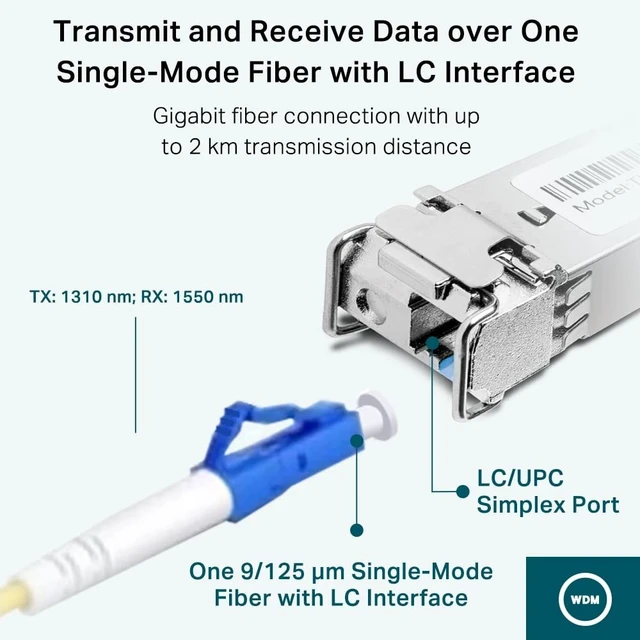

SFP module TL-SM321B-2 from the TP connection was developed in accordance with the little one. Pluggable multi-source agreement (SFP-MSA). As a two-way opticalTransmitter receiver WDM uses TL-SM321B-2, has LC two-way connector integratedOptical interface and data connection up to 2 km in 9/125 m SMF (single wayfibre). TL-SM321B-2 also includes the function of digital diagnostic monitoring (DDM), which isCompatible with SFF-8472. DDM supports real-time transmitter receiver monitoringTime and display parameters including the transmitter receiver current that sends /optical power and operating temperature. TL-SM321B-2 of the TP connection is used in practice for optical networks on itShort and medium distances and offer fast and stable gigabit opticalConnections for switches, routers, servers and similar devices.

Key Benefits* Accepts the last standard 1000Base-BX* Transmission distance up to 2 km in 9/125 m SMF (single - wise fibre). * Compatible with the small form pluggable multi-source agreement (SFP-MSA). * Supports digital diagnostic monitoring (DDM). * Supports occupational exchange.
Specification* Digital DDM diagnostic monitoring: Yes*
SFP-MSA: Yes* Possibility of replacement in operation: Yes*
Standards and protocols: IEEE 802.3, TCP /
IP* Wavelength:
TX: 1310nm, Rx: 1550nm*
Power supply: 3.3 V.
* Safety and emissions: FCC, CE*
Cable: single core fibre.
* Thread type: single process 9/125 m* Max.
Cable length: 2 km.
* Data transfer rate: 1.25
Gbps* Port type: LC
Simplex* Operating temperature: 0-70C (32-158F)*
Storage temperature: -40-85C (-40-185F).
* Operating humidity: 10-90% RH, non-compacting*
Storage humidity: 5-90% RH, non-compacting
