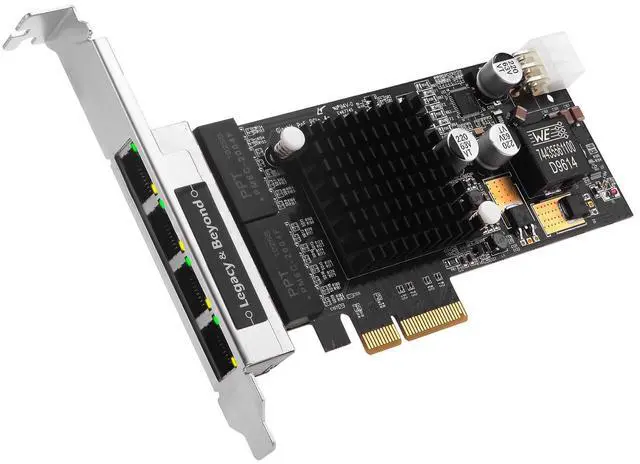

SIIG 4-Port Gigabit Ethernet with PoE PCIe Card - Intel I350 Chipset - PCIe 4 Lane - 4 Port Gigabit Ethernet PCIe Card (LB-GE0811-S1)
- Adds Four Independent Gigabit Ethernet Ports - Expand your server or desktop connectivity with four dedicated Gigabit Ethernet interfaces through a high-performance PCI Express slot, ideal for virtualization, firewalls, and multi-network setups
- Intel I350-T4 Chipset for Reliable Networking - Built with the trusted Intel I350-T4 controller, delivering stable, advanced, and efficient network performance for demanding enterprise environments
- PoE+ Support up to 30W per Port Compliant with IEEE 802.3at PoE+ standards, each port provides up to 30W of power output for IP cameras, VoIP phones, access points, and other powered devices
- Advanced Network Standards & Performance Supports IEEE 802.3/802.3u/802.3ab, full duplex, 9.5 KB jumbo frames, VLAN tagging (802.1Q), PXE boot, and Wake-on-LAN for versatile deployment and optimized throughput
- Energy-Efficient Design Features IEEE 802.3az Energy Efficient Ethernet (EEE) and DMA Coalescing to reduce power consumption while maintainin
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Chipset: Intel
I350-T4Network transfer rate: 10M / 100M / 1GPCI
Express specification: PCI Express 2.1 ( 5.0
GT/s)Bus connector: x4 Lane
PCI ExpressIndustry Standards: IEEE 802.3 10BASE-T, IEEE 802.3 u 100BASE-TX, IEEE 802.3 ab 1000BASE-T, IEEE 802.1Q VLA
Ns, IEEE 802.3 x Flow Control, IEEE 802.3 af Power over Ethernet, IEEE 802.3 at Power over
Ethernet PlusCable length:
1000BASE-T: 100m for CAT 5e, CAT 6 or
CAT 6A100BASE-T: 100m for CAT 5e, CAT 6 or
CAT 6A10BASE-T: 100m for CAT 5e, CAT 6 or CAT 6Power over
Ethernet: Support up to 30 Watts (Max) power output per port (52V
DC) Note: The total power output of 70W is shared among the 4
PoE portsPower Supply: 12V Mini-Fit 6-pin Power, 70W (Max input)
Power Pin assignment: 1/2 (+), 3/6(-)Product:
Dimensions: 6.42" (L) x 0.87" (H) x 4.72" (W)
Weight: 0.25
lbsColor:
BlackConnectors: 4x 8-Pin
RJ-45 FemaleUnit Package:
Dimensions: 7.28" (W) x 5.43" (H) x 1.30" (D)
Weight: 0.30
lbsEnvironmental conditions: Operating
temperature: 32 to 122 degrees
FStorage temperature: -13 to 158 degrees
FRelative humidity: 20% to 80%
RH (non-condensing)Certifications/Standards: FCC, CE, RoHSUPC
Code:
662774044125Warranty: 1
year limitedCountry of origin: China
I350-T4Network transfer rate: 10M / 100M / 1GPCI
Express specification: PCI Express 2.1 ( 5.0
GT/s)Bus connector: x4 Lane
PCI ExpressIndustry Standards: IEEE 802.3 10BASE-T, IEEE 802.3 u 100BASE-TX, IEEE 802.3 ab 1000BASE-T, IEEE 802.1Q VLA
Ns, IEEE 802.3 x Flow Control, IEEE 802.3 af Power over Ethernet, IEEE 802.3 at Power over
Ethernet PlusCable length:
1000BASE-T: 100m for CAT 5e, CAT 6 or
CAT 6A100BASE-T: 100m for CAT 5e, CAT 6 or
CAT 6A10BASE-T: 100m for CAT 5e, CAT 6 or CAT 6Power over
Ethernet: Support up to 30 Watts (Max) power output per port (52V
DC) Note: The total power output of 70W is shared among the 4
PoE portsPower Supply: 12V Mini-Fit 6-pin Power, 70W (Max input)
Power Pin assignment: 1/2 (+), 3/6(-)Product:
Dimensions: 6.42" (L) x 0.87" (H) x 4.72" (W)
Weight: 0.25
lbsColor:
BlackConnectors: 4x 8-Pin
RJ-45 FemaleUnit Package:
Dimensions: 7.28" (W) x 5.43" (H) x 1.30" (D)
Weight: 0.30
lbsEnvironmental conditions: Operating
temperature: 32 to 122 degrees
FStorage temperature: -13 to 158 degrees
FRelative humidity: 20% to 80%
RH (non-condensing)Certifications/Standards: FCC, CE, RoHSUPC
Code:
662774044125Warranty: 1
year limitedCountry of origin: China
