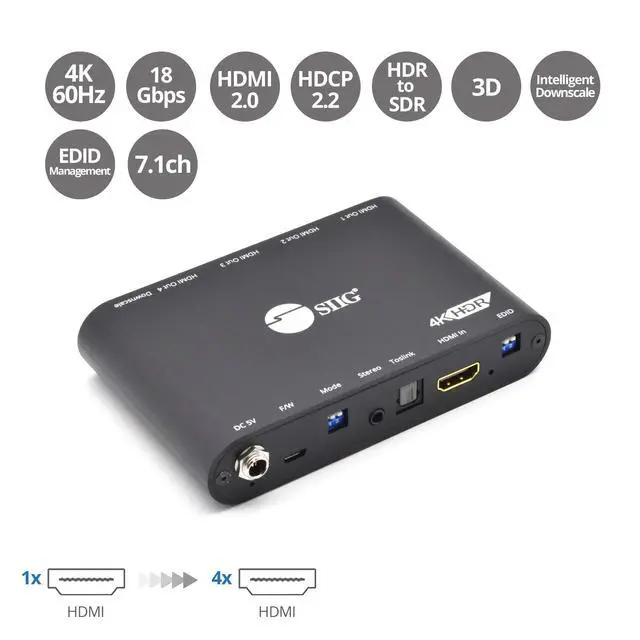

SIIG 1x4 HDMI Splitter with EDID, Audio Extractor to Toslink, HDR to SDR Conversion,Video Downscaling,4K60 HDR,HDCP Bypass,Digital/PCM 7.1 Audio, TAA Compliant CE-H26911-S1

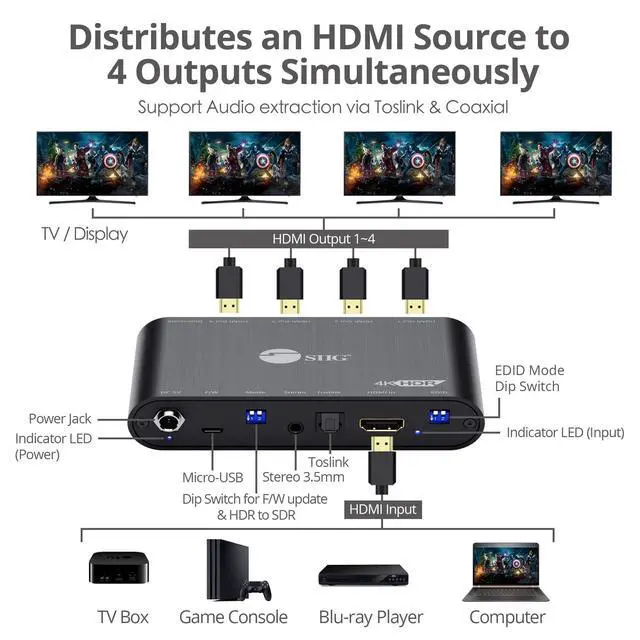

- Distributes HDMI video and audio from a single source to up to 4 HDMI displays simultaneously while maintaining signal quality Compliant with HDMI 2.0a, HDCP Bypass 2.2/1.4 with 18Gbps bandwidth
- Compatible with 4K@60Hz (YUV 4:4:4 8-bit), HDR 4K@60Hz (YUV 4:2:0 10-bit), 3D, xvYCC, x.v.Color & Deep Color & 7.1 CH surround sound audio HDMI output 4 supports HDR to SDR conversion for use with non-HDR monitors
- Auto Video Scaling Feature detects and configures the video resolution automatically according to the capabilities of each connected monitors. Note: 4K@30Hz monitors will display in 1080p@60Hz when the source content is 4K@60Hz
- Extracts audio from an incoming digital HDMI signal and converts it to an Optical S/PDIF Toslink and a stereo analog audio output. Capable of splitting audio to both outputs simultaneously
- High quality materials with metal housing extend the stability and durability, allowing for long hours of operation. Built-in EDID management and firmware update
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
:Chipset: IT6664ECompliant with HDMI 2.0, HDCP
Bypass 2.2 specificationsResolution: up to 4K@60Hz
YUV 4:4: 4 8bits, HDR 4K@60Hz
YUV 4:2: 0
10bitsVideo bandwidth: 18Gbps
(single-link 600MHz)Video support: 480p/720p/1080i/1080p/HDR
4K@60Hz (YUV 4:2: 0
10bits)/4K@60Hz (YUV 4:4: 4 8bits)Resolution up to 4K (3840 x 2160) @60HzSupports default EDID and EDID learning from HDMI displayBuilt-in Micro-USB port for firmware update for expanding compatibilityAudio: DTS-HD Master Audio, Dolby TrueHD, Dolby Digital, DTS, DVD-Audio, LPCM, SACD, MPCMHDMI
cable length: 4K
@60Hz: Up to 10 meters (5m/In; 5m/Out)1080p
& 4K@30Hz: Up to 15 meters (5m/In; 10m/Out)LED indicators for power and signal statusESD protection: 15kV Air / 8kV
ContactProduct:
Dimensions: 4.72" (L) x 0.94" (H) x 3.07" (W)
Weight: 0.47
lbsColor: BlackHousing
material:
AluminumConnectors: 1x 19-Pin, HDMI, Type A, Female, Input4x 19-Pin, HDMI, Type A, Female, Output1x S/PDIF Toslink, Female, Output1x 3.5 mm Stereo Audio Jack, Output1x 4-pin DIP switch, Downscale control1x 2-pin DIP switch, F/W and Service control1x 2-pin DIP switch, EDID mode1x 5-pin Micro USB, Female, F/W update1x
Power jackPower adapter:
Input: 100-240VAC, 50/60
HzOutput: DC 5V/2AUL
Listed: E253376
/Level: VIEnvironmental
conditions: Operating
temperature: 32 to 104 degrees
FStorage temperature: -4 to 140 degrees
FRelative humidity: 20 to 90%
RH (non-condensing)Certifications/Standards: FCC, CE, RoHSTAA
compliantCountry of origin: TaiwanPackage
contents: 1x4 HDMI 2.0 a Splitter with Built-in & User Adjustable EDID Management, Audio Extractor and HDR to SDR ConversionPower AdapterQuick start guide
