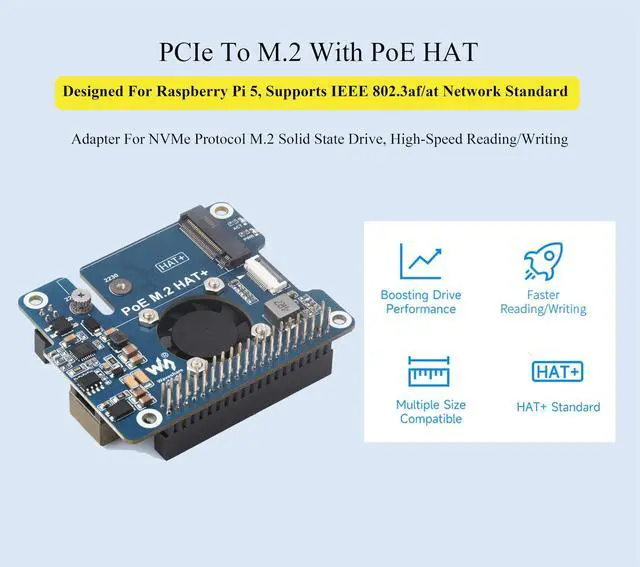

PCIe to M.2 Adapter with PoE HAT for Raspberry Pi 5, Power Over Ethernet Support IEEE 802.3af/at Network Standard, NVMe Protocol 2230/2242 M.2 Solid State Drive, Gen2 and Gen3 Modes

Description
PCIe To M. 2 Adapter with PoE HAT compatible with Raspberry Pi
5. Supports IEEE 802.3 af/at Network Standard, Adapter For NVMe Protocol M. 2 Solid State Drive, High-speed Reading/Writing

Features

1.
NVMe Drive Protocol Support: Compatible With 2230/2242 Size M. 2 Solid State Drive. Supports Gen2 and Gen3 Modes, Supports Booting PI5 From Solid State Drive

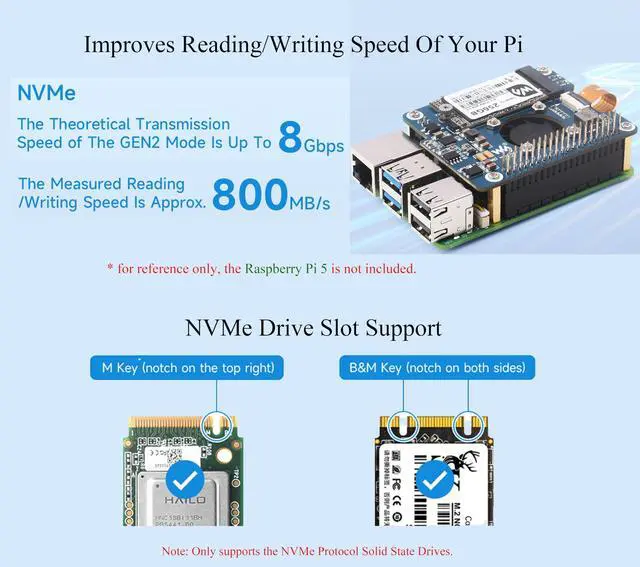

2. Improves reading/writing speed of your
Pi-- NVMe: the theoretical transmission speed of the GEN2 Mode is up to 8 Gbps. The measured reading/writing speed is approx. 800 MB/s

3. Connecting to PI5 via 16PIN
Cable: Based on 16PIN PCIe Interface of Raspberry Pi 5.
Standard Raspberry Pi 40PIN GPIO stackable header, allows connecting other HATs

4.
Power Over Ethernet: providing both network connection and power supply for your Raspberry Pi in one cable

5. Onboard Dual LED Indicators. Easy to monitor the Working Status

6.
Active Cooling fan: Accelerate Cooling Effect, More Stable Performance

7. Onboard 5V
& 12V header outputs: 5V header provides up to 4.5A output (MAX 25W for 12V+5V total output power).
Be able to power extra devices while providing stable power to Raspberry Pi

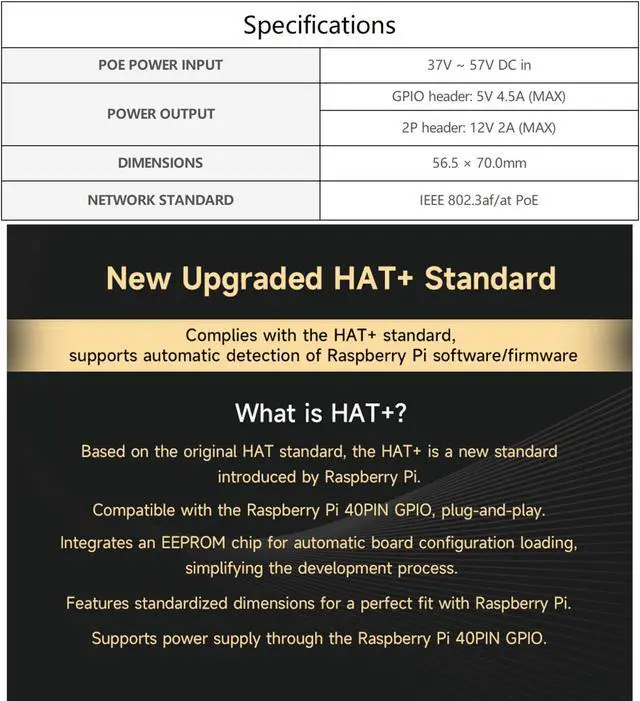

Specifications

PoE Power Input: 37V ~ 57V DC in
Power Output:
GPIO header: 5V 4.5A (MAX)
2P header: 12V 2A (MAX)
Network Standard: IEEE 802.3 af/at PoE
Dimensions: 56.5 x 70.0 mm

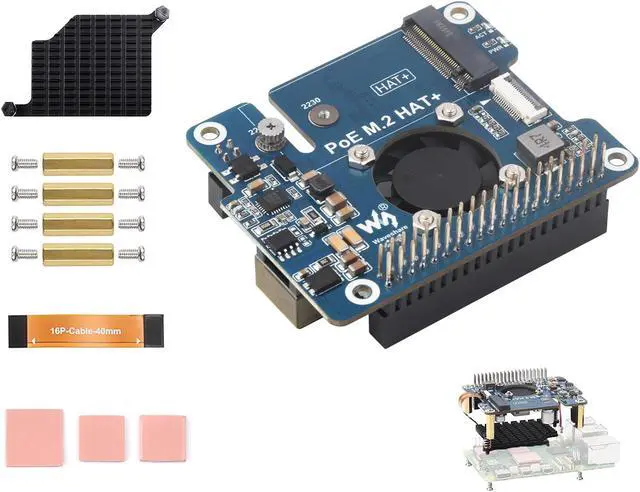

Package Content
PoE M. 2 HAT+ x1
Metal heatsink x1
16P-Cable-40mm x1
Thermal tape (3PCS) x1
Screws pack x1
