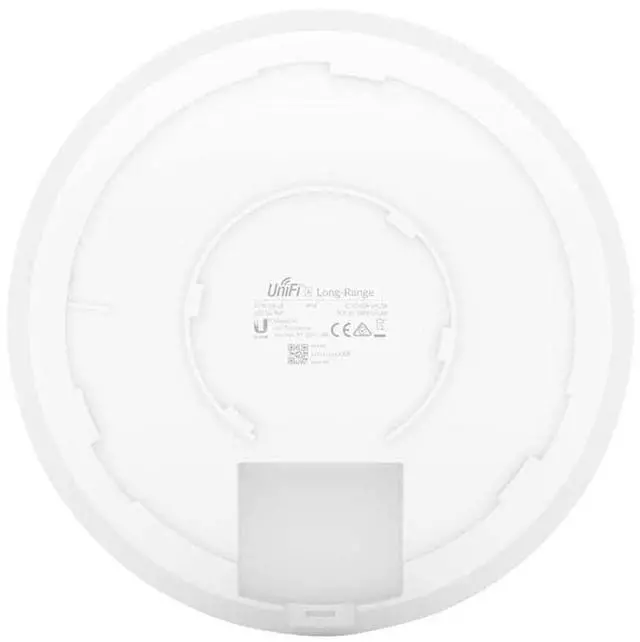

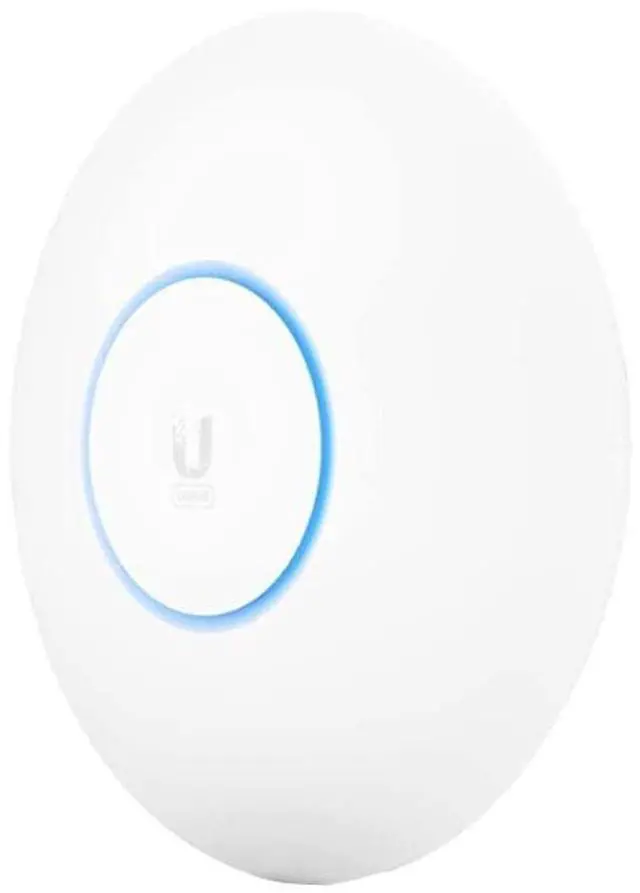

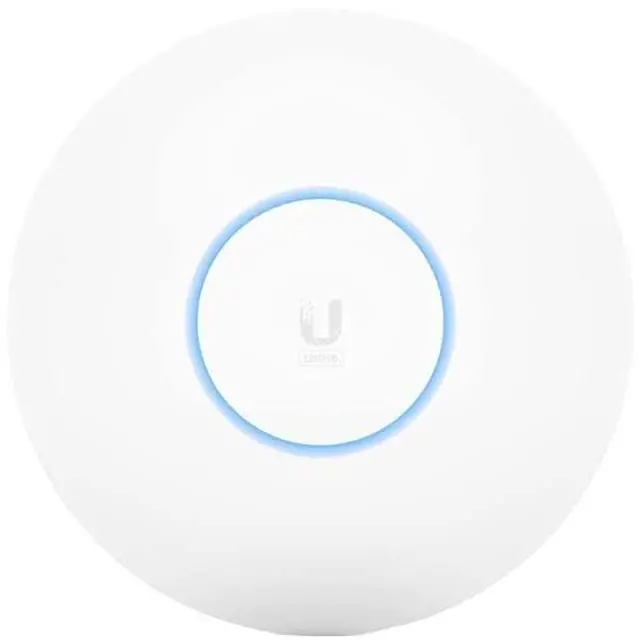

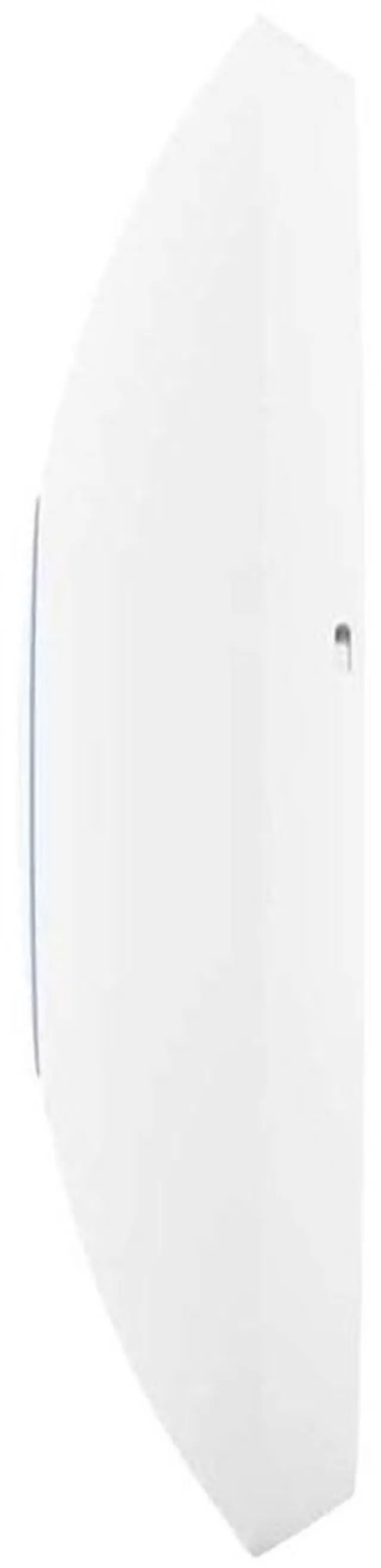

Brand ubiqui Model U6+ Characteristics -
Network interface: 1 x GbE RJ45 port -
Management interface: Ethernet -
Power method: PoE -
Wi-Fi standards: 802.11 a/b/g Wi-Fi 4/Wi-Fi 5/Wi-Fi 6 -
Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) -
BSSID: 8
per radio -VLAN: 802.1Q -
Advanced QoS: Rate limit per user -
Guest traffic isolation: Supported - Zero wait
DFS: Not supported -
Concurrent clients: 300+ - UniFi
Network Management Application: Version 7.3. 76 and later -
Certifications: CE, FCC, IC -
Supported voltage range: 4457 VDC - max.
power consumption: 9W - Max.
2.4GH z TX power: 23dBm - Max.
TX power:
5GHz: 23dBm - 2.4GH z
MIMO: 2 x 2 - 5GHz
MIMO: 2 x 2 - 2.4GH z throughput rate: 573.5M bps - 5GHz throughput rate: 2402Mbps - 2.4
GHz antenna gain: 3dBi - 5
GHz antenna gain: 5.4 dBi -
Button: Factory reset -
LED: White/blue l-
Housing materials: Polycarbonate, aluminum -
Mounting materials: ABS, SGCC steel -
Operating temperature: -30 to 60° C (-22 to 140° F) -
Operating humidity: 5 to 95% non-condensing Dimensions and weight - Ø160 x 33mm -
Weight without frame: 338 g -
With frame: 413 g Review date 07-14-2023 by RTY
