MaySpare 200 Amp Mobile Audio Continuous Relay and Battery Isolator High Current Relay 12VDC
- Function: An isolator is used to combine two batteries when a alternator is charging ( engine running) and isolate them when not charging ( engine off) so you can still start your vehicle
- Voltage: 12VDC/ Dimensions: 2-3/8"W x 2-3/8"D x 3-3/4"H/Power Handling: Continuous power handling of 200 amps/ Surge Power Handling: 300 amps
- Advantage: Does not create a voltage drop to the second battery like conventional isolators

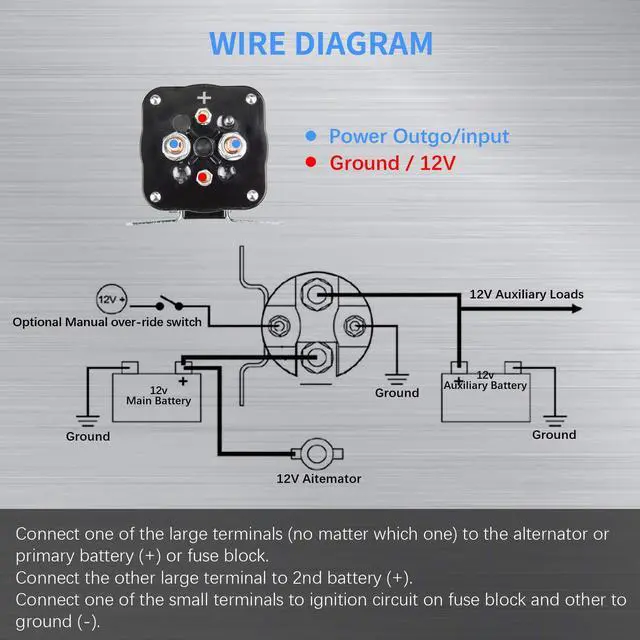

- Wrie Diagram : Connect the two small studs one to ground the other to an ignition on source from fuse box , the order on the large/ small studs does not matter
- 100% OEM matching and high quality, direct replacement
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description:
Voltage: 12VDC
Continuous Power: 200AMP
Surge Power Handling: 300 amps
mechanical cycle life: 100, 000 Times

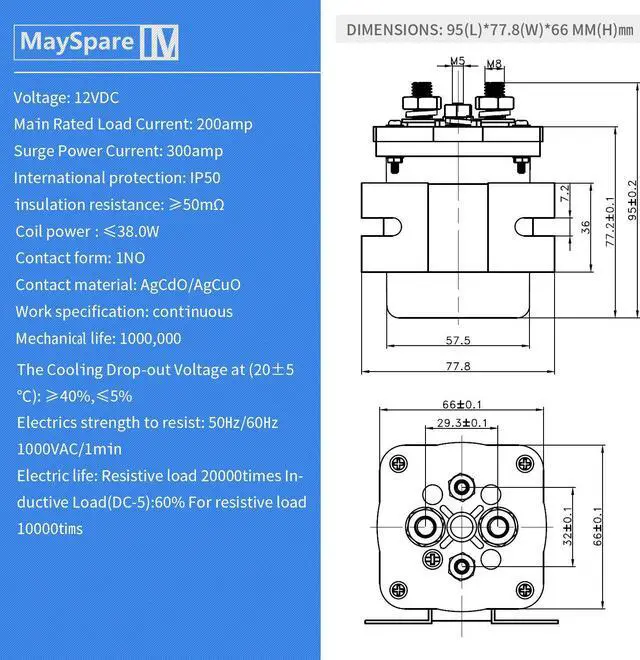

Dimensions: 2-3/8"W x 2-3/8"D x 3-3/4"H
Advantage: MaySpare Isolator Relay perfect solution when adding a secondary battery to your audio system and does not create a voltage drop like common isolators tend to do. The battery isolator will draw less than 1 amp when your vehicle is powered on.
Voltage: 12VDC
Continuous Power: 200AMP
Surge Power Handling: 300 amps
mechanical cycle life: 100, 000 Times
Dimensions: 2-3/8"W x 2-3/8"D x 3-3/4"H
Advantage: MaySpare Isolator Relay perfect solution when adding a secondary battery to your audio system and does not create a voltage drop like common isolators tend to do. The battery isolator will draw less than 1 amp when your vehicle is powered on.
