Nidec Servo GentleTyphoon 120mm Case Fans (2150 RPM 4pin PWM)
- The GentleTyphoon achieves high airflow volume and low noise with the newly designed impeller
- The fan propeller is designed to reduce the disturbing frequency fan noise to human ears
- The newly designed motor and motor support mechanism of the GentleTyphoon uses a double vibration re
- OEM version, fan only
- 4pin PWM fan, 900-2150RPM
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

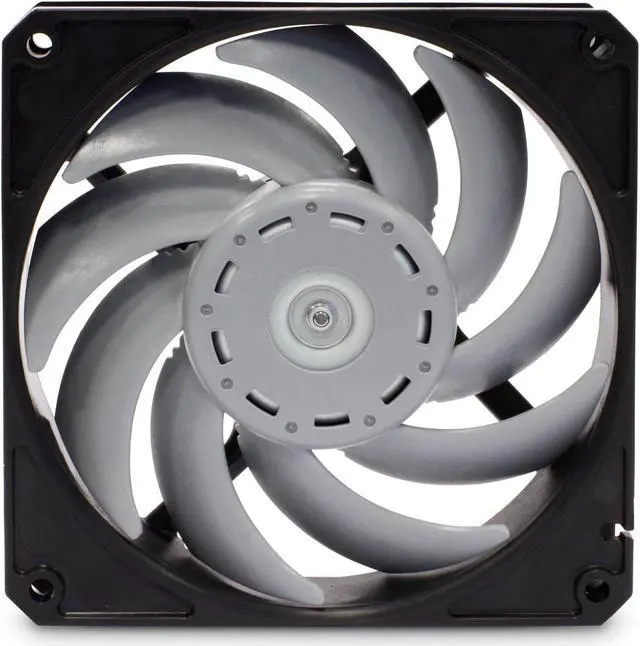

Gentle Typhoon 120x120x25mm 2150 RPM PWM fan #D1225C12B6ZPA
The Gentle Typhoon 120 mm fan series produce especially high static pressure combined with optimized fan blade design. They are fitted with double ball bearing and boast a life span of up to 100, 000 hours at 35degC. To further reduce noise, a newly developed motor with drive train, disposing a special double vibration reduction structure, is deployed. Added dampening rings further reduce vibrations effectively.
High Performance
The Gentle Typhoon achieves high airflow volume and low noise with the newly designed impeller, enabling silent cooling of the latest devices which run very hot.
Silent Operation
The Gentle Typhoon has a different type of tone. The fan propeller is designed to reduce the disturbing frequency fan noise to human ears.
Innovative Technology
The newly designed motor and motor support mechanism of the Gentle Typhoon uses a double vibration reduction structure. The new support mechanism uses coil dampers to greatly reduce vibration.
Fan Speed: 900 - 2150 RPM
Fan Noise: 15 - 34 dB max
Air Flow: 20 - 68 CFM
A: 0.13
Voltage: 12V
Bearing Type: Double Ball
MTBF: 100, 000 @35C / 60, 000 @60C
Connector: 4 Pin PWM
This is the OEM version, comes in standard non-retail box, fan only, no accessories.
The Gentle Typhoon 120 mm fan series produce especially high static pressure combined with optimized fan blade design. They are fitted with double ball bearing and boast a life span of up to 100, 000 hours at 35degC. To further reduce noise, a newly developed motor with drive train, disposing a special double vibration reduction structure, is deployed. Added dampening rings further reduce vibrations effectively.
High Performance
The Gentle Typhoon achieves high airflow volume and low noise with the newly designed impeller, enabling silent cooling of the latest devices which run very hot.
Silent Operation
The Gentle Typhoon has a different type of tone. The fan propeller is designed to reduce the disturbing frequency fan noise to human ears.
Innovative Technology
The newly designed motor and motor support mechanism of the Gentle Typhoon uses a double vibration reduction structure. The new support mechanism uses coil dampers to greatly reduce vibration.
Specifications
Fan Speed: 900 - 2150 RPM
Fan Noise: 15 - 34 dB max
Air Flow: 20 - 68 CFM
A: 0.13
Voltage: 12V
Bearing Type: Double Ball
MTBF: 100, 000 @35C / 60, 000 @60C
Connector: 4 Pin PWM
This is the OEM version, comes in standard non-retail box, fan only, no accessories.
