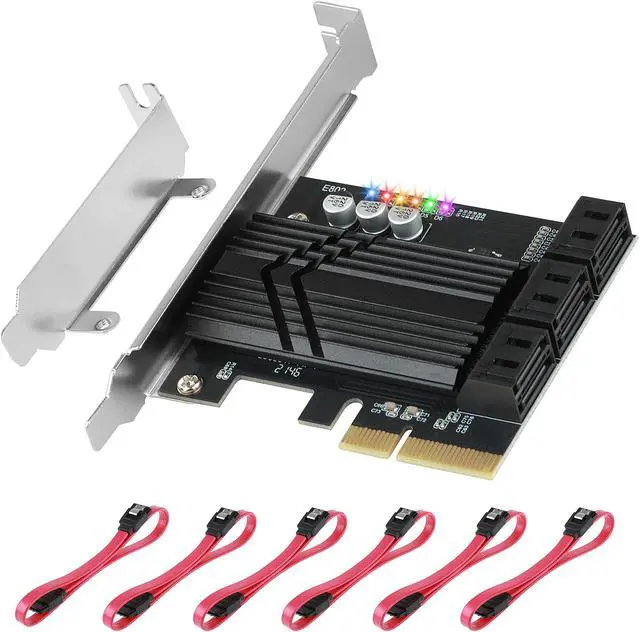

ASM1166 PCIe X4 SATA Card 6 Ports, Non Raid, Joylifeboard PCIE SATA III Controller Expansion Card 6 Gbps, Support 6 SATA 3.0 Devices, PCIe SATA Card with 6 SATA Cables+Thin Bracket
- [(6 Ports PCIe to SATA 3.0 Expansion Card)] : Six SATA 3.0 devices can be added to this PCIE 4X to SATA 3.0 card, a simple and stable solution to expand your sata storage by 6x, compliant with SATA 3 max speed 6Gbps, SATA 2 (3Gbps), SATA 1 (1.5Gbps).
- [(Wide Compatibility)] : This 6 Port PCIE 4X SATA card works on PCIe X4/X8/X16 card slots, improve the stability and compatibility of the card.The SATA Card with 2 size profile brackets supports WinXP/7/8/10, Linux,MacOS ,Ubuntu,Synology,NAS,etc, perfect for IPFS mining rig.
- [(Easy to Install)] : Support ACHI 1.0 mode, If the PCs SSD/HDD in AHCI boot up mode, you can insert the hard drive into this sata card directly. No need driver, plug and play. This 6-port PCIe SATA III Controller Card is non raid, data can be protected by OS.
- [(High Performance)] : Super heatsink is long-lasting high temperature resistance. 3 solid capacitors can improve the stability of the supply. Support switch based on porter FIS or switch based on comm
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Name: 6 Port SATA III PCIe Card/ASMedia ASM1166 Chip
Model: E802
Product Chip: ASMedia ASM1166

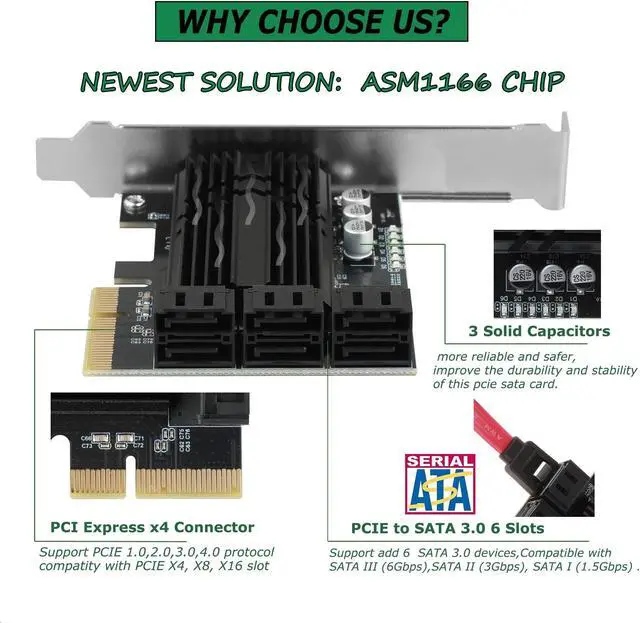

Number of Capacitors: 3 capacitors for stabling power supply

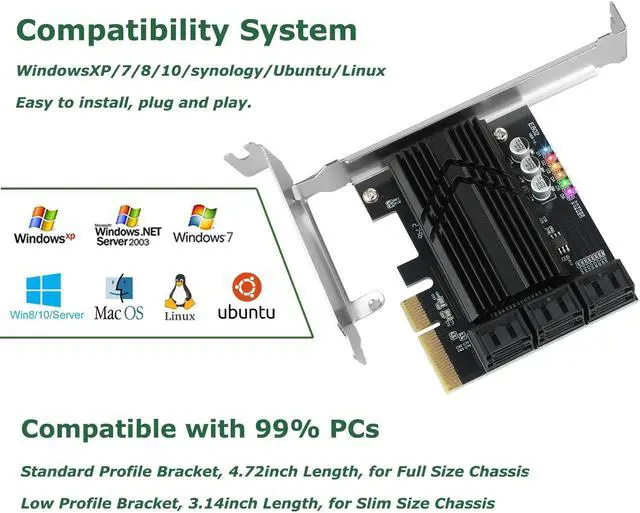

Support System: WIN XP/ WIN7 / WIN8/ WIN10 / Linux/ Synology/ Ubuntu
Supports the AHCI 1.0 mode
Support Most of Computer Cases (includes mini computer case)
Function:
The PCIe X4 6 SATA 3.0 ports controller card provides a simple connection between a host computer and SATA 3.0 devices (SATA hard drive or SATA Device), which allows 6 SATA devices with a speed of up to 6 Gbp / s.
Features:
PCIe

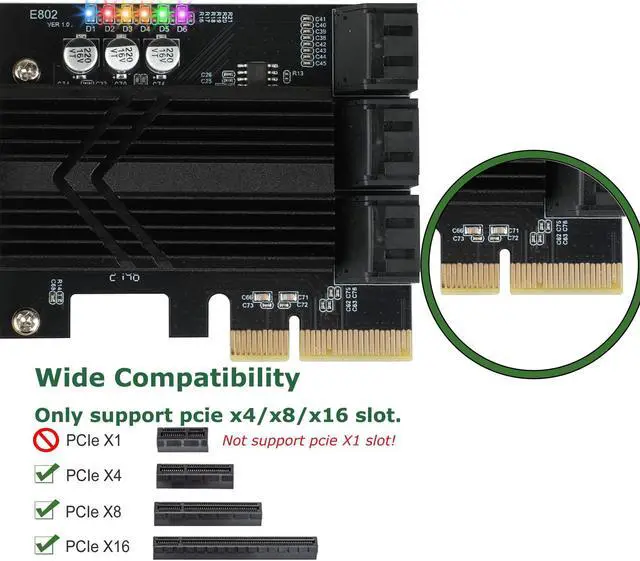

Support PCIe X4, X8, X16 slots
Compliant with PCI-Experss 3.0 specifications and backward compatible PCI-Express Gen 1 and Gen 2
Compliant with Serial ATA Specification 3.0 and backward compatible Serial ATA Specification 2.0 and 1.0
Support communication speed of 2.5 Gbps
SATA Controller
Support 6 SATA extension ports
Compliant with Serial ATA Specification 3.0 and backward compatible Serial ATA Specification 2.0 and 1.0
Support transfer speeds of 6 Gbps, 3 Gbps, and 1.5 Gbps.
The chip is designed on PCIE X4 interface, will only works on PCIE X4, X8, X16 slot.
Supported Hot Swap
NOTED: The blue light is always on when the hard disk is inserted, and the blue light flashes when reading data.

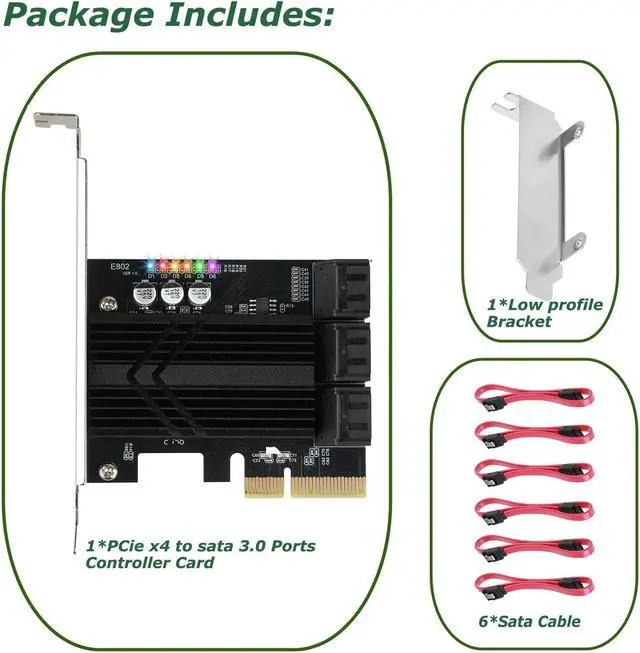

Package includes:
1* PCIe to 6 SATA 3.0 ports controller card
6* SATA cables
1* 15pin SATA power splitter cable
1* Standard Profile Bracket
1* Low Profile Bracket
Your satisfaction is our biggest motivation. If you are not 100% satisfied, just contact us to refund or exchange.
Model: E802
Product Chip: ASMedia ASM1166
Number of Capacitors: 3 capacitors for stabling power supply
Support System: WIN XP/ WIN7 / WIN8/ WIN10 / Linux/ Synology/ Ubuntu
Supports the AHCI 1.0 mode
Support Most of Computer Cases (includes mini computer case)
Function:
The PCIe X4 6 SATA 3.0 ports controller card provides a simple connection between a host computer and SATA 3.0 devices (SATA hard drive or SATA Device), which allows 6 SATA devices with a speed of up to 6 Gbp / s.
Features:
PCIe
Support PCIe X4, X8, X16 slots
Compliant with PCI-Experss 3.0 specifications and backward compatible PCI-Express Gen 1 and Gen 2
Compliant with Serial ATA Specification 3.0 and backward compatible Serial ATA Specification 2.0 and 1.0
Support communication speed of 2.5 Gbps
SATA Controller
Support 6 SATA extension ports
Compliant with Serial ATA Specification 3.0 and backward compatible Serial ATA Specification 2.0 and 1.0
Support transfer speeds of 6 Gbps, 3 Gbps, and 1.5 Gbps.
The chip is designed on PCIE X4 interface, will only works on PCIE X4, X8, X16 slot.
Supported Hot Swap
NOTED: The blue light is always on when the hard disk is inserted, and the blue light flashes when reading data.
Package includes:
1* PCIe to 6 SATA 3.0 ports controller card
6* SATA cables
1* 15pin SATA power splitter cable
1* Standard Profile Bracket
1* Low Profile Bracket
Your satisfaction is our biggest motivation. If you are not 100% satisfied, just contact us to refund or exchange.
