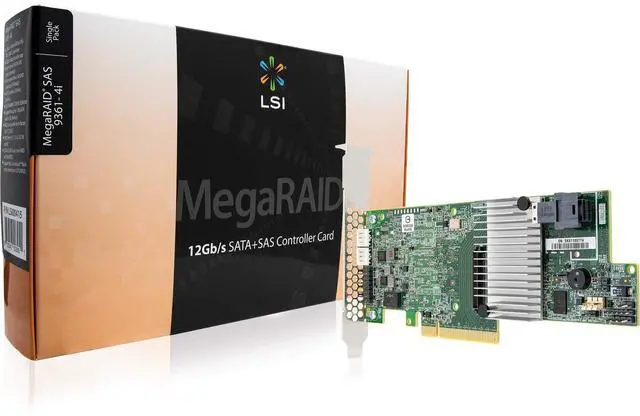

LSI Logic LSI LSI00415 MegaRAID SAS 9361-4i 4-Port 12Gb/s SAS+SATA PCI-Express 3.0 Low Profile RAID Controller, Single

LSI MegaRAID SAS 9361-4i LSI00415 RAID Controller CardEnsure Data Protection for Performance-Hungry Applications in Mid-Range Server Storage EnvironmentsData-center, cloud and high-performance computing environments not only require large amounts of storage capacity, they must also provide the data protection and performance todays applications and end users demand. The MegaRAID SAS 9361-4i 12Gb/s SAS and SATA RAID controller card addresses those needs by delivering proven performance and RAID data protection for a range of server storage applications. SpecificationsRAID-on-Chip Controller LSISAS3108 dual core RAID on Chip (ROC) Generation 12 Gb/sRAID Management Software LSA (LSI Storage Authority), MegaRAID Storage Manager, StorCLI (command-line interface), CTRL-R (BIOS configuration utility), HII (UEFI Human Interface Infrastructure) Physical Dimensions 6.6" x 2.536" (Low-Profile)Host Bus Type x8 lane PCI Express 3.0C ache Memory 1GB 1866MHz DDRIII SDRAMInternal Ports 4Data Transfer Rates Up to 12Gb/s per portDevices Supported Up to 128 SAS and/or SATA hard drives and SSDsInternal Connectors 1 HD Mini-SAS SFF8643 (Horizontal mount) MTBF 1, 343, 187 hoursOperating
Temperature Maximum ambient: Controller Card with included
CacheVault module: 55COperating Voltage (V) + 3.3V, +12V
