BUCIER M.2 to SATA Card 4 Port, 6Gbps SATA 3.0 Controller, Includes 4 SATA Cables, for Windows 10/11
Limited time offer, ends 11/17 By Electronics store
- 4 PortsThis sata card has 4 ports, supports sata 3.0 (6 Gbps) and is compatible with SATA I/II (1.5/3.0Gbps) for connecting 4 sata devices at the same time.**Only design for storage use, can not boot any OS/System drives**
- M.2 B+M KeyM.2 PCIe 3.0 interface (B and M Key). Complies with PCI Express Base Specification Revision 3.0. Support multiple installation such as PC, server, workstation, NAS, etc.
- Reliable ChipsetMaximize efficiency and stabilize performance with the ASMedia ASM1064 chipset. Experience reduced error rates and optimal cooling through an aluminum heat transfer and an efficient heatsink, ensuring reliable operation.
- Easy UsedSupport Windows 10/11 OS system, drive-free installation, plug and play, SATA interface with LED indicator, clearly display the connection status.**Does not support hot-swap, Non-RAID**

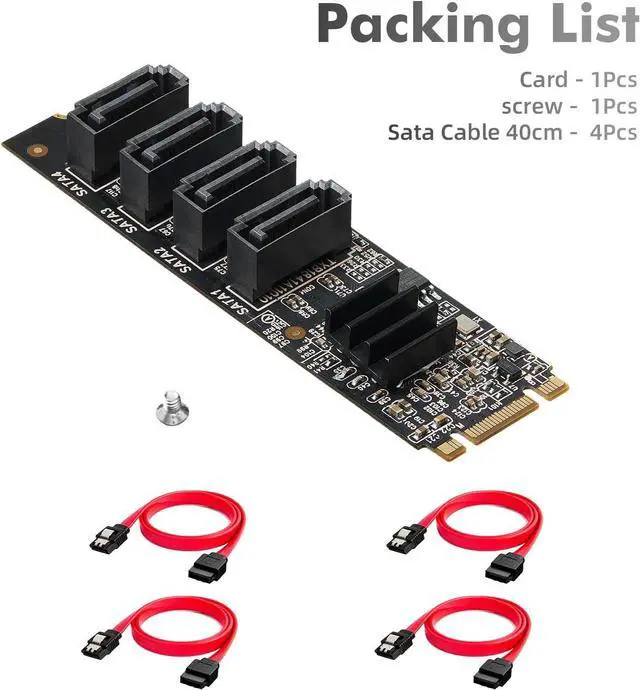

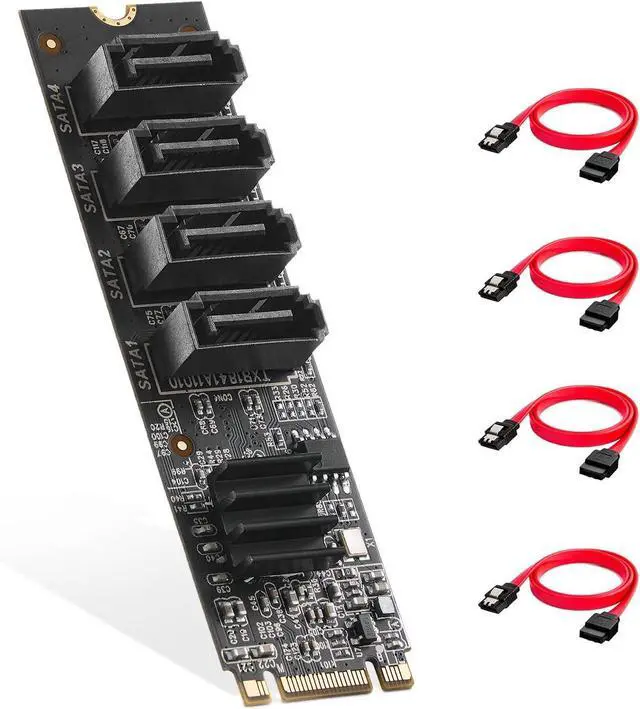

- Complete PackageIncludes all you need for a perfect solution: 1 x M.2 to 4-port Adapter, 4 x SATA Cables(40cm).
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

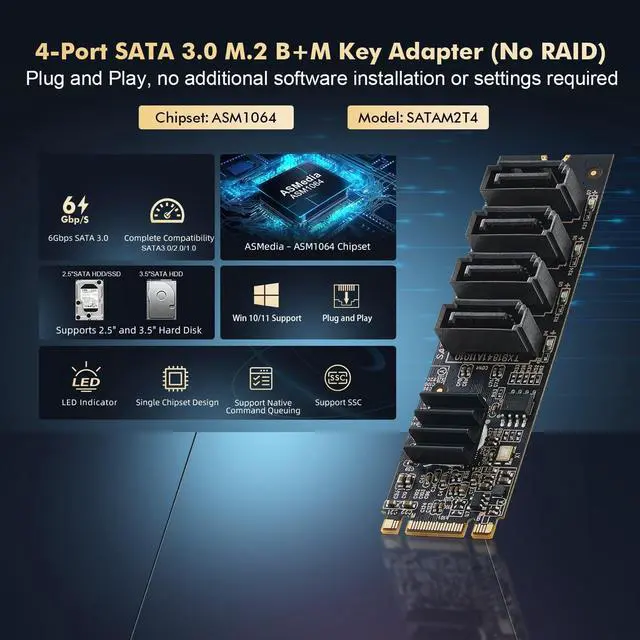

The SATAM2T4 can provide extra 4 port SATA III to any free M. 2 slot with PCIe Gen3x1 of bandwidth. Plug and play supported. No additional software installation or settings required.
Note: M. 2 module are neither hot-swappable nor hot-pluggable. Performain hot-swap or hot-plug may damage the modules.
Features:

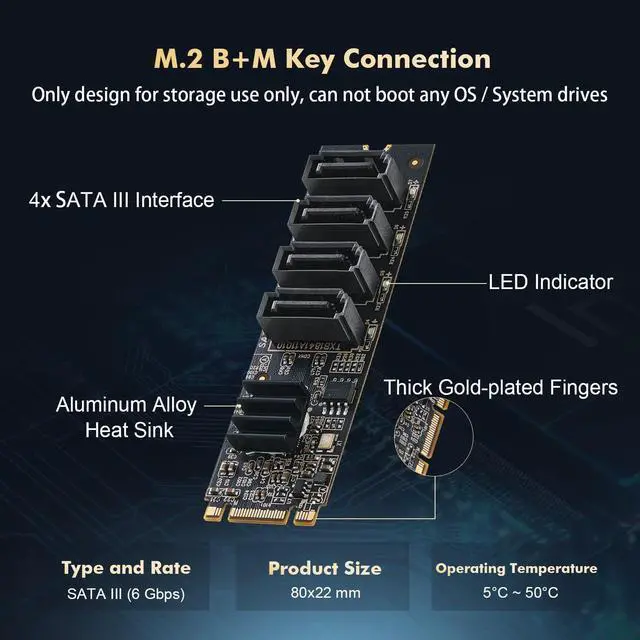

Connect four SATA drives to a M. 2 B+M Key Connection
Plug and play supported, no additional software installation or setting required
Can support Port Multiplier that is not in a RAID configuration. Compatible with SATA hard drives and solid state drives and computer systems with SATA connection
1-Lane M. 2 PCIe 3.0 interface (B and M Key). Complies with PCI Express Base Specification Revision 3.0
This card is only design for storage use only, can not boot any OS / System drives
Product Specification:
Chipset: ASMedia ASM10644
Form-Factor: M. 2 2280
Interface: SATA
Ports: 4
Bootable: No
Hot Swap Capability: No
Port Multiplier: Yes
Type and Rate: SATA III (6 Gbps)
Connector Type (s): M. 2 (B+M Key)
Internal Ports: SATA (7 pin, Data) Plug
OS Compatibility: Windows 10/11
System and Cable Requirements: PCI Express enabled computer with an available PCI Express x1, x4, x8 or x16 slot
Environmental: Humidity 20~80% RH, Operating Temperature 5°C to 50°C (41°F to 122°F), Storage Temperature -25°C to 70°C (-13°F to 158°F)
Note: M. 2 module are neither hot-swappable nor hot-pluggable. Performain hot-swap or hot-plug may damage the modules.
Features:
Connect four SATA drives to a M. 2 B+M Key Connection
Plug and play supported, no additional software installation or setting required
Can support Port Multiplier that is not in a RAID configuration. Compatible with SATA hard drives and solid state drives and computer systems with SATA connection
1-Lane M. 2 PCIe 3.0 interface (B and M Key). Complies with PCI Express Base Specification Revision 3.0
This card is only design for storage use only, can not boot any OS / System drives
Product Specification:
Chipset: ASMedia ASM10644
Form-Factor: M. 2 2280
Interface: SATA
Ports: 4
Bootable: No
Hot Swap Capability: No
Port Multiplier: Yes
Type and Rate: SATA III (6 Gbps)
Connector Type (s): M. 2 (B+M Key)
Internal Ports: SATA (7 pin, Data) Plug
OS Compatibility: Windows 10/11
System and Cable Requirements: PCI Express enabled computer with an available PCI Express x1, x4, x8 or x16 slot
Environmental: Humidity 20~80% RH, Operating Temperature 5°C to 50°C (41°F to 122°F), Storage Temperature -25°C to 70°C (-13°F to 158°F)
