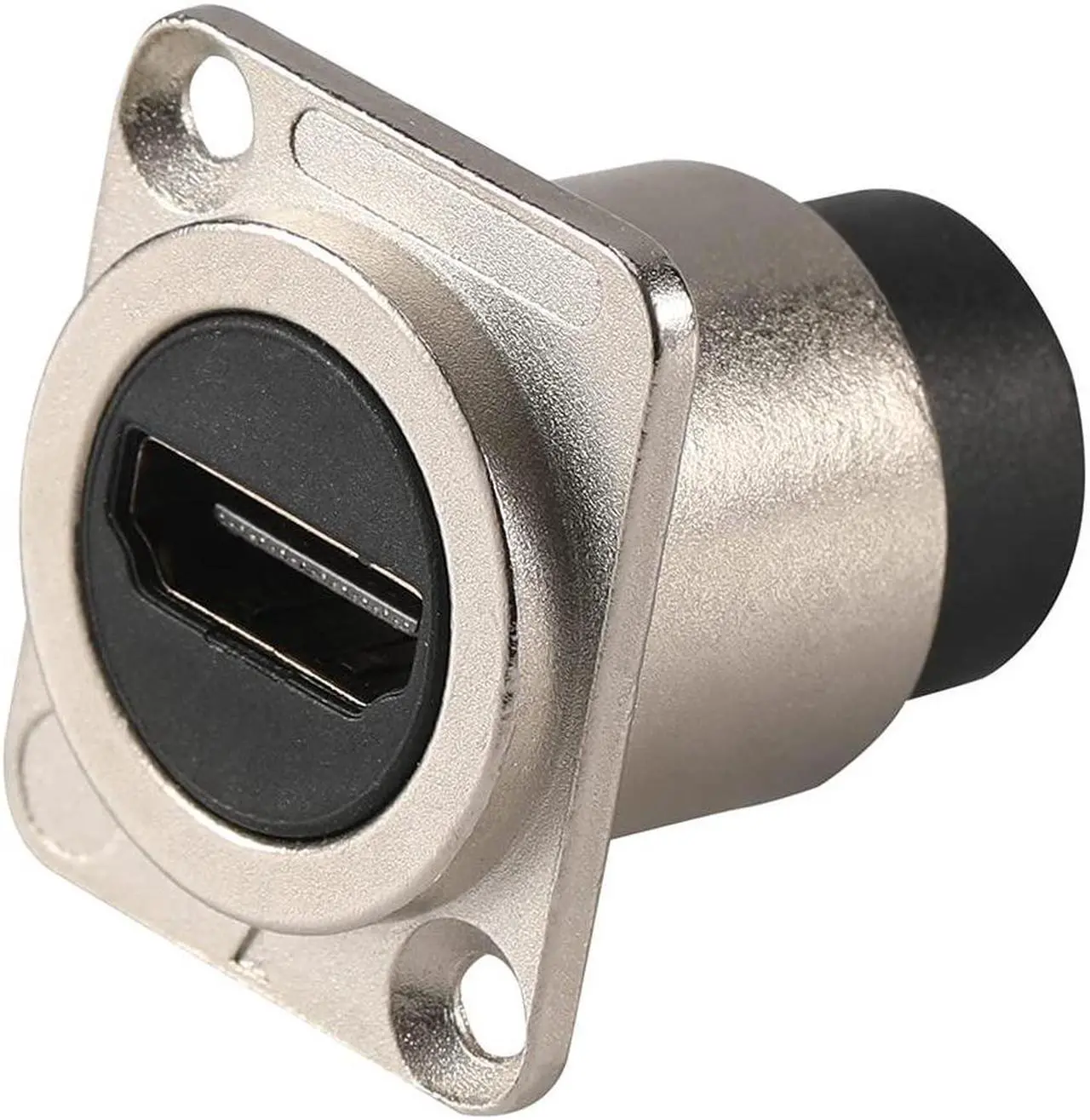

ANMBEST 10PCS HDMI IP67 Waterproof Connector, Zinc Alloy Housing Panel Mount Female to Female HDMI Bulkhead Coupler with Weatherproof Dust Cap

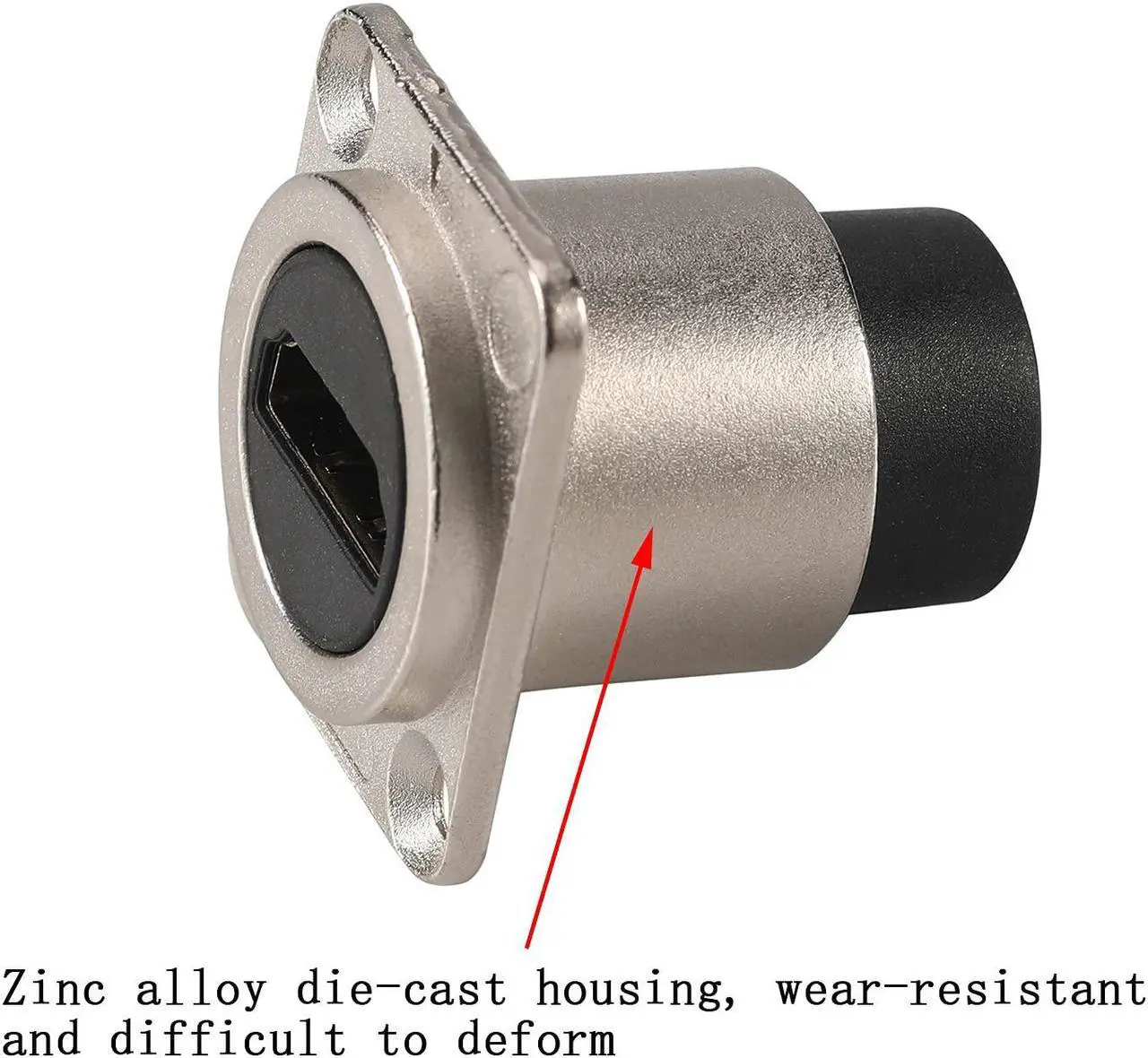

- DURABLE: This HDMI connector is made of Zinc diecast (ZnAl4Cu1), flame retardant, UV resistant, and anti-aging.
- Perfectly supports 4K HDR 1080P 60FPS. Bandwidth up to 18Gbps.
- The contact pin is phosphor bronze (CuSn8) plated with 7um Au, which is more sensitive to contact.
- The industrial panel mount bulkhead includes a water/dust cap that meets IP67 Waterproof Protection.
- Standard D-Series Connector for Panel-Mount Installations, and save installation space, HDMI female to female field installable coupler, no soldering, no installation tools, just plug the standard hdmi head directly for quick installation.
+
+
Overview
Specs
Reviews
Technical
Number of cores: 19 pin
Waterproof rating: None (without waterproof cover), IP67 (with waterproof cover)
Connection type: HDMI (standard port)
Electrical parameters:
Rated current: 1.5A
Rated voltage: 50V
Insulation resistance: >500MO
Dielectric strength: DC1000V
Contact resistance: <10mO
Material:
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: nickel plating/black electrophoretic paint
Contact material: Bronze (CuSn8)
Contact pin gold plating: 7um Au over Ni plating
Insulator material: PBTP 15% GR
Waterproof rubber ring: silicone
Environmental conditions:
Working temperature: -40~120Celsius
Storage temperature: -25~85Celsius
Atmospheric pressure: 86~106kPa
Relative humidity: <=90% RH
Mechanical parameters:
Insertion pressure: less than 10N
Withdrawal pressure: less than 10N
Service life: more than 1000 times

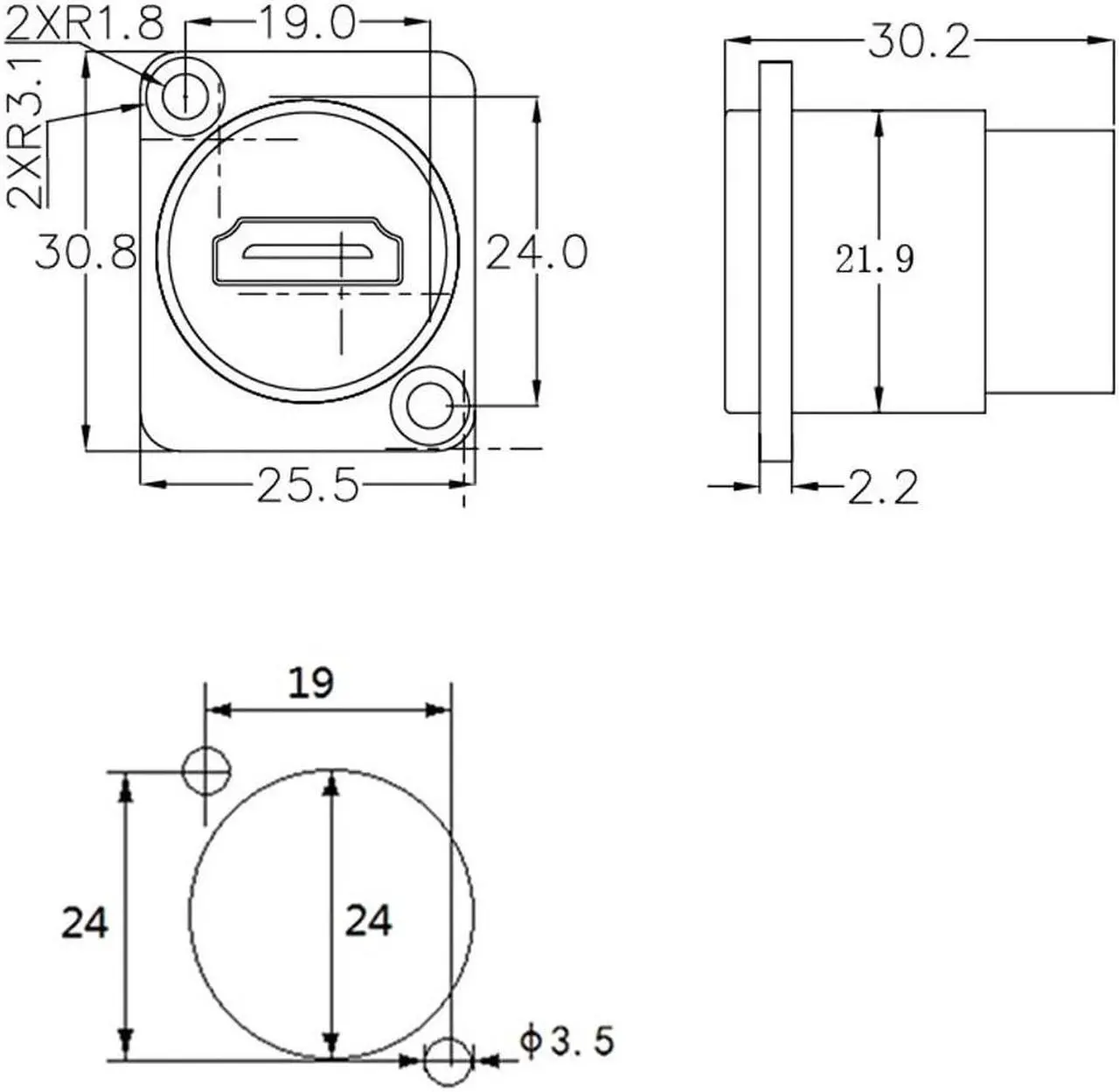

Installation panel thickness: min 2.0 mm-max 10mm
Base shape: D type
NOTE: The shielded industrial panel mount bulkhead includes a water/dust cap, that with characters of fire safety, compression, anti-explosion and anti-deformation, meets IP67 Water Protection. It is not waterproof without water/dust cap.
Package includes:

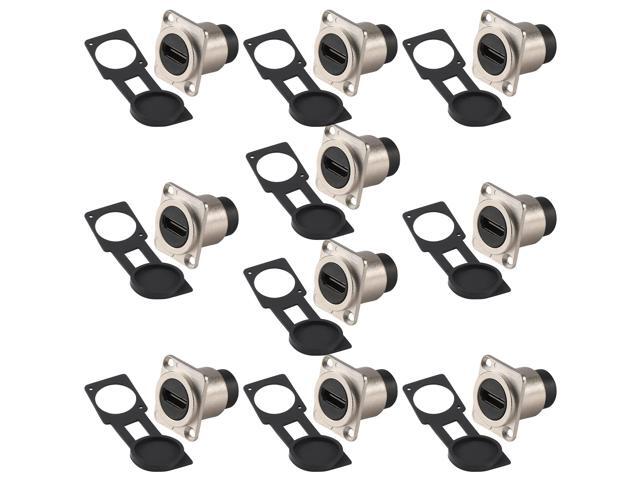

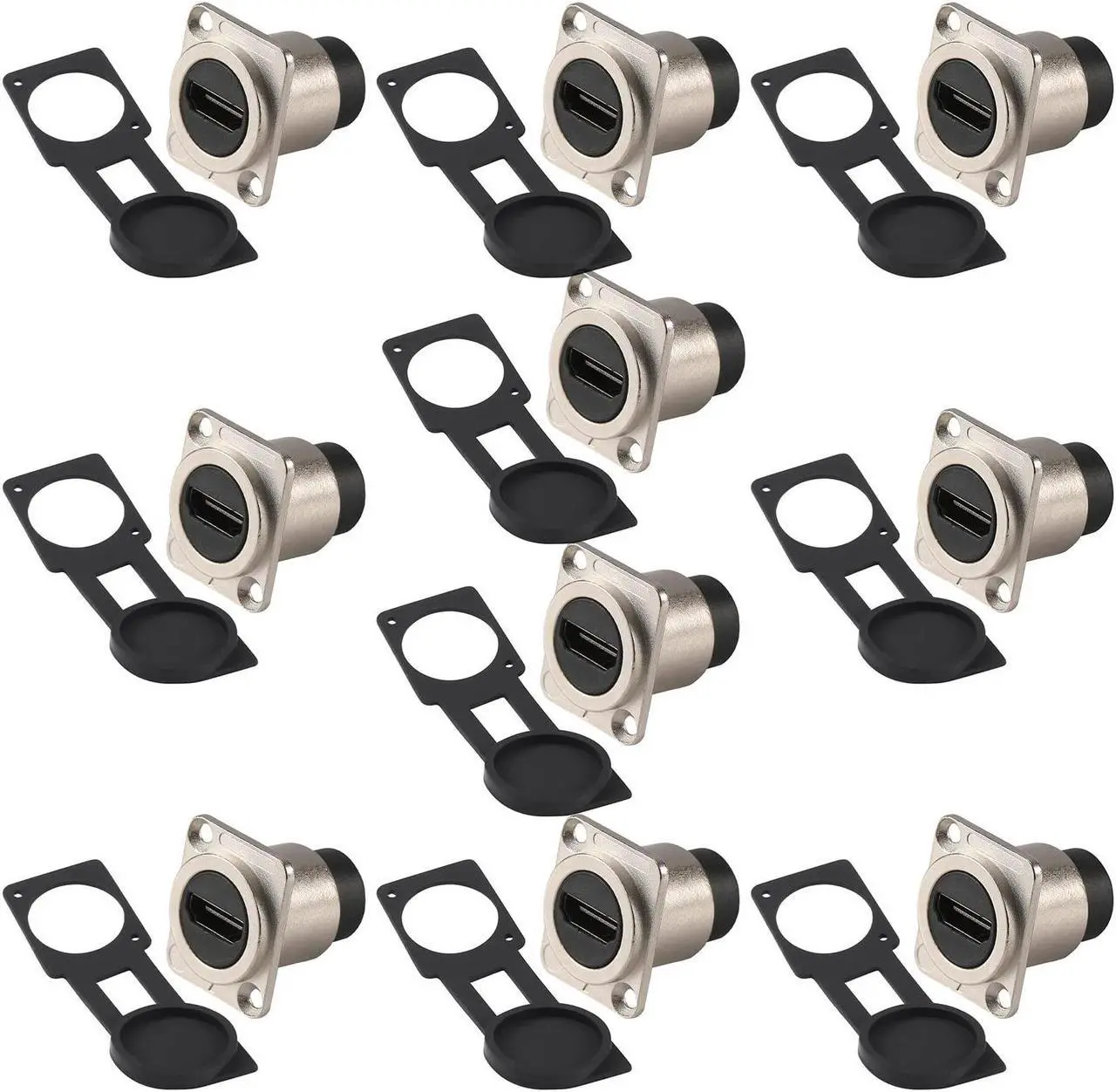

10 x Panel Mounting HDMI Waterproof Connector
10 x Waterproof dustproof cap
Specifications
:Number of cores: 19 pin
Waterproof rating: None (without waterproof cover), IP67 (with waterproof cover)
Connection type: HDMI (standard port)
Electrical parameters:
Rated current: 1.5A
Rated voltage: 50V
Insulation resistance: >500MO
Dielectric strength: DC1000V
Contact resistance: <10mO
Material:
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: nickel plating/black electrophoretic paint
Contact material: Bronze (CuSn8)
Contact pin gold plating: 7um Au over Ni plating
Insulator material: PBTP 15% GR
Waterproof rubber ring: silicone
Environmental conditions:
Working temperature: -40~120Celsius
Storage temperature: -25~85Celsius
Atmospheric pressure: 86~106kPa
Relative humidity: <=90% RH
Mechanical parameters:
Insertion pressure: less than 10N
Withdrawal pressure: less than 10N
Service life: more than 1000 times
Installation panel thickness: min 2.0 mm-max 10mm
Base shape: D type
NOTE: The shielded industrial panel mount bulkhead includes a water/dust cap, that with characters of fire safety, compression, anti-explosion and anti-deformation, meets IP67 Water Protection. It is not waterproof without water/dust cap.
Package includes:
10 x Panel Mounting HDMI Waterproof Connector
10 x Waterproof dustproof cap
