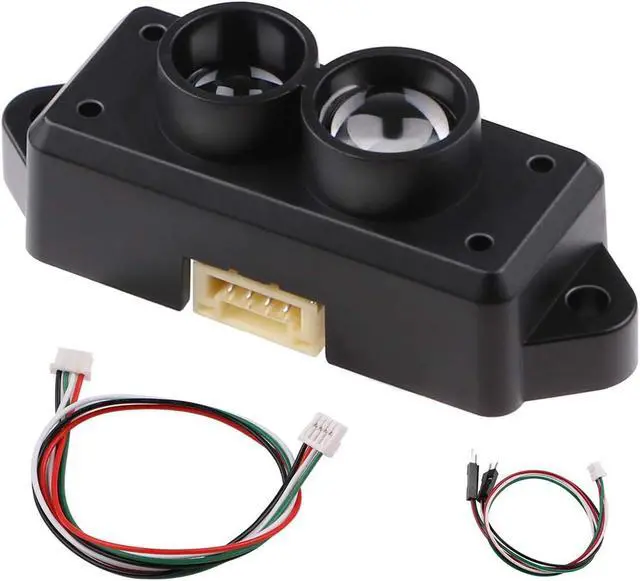

MakerFocus TFmini-s Micro Lidar Module 0.1-12M Lidar Range Finder Sensor Obstacle Avoidance Sensor Tiny Module Single Point UART I2C IO Compatible with Pixhawk Ar duino and Raspberry Pi

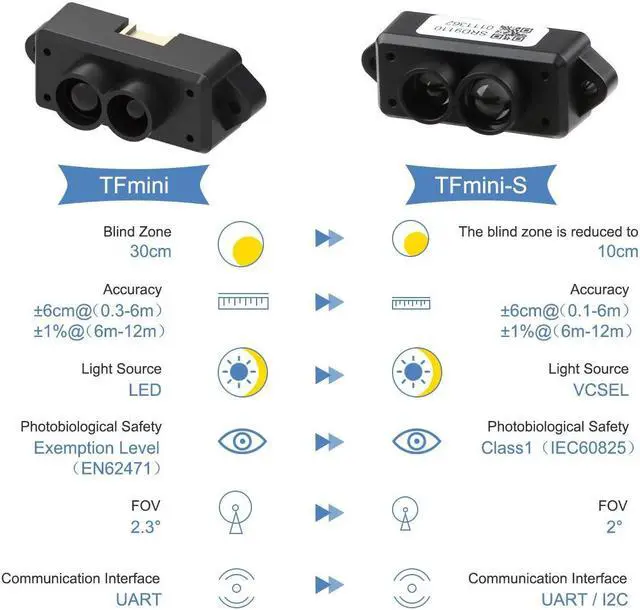

- Upgraded Lidar Module: TFmini-s is an upgraded single-point micro ranging module based on TFmini. The dead zone is shortened to 10 cm, and the outdoor performance and accuracy of different reflectances are improved

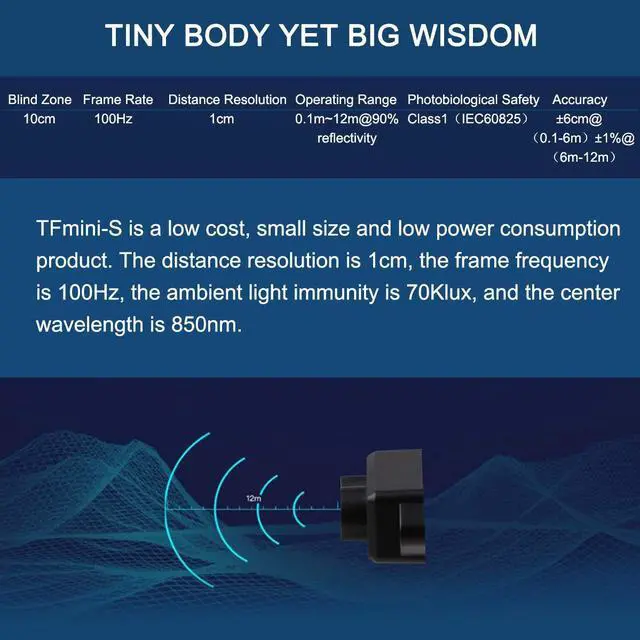

- Tiny Body Yet Big Wisdom: low-cost, small-size and low power consumption. Distance Resolution is 1cm, frame rate is 100Hz, ambient light immunity is 70Klux and central wavelength is 850nm
- Tiny Yet Powerful: It is based on ToF (Time of Flight) principle and integrated with unique optical and electrical designs, so as to achieve stable, precise, high sensitivity and high-speed distance detection
- Main Application Scenario: Pedestrian detection, vehicle detection, intelligent barrier gate and altimeter
- Note: TFmini-s version is UART by default. If you need I2C, please switch by yourself. It is compatible with Raspberry Pi and Arduino
- User Manual and Document: Please get the link from Product guides and documents below
+
+
