RP2040-LoRa Development Board, Integrates SX1262 RF Chip, Long-Range Communication, Includes LoRa Board, Antenna 850~930 and IPEX to SMA Adapter Cable and USB Type-C Adapter Board and FPC Cable

Overview

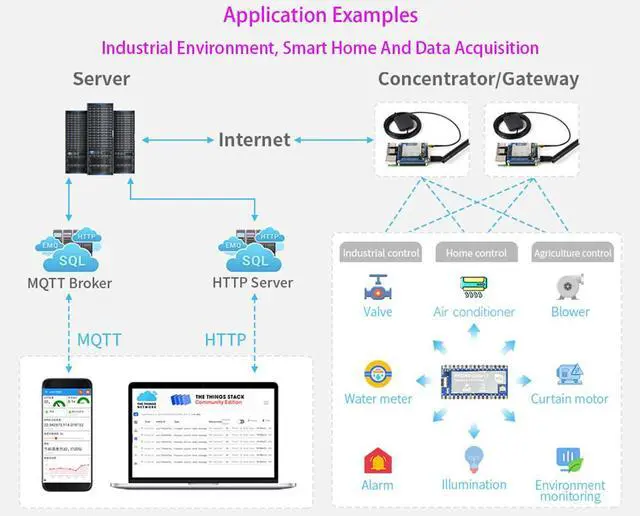

RP2040-LoRa adopts LoRa modulation technology to solve the problem in the traditional design solutions which can not balance distance, anti-interference, and power consumption at the same time. Combines with LoRa gateway for connecting Cloud Server such as TTN and ChirpStack for quick verification.
This HF version is 850 ~ 930MHz frequency, Applicable to Europe, North America and Oceania
And this kit version include USB Type-C Adapter Board + FPC Cable.

Features
RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
264KB of SRAM, and 2MB of onboard Flash memory

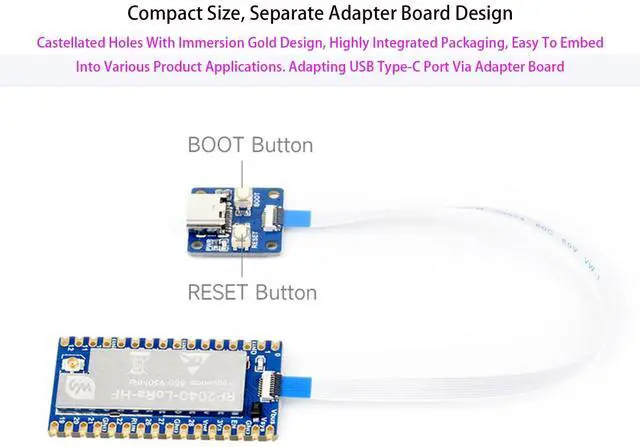

Onboard FPC 8PIN connector, adapting USB Type-C port via adapter board (Note: this basic version doesn't include USB port adapter board and FPC cable )
Castellated module allows soldering direct to carrier boards
USB 1.1 with device and host support
Low-power sleep and dormant modes

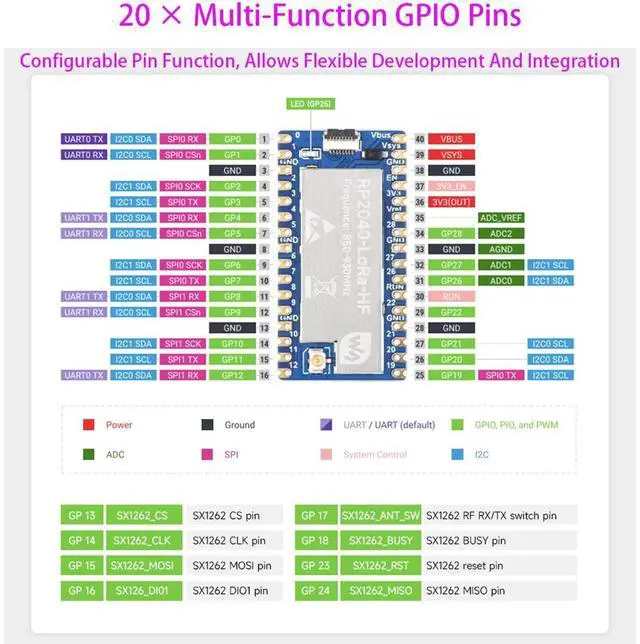

Drag-and-drop programming using mass storage over USB, up to 20 x multi-function GPIO pins
Supports FSK, GFSK, LoRa modulation, featuring better anti-blocking and ultra-long distance communication
With -148dBm high reception sensitivity and programmable emit power up to 22dBm
Supports preamble detection, with CRC, up to 256 bytes data packet engine
Comes with Online Resources and manual (example in C)

Specifications

RF chip: SX1262
Frequency range: 850 ~ 930MHz
Emit Power: 22dBm
Emitting current: 118mA@22dBm
receiving current: 5.3 mA@125KHz
Signal modulation: LoRa/ (G) FSK
Operating temperature: -40 ~ 85
Dimensions: 21.00 x 41.00 mm

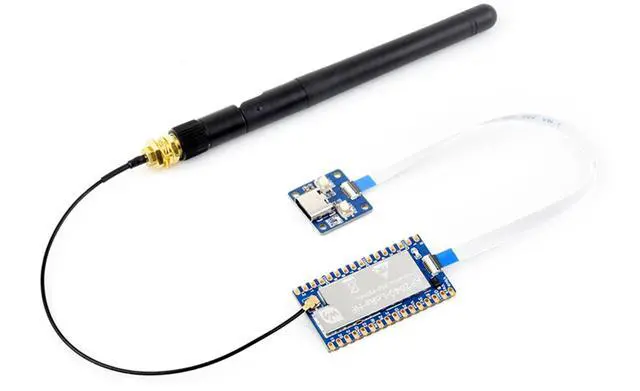

Package Content
RP2040-LoRa-HF x1
2DB antenna 850~930MHz ~11cm x1
IPEX 1 to SMA adapter cable ~17cm x1
USB Type-C adapter board x1
8PIN FPC cable ~15cm x1
