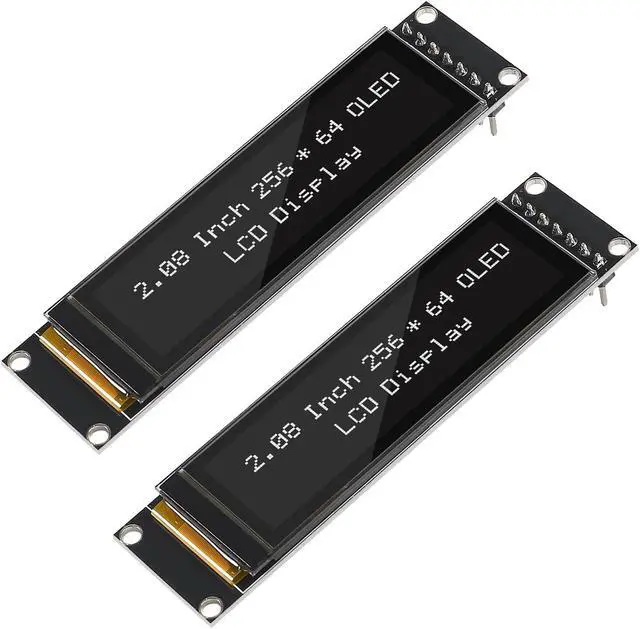

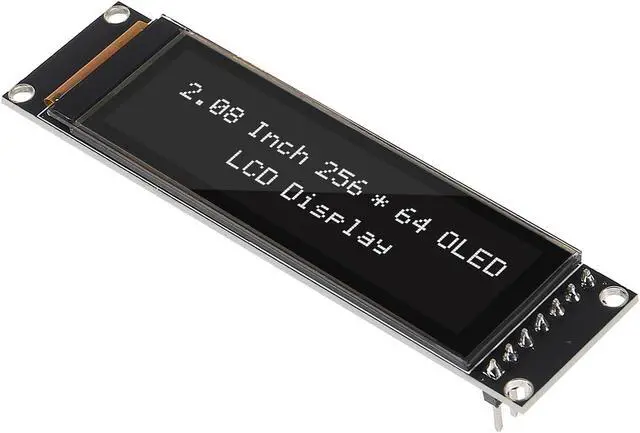

DWEII 2PCS 2.08" SH1122 256x64 OLED Display Module 2.08 Inch 256 * 64 OLED LCD Display SPI 7 Pin 4 Wires
- Driver chip: SH1122; Interface: 4-wire SPI
- OLED mode: negative, fully transparent
- Operating Temperature: -40degC~70degC ; Storage Temperature: -40degC~85degC
- Operating Voltage: 3.0-5V
- Resolution: 256x64; Display Color: White
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description:
Driver chip: SH1122
Interface: 4-wire SPI
Resolution: 256*64
Display size: 2.08 inches
Display color: White
OLED mode: negative, fully transparent
Grayscale type: supports 16 Levels of Crayscale
Working temperature: -40degC~70degC
Storage temperature: -40degC~85degC
Working voltage: 3.0 -5V
Module sizes: 75.5 mmx 19.35 mmx 5.9 mm
Viewing area: 53.18 mmx 14.78 mm
Effective area: 51.18 mmx 12.78 mm
Point distance: 0.20 mmx 0.20 mm

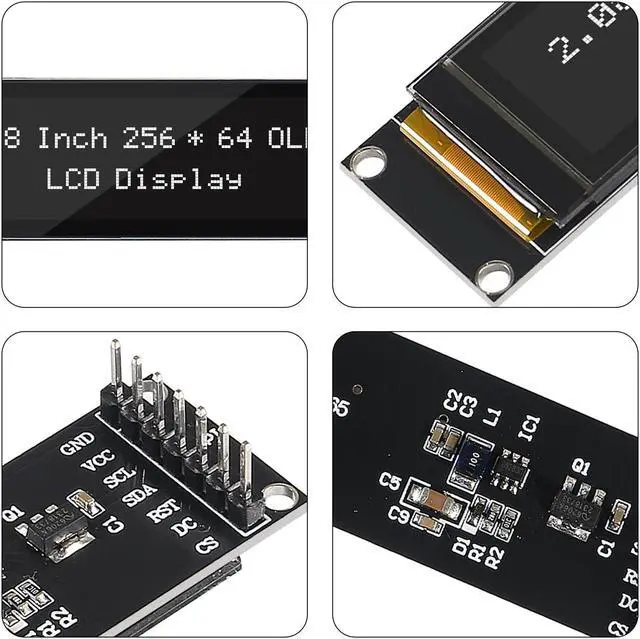

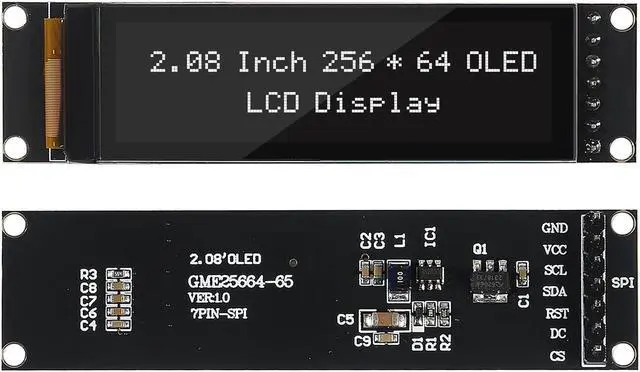

Dot size: 0.18 mmx 0.18 mmPin Definition:
1. GND power supply negative terminal
2. VIN power supply positive
3. SCL clock
4. SDA data
5. RES reset
6. DC commands/data
7. DS Chip selection
Driver chip: SH1122
Interface: 4-wire SPI
Resolution: 256*64
Display size: 2.08 inches
Display color: White
OLED mode: negative, fully transparent
Grayscale type: supports 16 Levels of Crayscale
Working temperature: -40degC~70degC
Storage temperature: -40degC~85degC
Working voltage: 3.0 -5V
Module sizes: 75.5 mmx 19.35 mmx 5.9 mm
Viewing area: 53.18 mmx 14.78 mm
Effective area: 51.18 mmx 12.78 mm
Point distance: 0.20 mmx 0.20 mm
Dot size: 0.18 mmx 0.18 mmPin Definition:
1. GND power supply negative terminal
2. VIN power supply positive
3. SCL clock
4. SDA data
5. RES reset
6. DC commands/data
7. DS Chip selection
