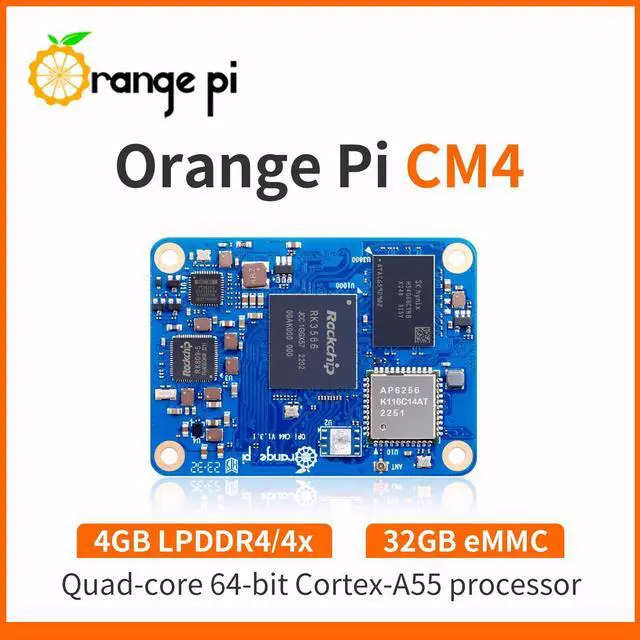

Orange Pi CM4 4G32GB RK3566 Quad Core 64 Bit Single Board Computer, Compute Module 4 with 32GB eMMC 1.8 GHz Frequency Wi-Fi & Bluetooth 5.0 Integrated RKNN NPU AI Accelerator (CM4 4G32G)
- [High Performance] - Orange Pi Compute Module 4 4gb is powered by Rockchip RK3566, a quad-core 64-bit Cortex-A55 processor, 22nm advanced process, up to 1.8GHz; integrated ARM Mali G52 2EE graphics processor, supporting OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1.
- [High Speed] - Orange Pi CM4 4g embedded high-performance 2D acceleration hardware; integrated RKNN NPU AI accelerator, 0.8Tops@INT8 performance, supporting Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/Darknet architecture model conversion with one click.
- [Abundant RAM & eMMC Memory] - 4GB (LPDDR4/4X), 32GB eMMC Memory
- [Wi-Fi 5+BT 5.0, BLE support] Built-in 2.4G/5G dual-band Wi-Fi 5 and Bluetooth 5.0, support BLE, enjoy wonderful network anytime, anywhere. Already equipped with on-board antenna, optional external antenna, more suitable for industrial grade applications.
- [Run Multiple Systems] - Orange Pi Compute Module 4 run Android 11, Ubuntu 22.04, Ubuntu 20.04, Debian 11, Debian 12, OpenHarm
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

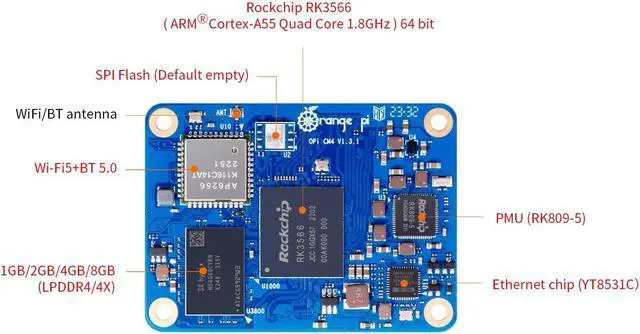

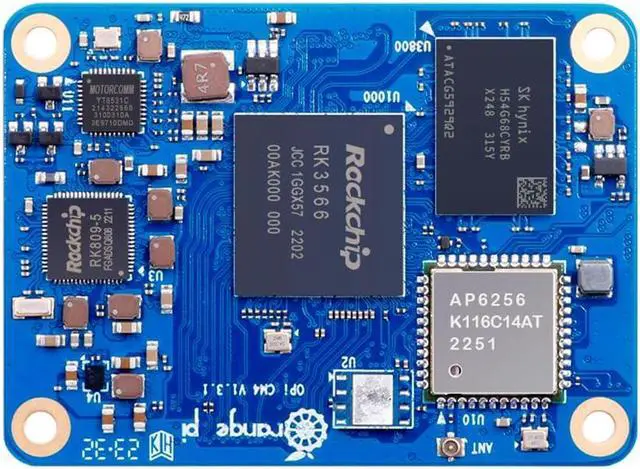

Orange Pi Compute Module 4
SoC: RockChip RK3566
CPU: Quad-core 64-bit Cortex-A55 processor, 22nm advanced process, up to 1.8GH z main frequency
GPU: ARM Mali G52 2EE graphics processor; Supports OpenGL ES 1.1 / 2.0 / 3.2, OpenCL 2.0, Vulkan 1.1; Embedded high performance 2D acceleration hardware
NPU: Integrated RKNN NPU AI gas pedal, 0.8T ops@INT8 performance; Supports Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/Darknet
VPU; 4K@60fps H. 265/H. 264/VP9 video decoding; 1080P@100fps H. 265 video encoding; 1080P@60fps H. 264 video encoding
PMU: RockChip RK809-5
RAM: 2GB/4GB/8GB (LPDDR4/4x)
Memory: On-board
eMMC: 16GB/32GB/64GB/128GB; SPI Flash: default empty post
Wi-Fi + Bluetooth: Wi-Fi 5+BT 5.0, BLE (20U5622)
Ethernet transceivers: 10/100/1000Mbps Ethernet (on-board PHY chip: YT8531C)

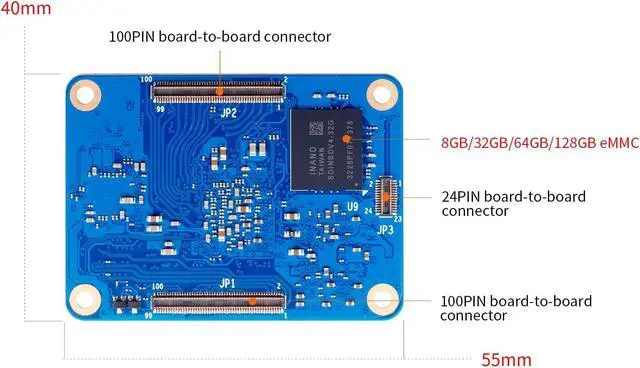

Interface: 100Pin*2, 24Pin*1, contains the following signals:
10/100/1000Mbps Ethernet MDI signals
1* HDMI 2.0 interface up to 4K@60fps
1* 2-lane MIPI DSI display interface
1* 4-lane MIPI DSI display interface
Embedded Display Port (eDP)
1* 4-lane MIPI CSI camera interface
SATA3 or PCIe
USB 3.0 *1+USB 2.0 *3
RESET, MASKROM, RECOVERY
Headphone jack Audio input and output signals
DC 5V input power supply, DC 3.3V and 1.8V output power supply
Supported OS: Android 11, Ubuntu 22.04, Ubuntu 20.04, Debian 11, Debian 12, OpenHarmony 4.0 Beta1, Orange Pi OS (Arch), Orange Pi OS (OH) based on OpenHarmony and other operating systems.
PCB Size: 55X40mm
SoC: RockChip RK3566
CPU: Quad-core 64-bit Cortex-A55 processor, 22nm advanced process, up to 1.8GH z main frequency
GPU: ARM Mali G52 2EE graphics processor; Supports OpenGL ES 1.1 / 2.0 / 3.2, OpenCL 2.0, Vulkan 1.1; Embedded high performance 2D acceleration hardware
NPU: Integrated RKNN NPU AI gas pedal, 0.8T ops@INT8 performance; Supports Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/Darknet
VPU; 4K@60fps H. 265/H. 264/VP9 video decoding; 1080P@100fps H. 265 video encoding; 1080P@60fps H. 264 video encoding
PMU: RockChip RK809-5
RAM: 2GB/4GB/8GB (LPDDR4/4x)
Memory: On-board
eMMC: 16GB/32GB/64GB/128GB; SPI Flash: default empty post
Wi-Fi + Bluetooth: Wi-Fi 5+BT 5.0, BLE (20U5622)
Ethernet transceivers: 10/100/1000Mbps Ethernet (on-board PHY chip: YT8531C)
Interface: 100Pin*2, 24Pin*1, contains the following signals:
10/100/1000Mbps Ethernet MDI signals
1* HDMI 2.0 interface up to 4K@60fps
1* 2-lane MIPI DSI display interface
1* 4-lane MIPI DSI display interface
Embedded Display Port (eDP)
1* 4-lane MIPI CSI camera interface
SATA3 or PCIe
USB 3.0 *1+USB 2.0 *3
RESET, MASKROM, RECOVERY
Headphone jack Audio input and output signals
DC 5V input power supply, DC 3.3V and 1.8V output power supply
Supported OS: Android 11, Ubuntu 22.04, Ubuntu 20.04, Debian 11, Debian 12, OpenHarmony 4.0 Beta1, Orange Pi OS (Arch), Orange Pi OS (OH) based on OpenHarmony and other operating systems.
PCB Size: 55X40mm
