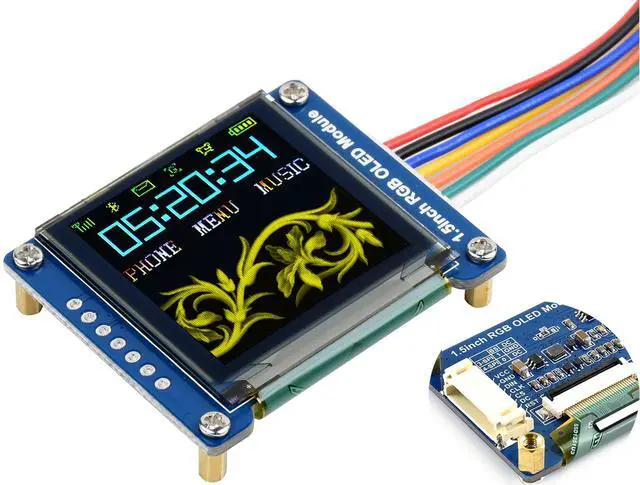

1.5inch RGB OLED Display Module 128x128 Pixels, 65K RGB Display Colors, SPI Interface Compatible with Raspberry Pi 5/ Pi 4B/ Pi 3B+ Pi3B/ Pi Zero/Pi Zero 2W/Arduino/STM32, etc.
- Waveshare 1.5inch RGB OLED Display Module, 128x128 resolution OLED display, 65K RGB colors, clear and colorful displaying effect
- SPI interface. This module selects 4wire-SPI and 3wire-SPI as the communication method, which reduces the area of the module and saves the IO resources of the controller.
- Operating voltage: 3.3V/5V(Please ensure that the power supply voltage and logic voltage are consistent, otherwise it will not work properly)
- The built-in driver used by this OLED is SSD1351, which is a 128RGB * 128 Dot Matrix OLED/PLED controller with a 128*128*18bit SRAM as a display buffer area, which supports two color depths of 262k and 65k. And supports 8bit 8080 parallel, 8bit 6800 parallel, 3wire-SPI and 4wire-SPI and other communication methods.
- Comes with Online Development Resources (examples for Raspberry Pi/Arduino/STM32), Please check: n9.cl/gi1pu
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

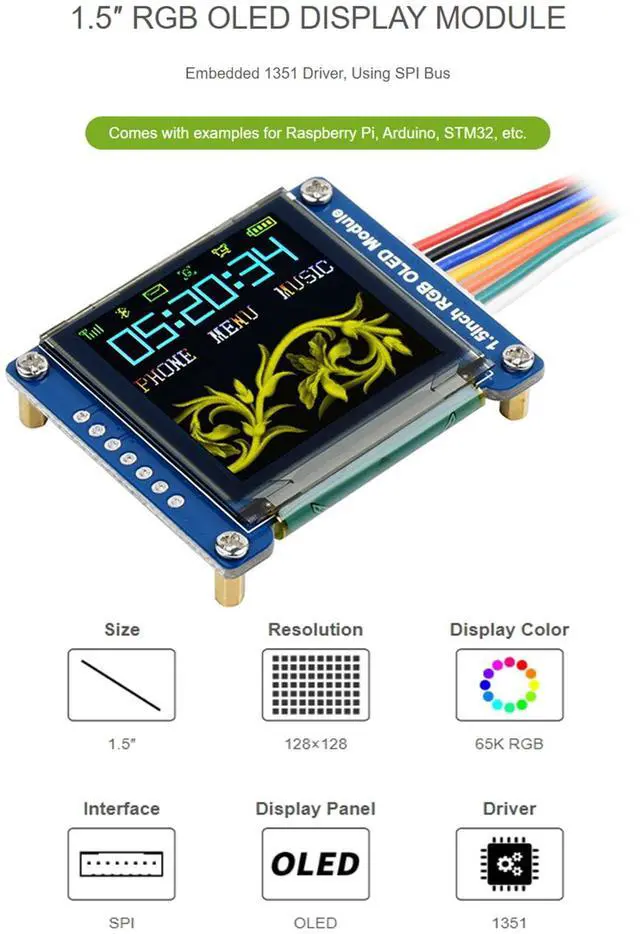

1.5 inch RGB OLED Display Module, embedded 1351 driver, using SPI bus
Features
128x128 resolution OLED display, 65K RGB colors, clear and colorful displaying effect
SPI interface, minimizes required IO pins
Comes with Online Development Resources (examples for Raspberry Pi/Arduino/STM32), Please
check: n9. cl/gi1pu
Display Panel: OLED
Operating voltage: 3.3V /5V
Resolution: 128x128 pixels
Communication Interface: 3/4-wire SPI
Driver: 1351
Display size: 26.86 x 26.86 mm
Pixel size: 0.045 x 0.194 mm
Dimensions: 44.5 x 37.0 mm
Package Content
1.5 inch RGB OLED Module x1
PH 2.0 7PIN cable x1
Features
128x128 resolution OLED display, 65K RGB colors, clear and colorful displaying effect
SPI interface, minimizes required IO pins
Comes with Online Development Resources (examples for Raspberry Pi/Arduino/STM32), Please
check: n9. cl/gi1pu

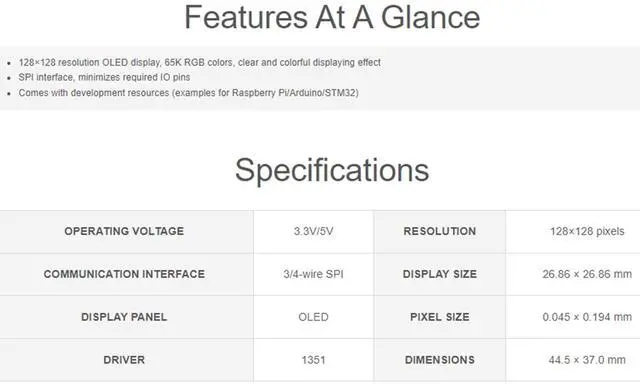

Specifications
Display Panel: OLED
Operating voltage: 3.3V /5V
Resolution: 128x128 pixels
Communication Interface: 3/4-wire SPI
Driver: 1351
Display size: 26.86 x 26.86 mm
Pixel size: 0.045 x 0.194 mm
Dimensions: 44.5 x 37.0 mm
Package Content
1.5 inch RGB OLED Module x1
PH 2.0 7PIN cable x1
