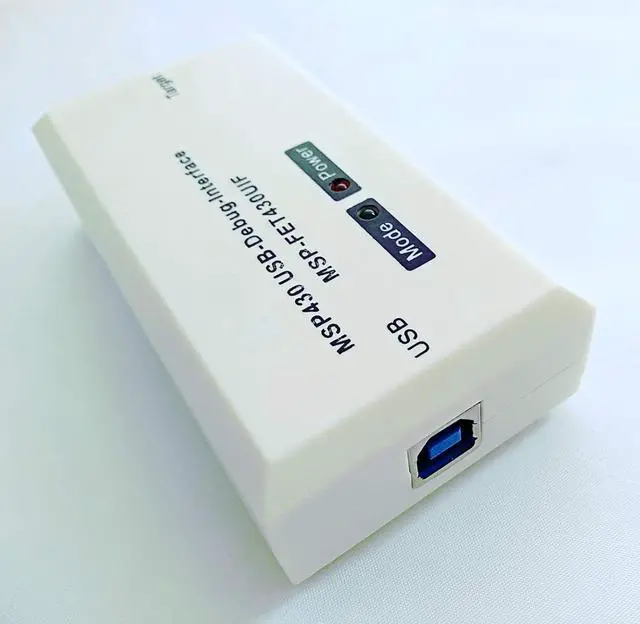

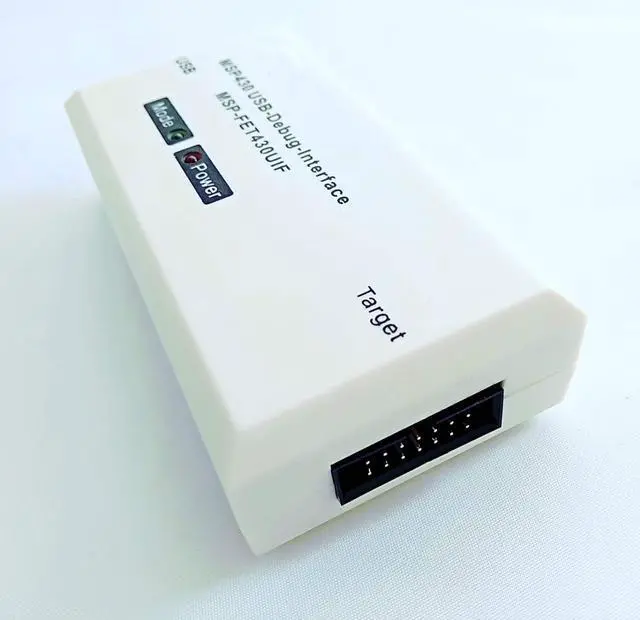

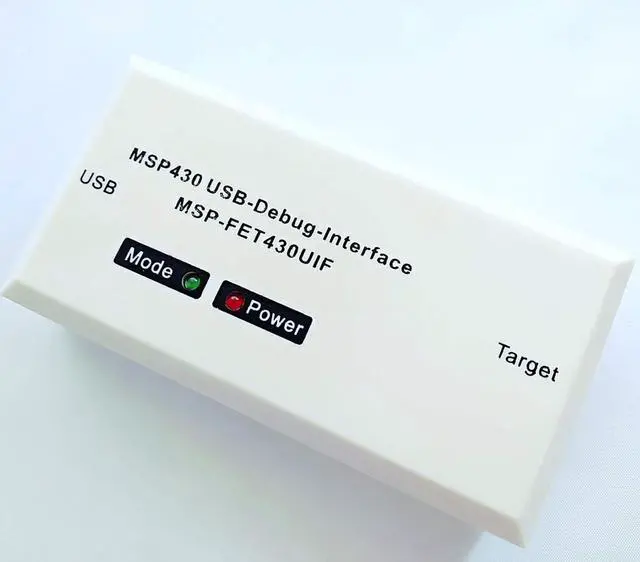

ICTOLTOL JTAG Emulator Programmer Debugger for MSP430 MSP-FET430UIF LSD-FET430UIF Support JTAG BSL SBW
- This 430 is a powerful flash emulation tool to get started with application development quickly on the MSP430 MCU.
- It includes USB debugging interface used to program & debug the MSP430 in-system via the JTAG interface or the pin saving Spy Bi-Wire (2-wire JTAG) protocol. The flash memory can be easily erased and reprogrammed in seconds with only a few keystrokes.
- The MSP430 flash is ultra-low power, so no external power supply is required.
- This debugging tool interfaces the MSP430 to the included integrated software environment and includes code to start your design immediately.
- The MSP LSD-FET430UIF development tools supports development with all MSP430 flash devices.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features: *The USB Debugging Interface is compatible with IAR Version 3.21 or higher. *Via USB debugging interface (MSP-FET430UIF), a flash-based MSP430 MCU can be connected to a PC for real-time, in-system programming and debugging *Operating system: it can support Windows XP, Windows Vista, Windows 7 (32 & 64-bit) *Technical
configurable supply voltage: between 1.8 and 3.6 volts at 100mA -Supports JTAG Security Fuse blow to protect code -Supports all MSP430 boards with JTAG header -Supports both JTAG and Spy-Bi-Wire (2-wire JTAG) debug protocols

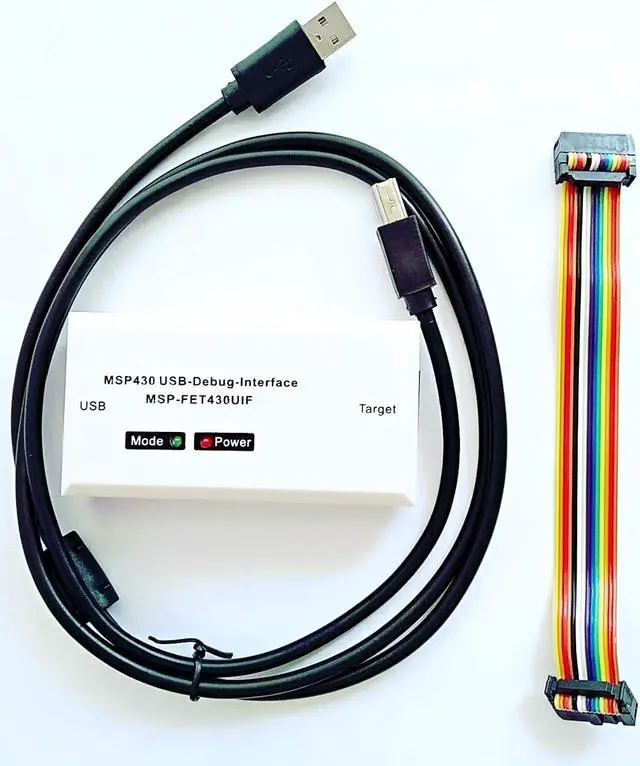

Package include: one pcs MSP 430 debugger one pcs USB cable one pcs14-pin Flat cable one
DVD disk (please note: sometimes Post Office inspect parcel carefully and remove disk, so we can send you download link or send documents via email) (please make sure your email box can receive attachments)
Specifications
: -Softwareconfigurable supply voltage: between 1.8 and 3.6 volts at 100mA -Supports JTAG Security Fuse blow to protect code -Supports all MSP430 boards with JTAG header -Supports both JTAG and Spy-Bi-Wire (2-wire JTAG) debug protocols
Package include: one pcs MSP 430 debugger one pcs USB cable one pcs14-pin Flat cable one
DVD disk (please note: sometimes Post Office inspect parcel carefully and remove disk, so we can send you download link or send documents via email) (please make sure your email box can receive attachments)
