YCKJ Professional Smart Tank Car Chassis with High Torque DC Motors, TP200 Remote Control Metal Robotic Platform Robot Accessories Kit for Arduino Uno, Raspberry Pie, STM32, DIY STEAM Education
- [(Solid Metal Structure)] This robot tank car chassis has a 3mm thick metal plate, which is very strong and can bear 5kg. The metal panel has many installation holes to assemble servos, controllers, sensors, and other electronic parts. In addition, the car panel can be installed with a 25mm/37mm motor bracket, which can be installed as a wheeled four-wheel drive trolley. What is even more surprising is that 2 LED lights are designed on the panel, and the whole car looks very beautiful and generous.
- [(High Torque DC Motor)] Motor is the core for the robot tank car chassis. 2pcs high torque encoder DC motor is used for this robot tank car chassis TP200. One can get the speed feedback by the Arduino UNO R3 / Raspberry pie / Micro-bit programming.

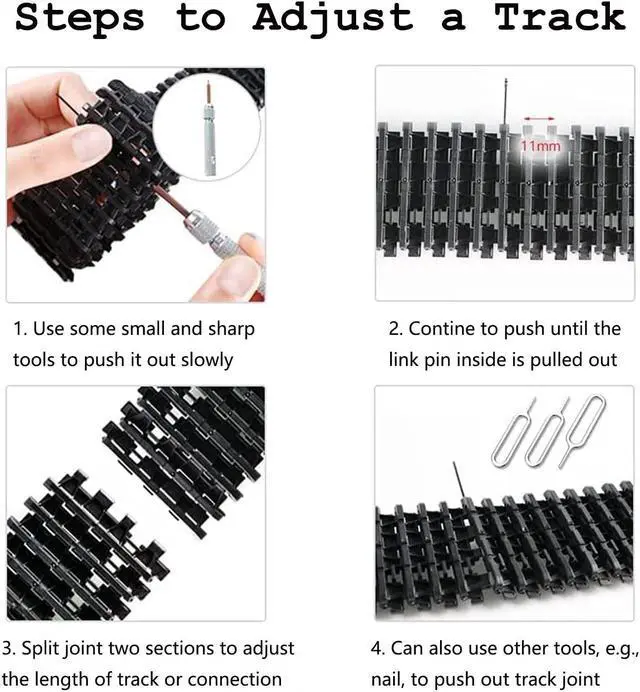

- [(Flexible Design)] This tank car chassis has a beautiful design. 1) The length of track can be adjustable by the requirements. Since different people needs different length of track or for the backup. 2)In the panel design, we reserved in
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

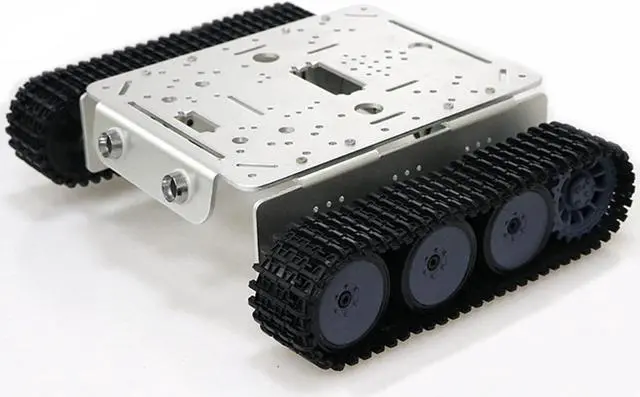

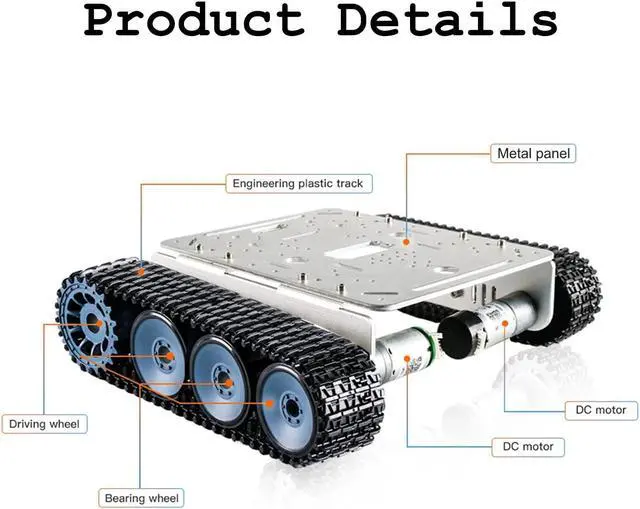

Features: Newly designed aluminum alloy tank chassis, beautiful and sturdy; This chassis can move forward flexibly, backwards, left, right, rotate, etc; The tank chassis is equipped with two high-power motors, which has a speed feedback function; The tank car chassis reserves ample space for the installation control kit, and large development space; The robot chassis has 2pcs LED lights to illuminate the night;

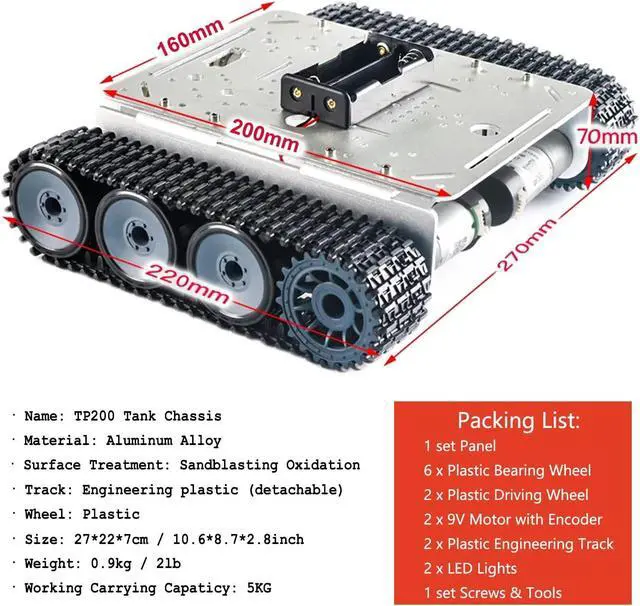

Tank Chassis Parameters:
Name: TP200 tank chassis
Material: Aluminum alloy
Surface treatment: Sandblasting oxidation
Color: Silver
Track: Engineering plastic
Wheel: Plastic
Size: 27*22*7cm/ 10.6 * 8.7 * 2.8 inch
Weight: 0.9 kg Maximum Load: 5kg

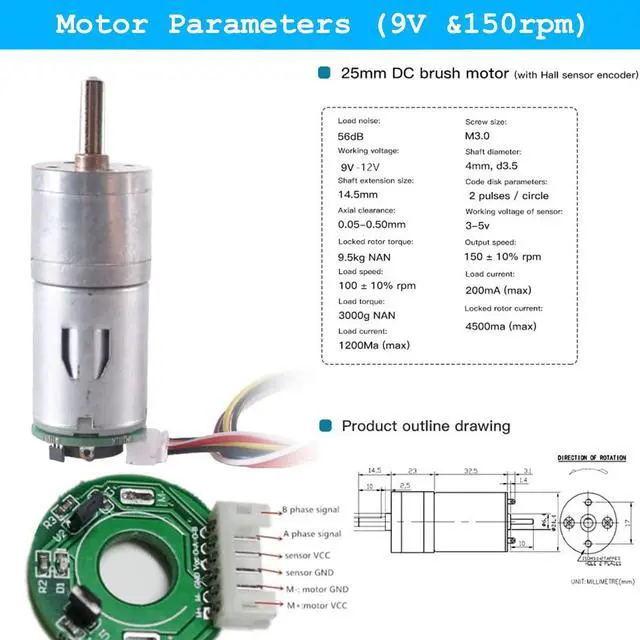

Motor Parameters:
Name: 25mm gear motor
Output speed: 150+-10%rpm
No_load current: 200mA (Max)
Stall current: 4500mA (max)
Stall torque: 9.5 kgNaN
Rated speed: 100+-10%rpm
Rated torque: 3000gNaN
Rated current: 1200mA (Max)
Noise: 56dB
Working voltage: 9-12V
Outside shaft length: 14.5 mm
Shaft end play: 0.05 - 0.50 mm
Screw size: M 3.0
Shaft diameter:
phi: 4mm, D 3.5
Code wheel parameters: 2 pulses/circle
Encoder Parameters:
Type: AB-phase incremental hall encoder
Line speed: 150 (measured by reducer output shaft)
Supply voltage: 5V Interface type: PH 2.0 (standard motor cable)
Shipping List: 1set Metal part 6pcs Plastic bearing wheel 2pcs Plastic driving wheel 2pcs Plastic track 2pcs LED lights 1set Screws & tools
Note: In order to facilitate transportation, the product is not assembled. More documents can be downloaded at wiki. doit. am.
Tank Chassis Parameters:
Name: TP200 tank chassis
Material: Aluminum alloy
Surface treatment: Sandblasting oxidation
Color: Silver
Track: Engineering plastic
Wheel: Plastic
Size: 27*22*7cm/ 10.6 * 8.7 * 2.8 inch
Weight: 0.9 kg Maximum Load: 5kg
Motor Parameters:
Name: 25mm gear motor
Output speed: 150+-10%rpm
No_load current: 200mA (Max)
Stall current: 4500mA (max)
Stall torque: 9.5 kgNaN
Rated speed: 100+-10%rpm
Rated torque: 3000gNaN
Rated current: 1200mA (Max)
Noise: 56dB
Working voltage: 9-12V
Outside shaft length: 14.5 mm
Shaft end play: 0.05 - 0.50 mm
Screw size: M 3.0
Shaft diameter:
phi: 4mm, D 3.5
Code wheel parameters: 2 pulses/circle
Encoder Parameters:
Type: AB-phase incremental hall encoder
Line speed: 150 (measured by reducer output shaft)
Supply voltage: 5V Interface type: PH 2.0 (standard motor cable)
Shipping List: 1set Metal part 6pcs Plastic bearing wheel 2pcs Plastic driving wheel 2pcs Plastic track 2pcs LED lights 1set Screws & tools
Note: In order to facilitate transportation, the product is not assembled. More documents can be downloaded at wiki. doit. am.
