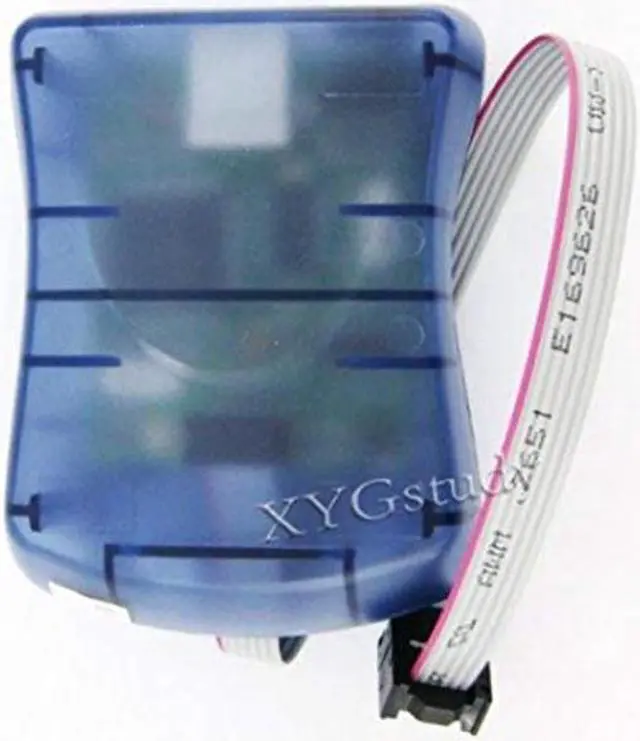

    Compatible Atmel AT AVRISP mkII AVR ISP mk2 USB MCU AVR XMEGA In-System Programmer Studio 4/5/6 ISP PDI interface @XYGStudy

    • Part Number: USB AVRISP XPII. Category: AVR ISP programmer
    • Compatible with: AT AVRISP mkII from ATMEL

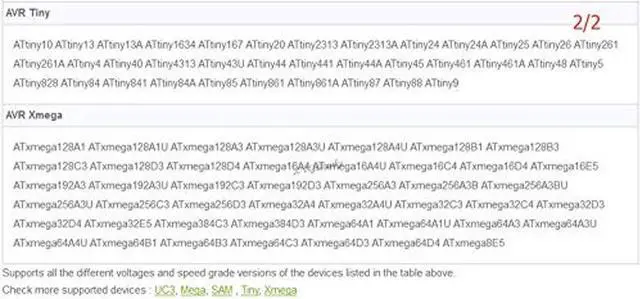

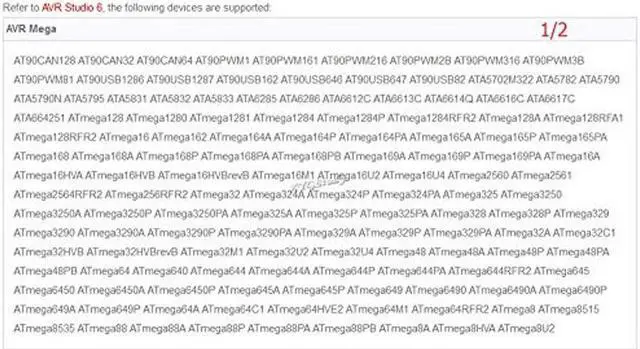

    • Supports: all AVR devices with ISP or PDI interface, including XMEGA
    • Supports AVR Studio 4/5/6 or higher version (delivered with firmware for AVR Studio 5, can be updated to support other AVR Studio versions)
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Description:

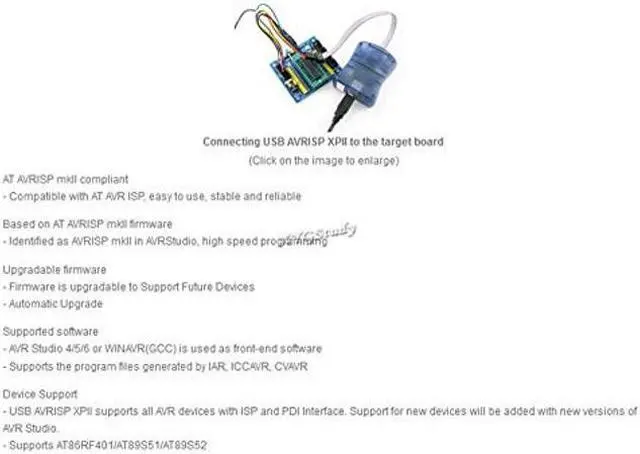

    AVR ISP Programmer, compatible with AT AVRISP mkII from ATMEL
    A professional In-System Programmer. Supports all AVR devices with ISP or PDI interface, including XMEGA
    Supports AVR Studio 4/5/6 or higher version (delivered with firmware for AVR Studio 5, can be updated to support other AVR Studio versions)

    Features:
    * Supports all AVR devices with ISP or PDI interface, and certain 51 Devices
    * Programs both flash and EEPROM
    * Supports fuses and lock bit programming
    * Upgradeable to support future devices
    * Support target voltages from 1.8V to 5.5V
    * Adjustable ISP programming speed (50Hz to 8MHz SCK frequency)
    * USB 2.0 compliant (full speed, 12Mbps)
    * Powered from USB, does not require external power supply
    * Target interface protection
    * Short-circuit protection
    * Supports all AVR devices with ISP or PDI interface
    * Supports AVR Studio or WINAVR (GCC)
    * Supports the program files generated by IAR, ICCAVR, CVAVR

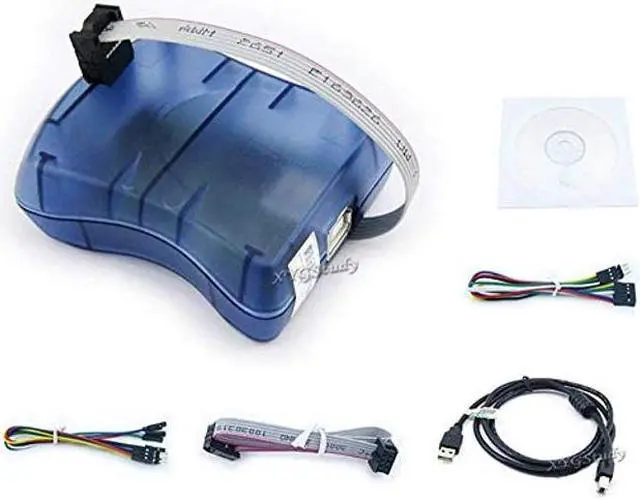

    Package Contains:
    USB AVRISP XPII*1
    USB Cable*1
    6-pin cable (spare) *1
    6-pin to 10-pin ISP cable*1
    6-wire multicolour custom connector cable*1

    For more details you may need to know, pls firstly send me message via,
    I will then send attached link including User Guide for you, thank you for patience.: )
