STLINK-V3MINIE Stand-Alone in-Circuit Debugger and Programmer for STM32 Onboard JTAG SWD Interface Connector Based on MCU Arm Cortex-M STM32 32-bit Microcontroller @XYGStudy
- Part Number: STLINK-V3MINIE

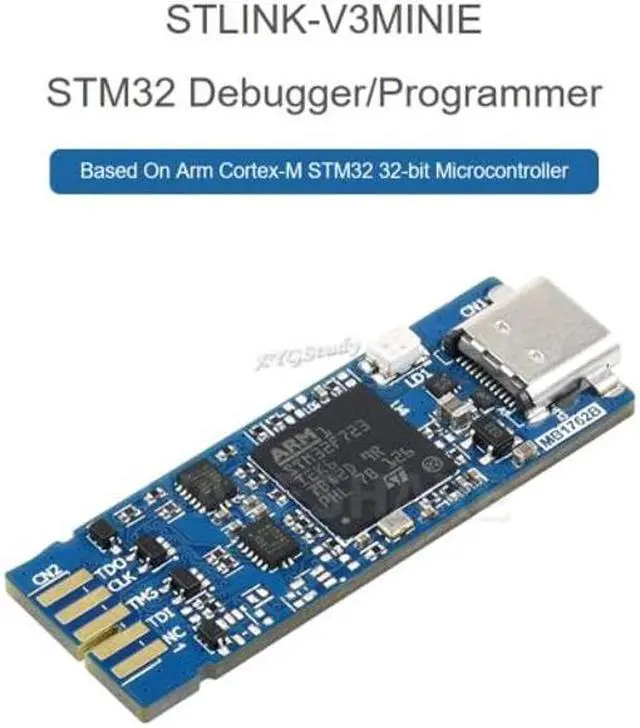

- STLINK-V3MINIE, In-Circuit Debugger And Programmer For STM32, Based on Arm Cortex-M STM32 32-bit Microcontroller

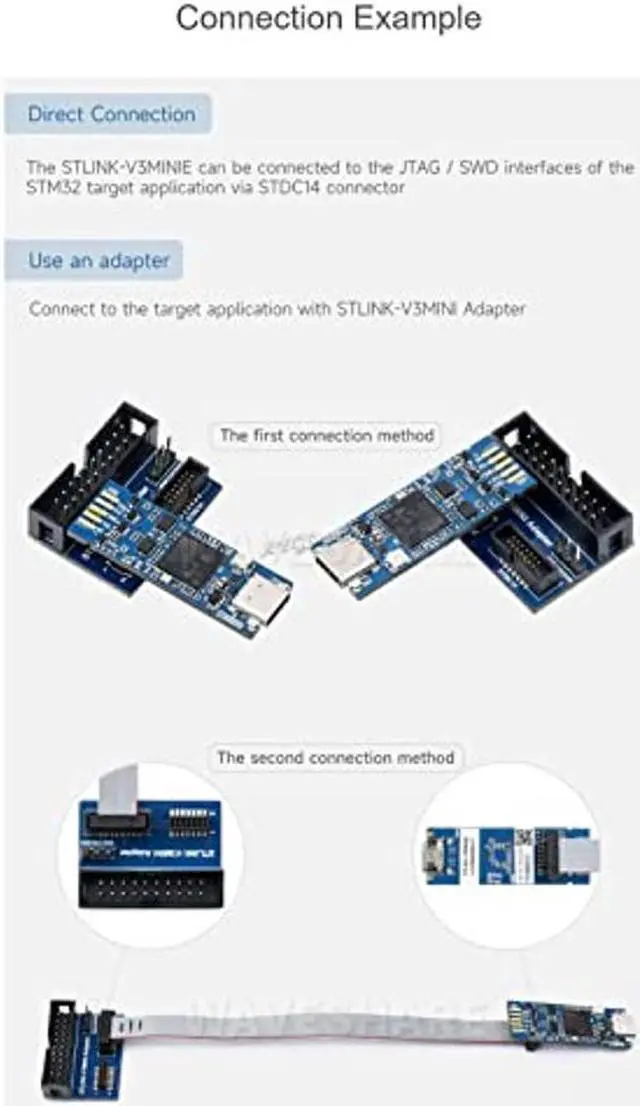

- The STLINK-V3MINIE is a stand-alone debugging and programming tiny probe for STM32 microcontrollers, portable and easy-to-use. Onboard JTAG/SWD interfaces for communicating with STM32 microcontroller, also provides a virtual COM port for the host PC to communicate with the target microcontroller through one UART.

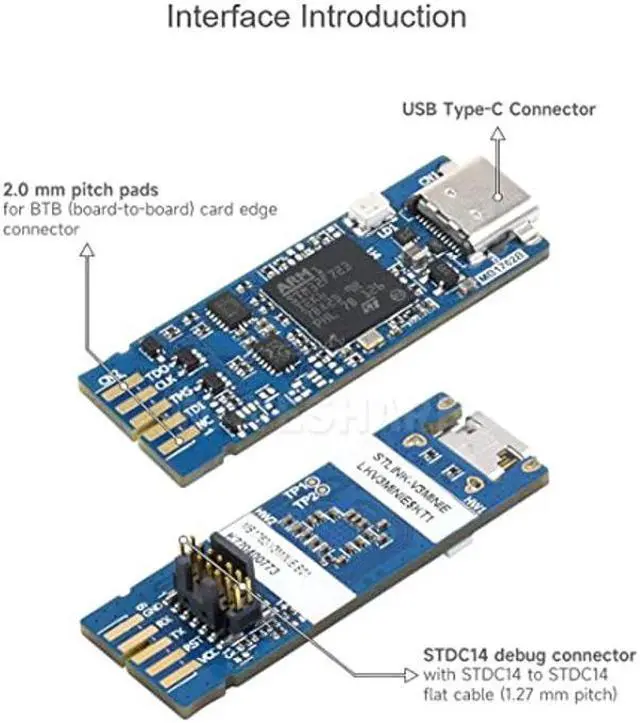

- Self-powered through a USB Type-C connector. USB 2.0 high-speed interface. Probe firmware is updatable through USB. Support drag-and-drop Flash programming of binary files
- Two color LEDs: communication, power. JTAG communication support up to 21 MHz. SWD (Serial Wire Debug) and SWV (Serial Wire Viewer) communication support up to 24 MHz
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview
STLINK-V3MINIE, In-Circuit Debugger And Programmer For STM32, Based on Arm Cortex-M STM32 32-bit Microcontroller

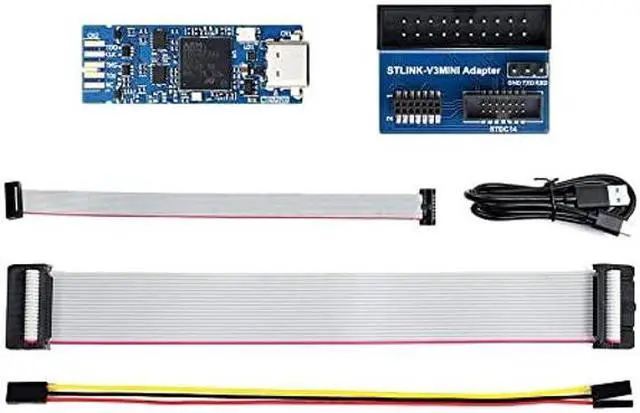

Package Contains
STLINK-V3MINIE x 1
For more resources you may need, pls contact me via message, i will send you then via attachment.
STLINK-V3MINIE, In-Circuit Debugger And Programmer For STM32, Based on Arm Cortex-M STM32 32-bit Microcontroller
Package Contains
STLINK-V3MINIE x 1
For more resources you may need, pls contact me via message, i will send you then via attachment.
