AV Access HDMI USB Extender(HDBaseT) KVM, 100m/330ft 4K 60Hz 1080p 120Hz Over Cat5e/6/6a/7, Keyboard+Mouse+HDMI+USB, 4 Ports USB2.0, No Signal Loss and Latency, RS232, POE, Independent EDID Management

Be the first to review this product...

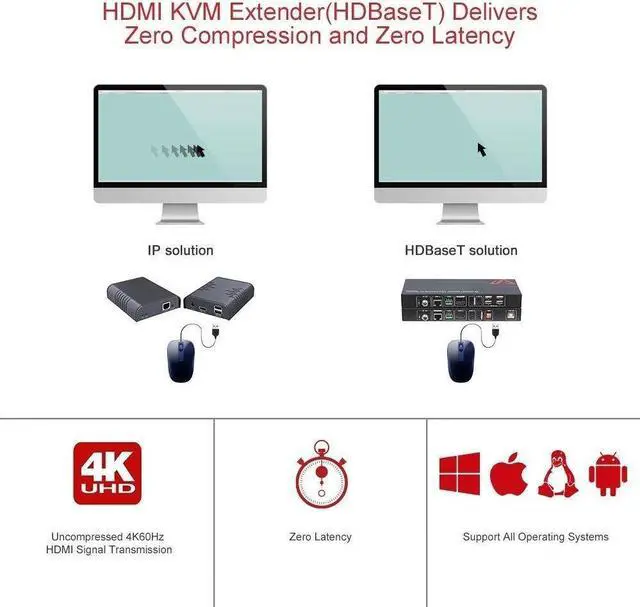

[(4K@60Hz and 1080P@120Hz over 100m)] With the HDBaseT 2.0 uncompressed technology, the device can extend 4K@60Hz ultra HD (YUV4:2:0 8bit) HDMI signal over single Cat 5e/6/6a/7 cable up to 330ft/100m. With audio input/output ports both on transmitter and receiver, it also supports bi-directional 3.5mm stereo pass through.
[(High-speed USB 2.0 up to 480Mbps)] It provides remote source PC control with keyboard and mouse, interactive display operation, data transmission and USB streaming over distances up to 330ft/100m. High-speed USB 2.0 up to 480Mbps pass through over HDBaseT with zero delay.

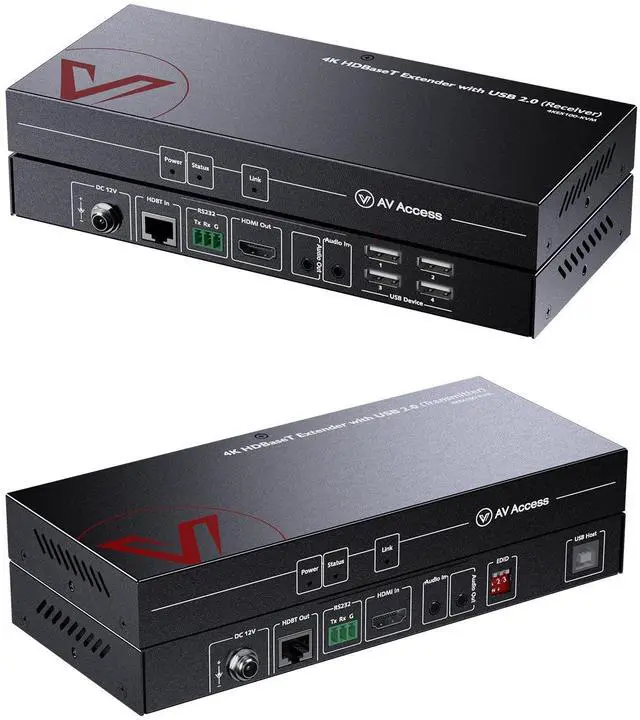

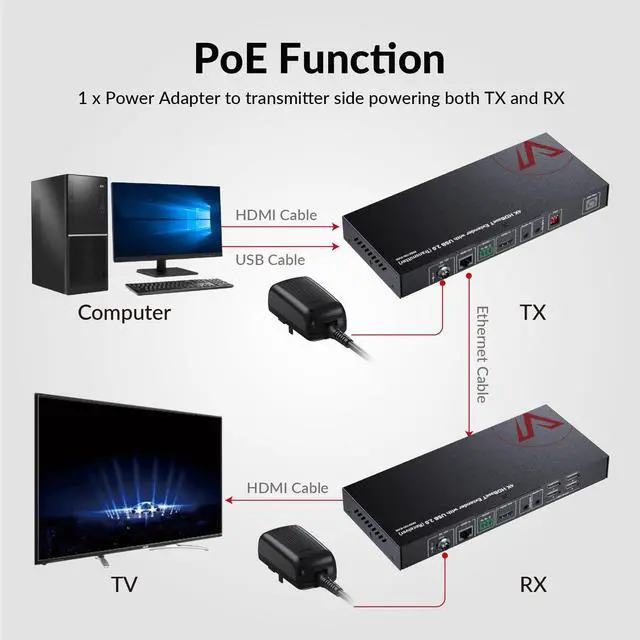

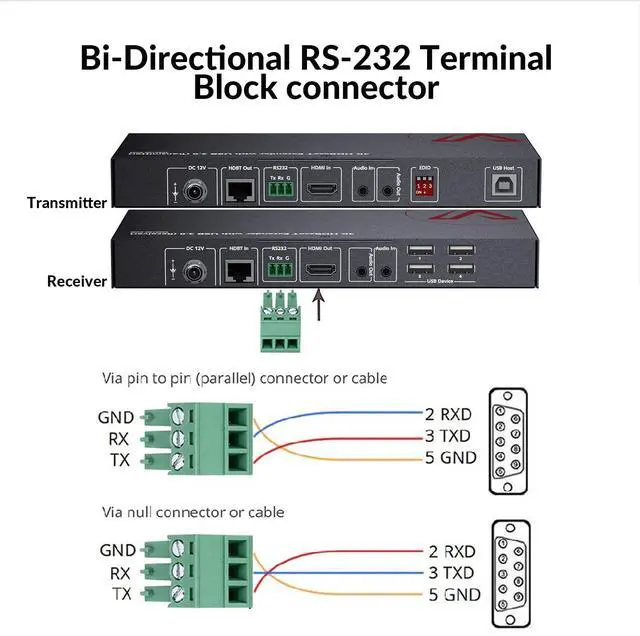

[(Main Functions)] No video loss, no time delay, with one way PoE(from transmitter to receiver), RS232 pass through over HDBaseT; DIP switch for EDID management; USB 2.0 pass through,1 x USB-Host connector built in transmitter and 4 x USB-Devices connector built in receiver;
[(NOTE: It doesn't support HDCP)] when connecting 2 or above USB devices to the receiver, please make sure that each p
