SIM7600G-H 4G HAT Module for Raspberry Pi and PC,Support LTE Cat-4 4G 3G 2G Communication and GNSS Positioning,Global Band,up to 50Mbps Uplink, 150Mbps Downlink
- Connected via pogo pin or MicroUSB connector: 1)Dedicated pogo pin for Raspberry Pi Zero/Zero W. 2)MicroUSB connector for other Raspberry Pi boards or PC.
- Incorporates SIM7600G-H global band 4G module, compatible with 2G/3G/4G network with global support. USB HUB connector for other Raspberry Pi boards or PC, providing USB extension and 4G network access.
- Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc. Supports GPS, BeiDou, Glonass, LBS base station positioning.
- SIM card slot, supports 1.8V/3V SIM card. Onboard audio jack and audio decoder for making telephone call. Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT.
- 2x LED indicators, easy to monitor the operating status. Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set). Comes with development resources and manual (examples for Raspberry Pi)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

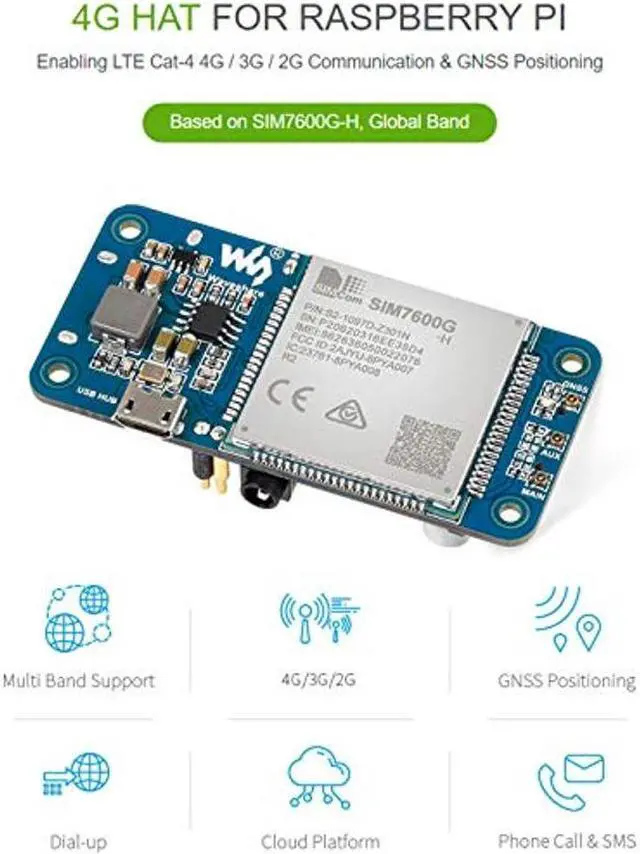

SIM7600G-H 4G HAT (B) For Raspberry Pi, LTE Cat-4 4G / 3G / 2G Support, GNSS Positioning, Global Band
1.4G HAT FOR RASPBERRY PI
Enabling LTE Cat-4 4G / 3G / 2G Communication & GNSS Positioning
Based on SIM7600G-H, Global Band

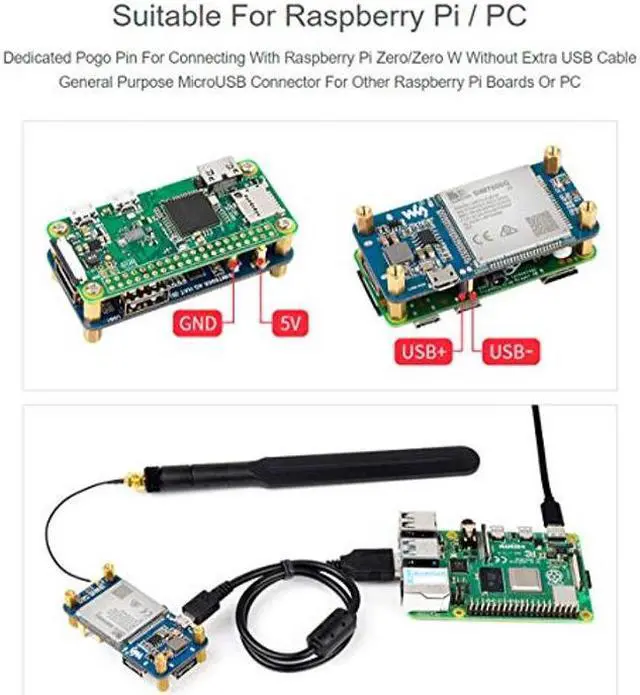

2. Suitable For Raspberry Pi / PC
Dedicated Pogo Pin For Connecting With Raspberry Pi Zero/Zero W Without Extra USB Cable
General Purpose MicroUSB Connector For Other Raspberry Pi Boards Or PC
3. Global Band 4G / 3G / 2G Support
Up To 50Mbps Uplink And 150Mbps Downlink For 4G Network *
4. USB HUB Feature
Onboard USB HUB Chip With USB 2.0 / 1.1 Compliant,
Providing 2x USB-A Connector And 1x USB Solder Pad
5. GNSS Positioning
Supports GPS, BeiDou, Glonass, LBS Base Station Positioning6. Telephoto Call & SMS Support
Making Telephoto Call Or Sending SMS By AT Commands, With Onboard Audio Jack

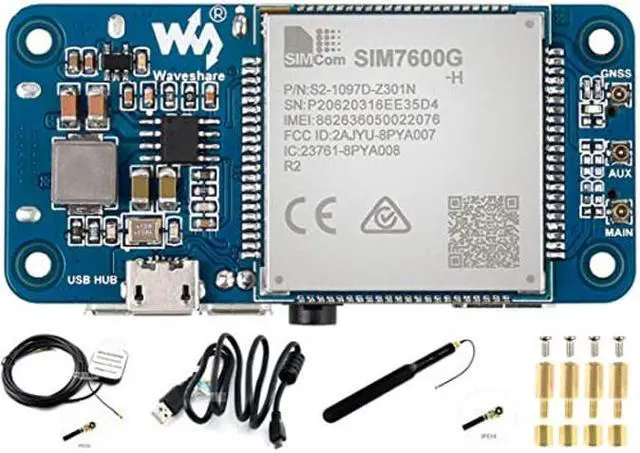

Package Content
SIM7600G-H 4G HAT (B) x1
LTE Antenna x1
GPS Antenna x1
USB-A to micro-B cable x1
Screws pack x1
Note
Raspberry Pi Pico and expansion modules are NOT included.
Development Resources are provided, please contact us to get
1.4G HAT FOR RASPBERRY PI
Enabling LTE Cat-4 4G / 3G / 2G Communication & GNSS Positioning
Based on SIM7600G-H, Global Band
2. Suitable For Raspberry Pi / PC
Dedicated Pogo Pin For Connecting With Raspberry Pi Zero/Zero W Without Extra USB Cable
General Purpose MicroUSB Connector For Other Raspberry Pi Boards Or PC
3. Global Band 4G / 3G / 2G Support
Up To 50Mbps Uplink And 150Mbps Downlink For 4G Network *
4. USB HUB Feature
Onboard USB HUB Chip With USB 2.0 / 1.1 Compliant,
Providing 2x USB-A Connector And 1x USB Solder Pad
5. GNSS Positioning
Supports GPS, BeiDou, Glonass, LBS Base Station Positioning6. Telephoto Call & SMS Support
Making Telephoto Call Or Sending SMS By AT Commands, With Onboard Audio Jack
Package Content
SIM7600G-H 4G HAT (B) x1
LTE Antenna x1
GPS Antenna x1
USB-A to micro-B cable x1
Screws pack x1
Note
Raspberry Pi Pico and expansion modules are NOT included.
Development Resources are provided, please contact us to get
