RS485 to WiFi/Ethernet Module, Rail-Mount Serial Server, Modbus MQTT Gateway, Support 802.11b/g/n Wireless Standards, Support RS485 to WiFi, RS485 to Ethernet, Ethernet to WiFi, etc.

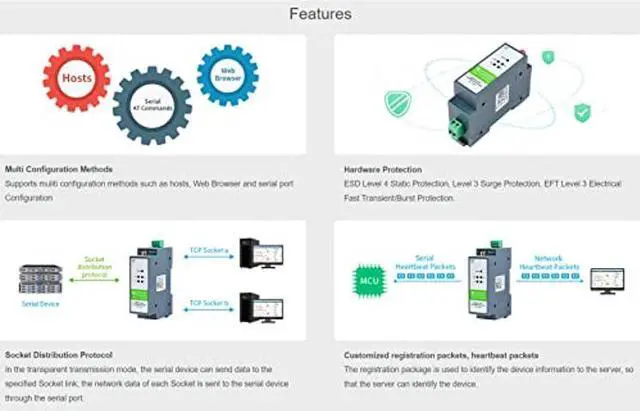

- Support 802.11b/g/n wireless standards. Support WAVESHARE-link. Support route and bridge modes Rich indicator LED: Power, link, RXD, TXD. Wide voltage DC 5~36V, support terminal power. Support custom heartbeat packet, distributing socket protocol, MODBUS polling function. Support timeout reset function, timing reset function. Support remote upgrade. Add hardware watch dog, makes more stable. Supports free framing and automatic framing on the serial port, for higher forwarding efficiency.
- Support websocket and realize the timing communication for serial port and web page. Support web page, serial/network AT command to conFigure parameters. Support one key (press the reload button for more than 5 seconds) to restore factory settings. Long distance communication: two serial server can transport for 150m (Test conditions: open line of sight, two WIFI serial servers self-networking, 57600 baud rate, no packet loss during transmission)
- Rail-mount Serial Server: Industrial Rai
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview

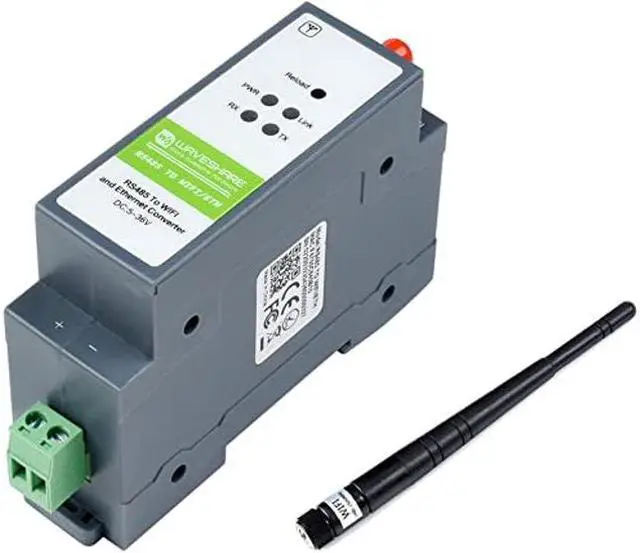

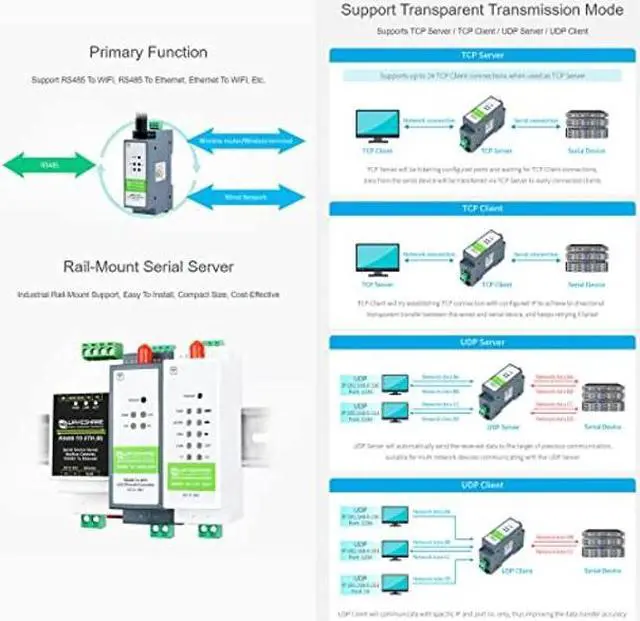

This is a RS485 device data acquisitor / IoT gateway designed for industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to HTTPD Client, etc. With RS485, WIFI and Ethernet ports, the module can realize functions such as serial to WIFI, serial to Ethernet, Ethernet to WIFI and so on.
1) Outline
Communication interface: RS485, screw terminal
Power supply: 5 ~ 36V DC, screw terminal
Case: PC + ABS, V0 flame retardant grade
Dimensions: L x W x
H: 109.66 x 28 x 64.71 mm
2) Communication
Ethernet: 10 / 100M auto-negotiation RJ45 connector
WIFI: 802.11 b/g/n compliant
Serial port: RS485 interface (Anti-surge, Over-current protection)
3) Wireless
Frequency Band: 2.412 ~ 2.484 GHz
Wireless network: Station / AP / AP+Station Mode
Security mechanism: WPA-PSK / WPA2-PSK
Encryption type: TKIP / AES
Transmitting power: 802.11
b: +19dBm (Max. @11Mbps). 802.11 g: +18dBm (Max. @54Mbps). 802.11 n: +17dBm (Max. @HT20, MCS7); +17dBm (Max. @HT40, MCS7).
Receiving sensitivity: 802.11
b: -89dBm
(@11Mbps). 802.11 g: -81dBm
(@54Mbps). 802.11 n: -73dBm (@HT20, MCS7); -71dBm (@HT40, MCS7).
4) Serial
Baudrate: 300 ~ 460800 bps
Parity bit: none, odd, even, mark, space
Data bit: 5 ~ 9 bits
5) Software
Protocol: TCP / UDP / ARP / ICMP / DHCP / DNS / HTTP / MQTT
Configuration: host, web browser, serial AT command
Communication method: TCP/IP direct communication, VCOM

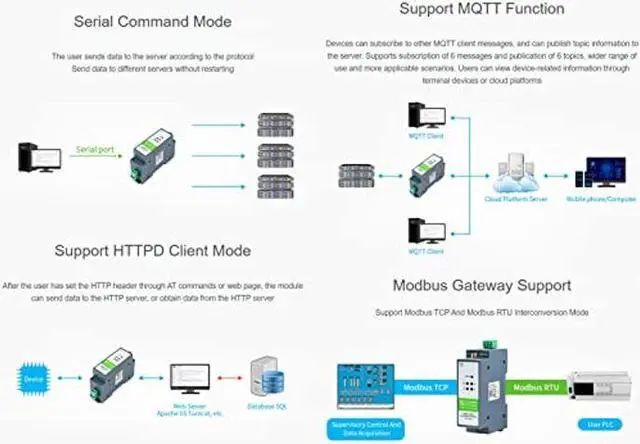

Operating mode: Transparent transmission, serial command, HTTPD Client, Modbus TCP to Modbus RTU
User Manual: n9. cl/waveshare
Package Content
RS485 TO WIFI/ETH x1
Antenna x1
This is a RS485 device data acquisitor / IoT gateway designed for industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to HTTPD Client, etc. With RS485, WIFI and Ethernet ports, the module can realize functions such as serial to WIFI, serial to Ethernet, Ethernet to WIFI and so on.

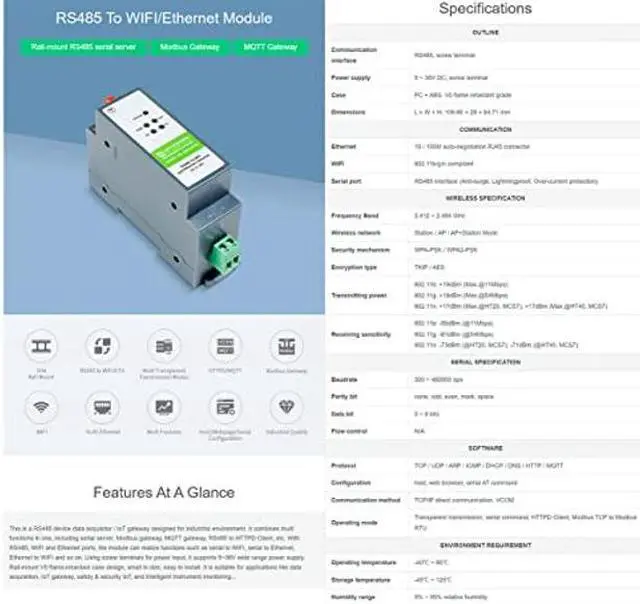

Specifications
1) Outline
Communication interface: RS485, screw terminal
Power supply: 5 ~ 36V DC, screw terminal
Case: PC + ABS, V0 flame retardant grade
Dimensions: L x W x
H: 109.66 x 28 x 64.71 mm
2) Communication
Ethernet: 10 / 100M auto-negotiation RJ45 connector
WIFI: 802.11 b/g/n compliant
Serial port: RS485 interface (Anti-surge, Over-current protection)
3) Wireless
Frequency Band: 2.412 ~ 2.484 GHz
Wireless network: Station / AP / AP+Station Mode
Security mechanism: WPA-PSK / WPA2-PSK
Encryption type: TKIP / AES
Transmitting power: 802.11
b: +19dBm (Max. @11Mbps). 802.11 g: +18dBm (Max. @54Mbps). 802.11 n: +17dBm (Max. @HT20, MCS7); +17dBm (Max. @HT40, MCS7).
Receiving sensitivity: 802.11
b: -89dBm
(@11Mbps). 802.11 g: -81dBm
(@54Mbps). 802.11 n: -73dBm (@HT20, MCS7); -71dBm (@HT40, MCS7).
4) Serial
Baudrate: 300 ~ 460800 bps
Parity bit: none, odd, even, mark, space
Data bit: 5 ~ 9 bits
5) Software
Protocol: TCP / UDP / ARP / ICMP / DHCP / DNS / HTTP / MQTT
Configuration: host, web browser, serial AT command
Communication method: TCP/IP direct communication, VCOM
Operating mode: Transparent transmission, serial command, HTTPD Client, Modbus TCP to Modbus RTU
User Manual: n9. cl/waveshare
Package Content
RS485 TO WIFI/ETH x1
Antenna x1
