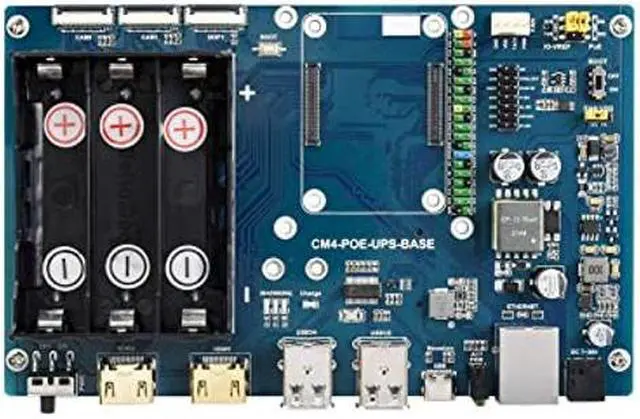

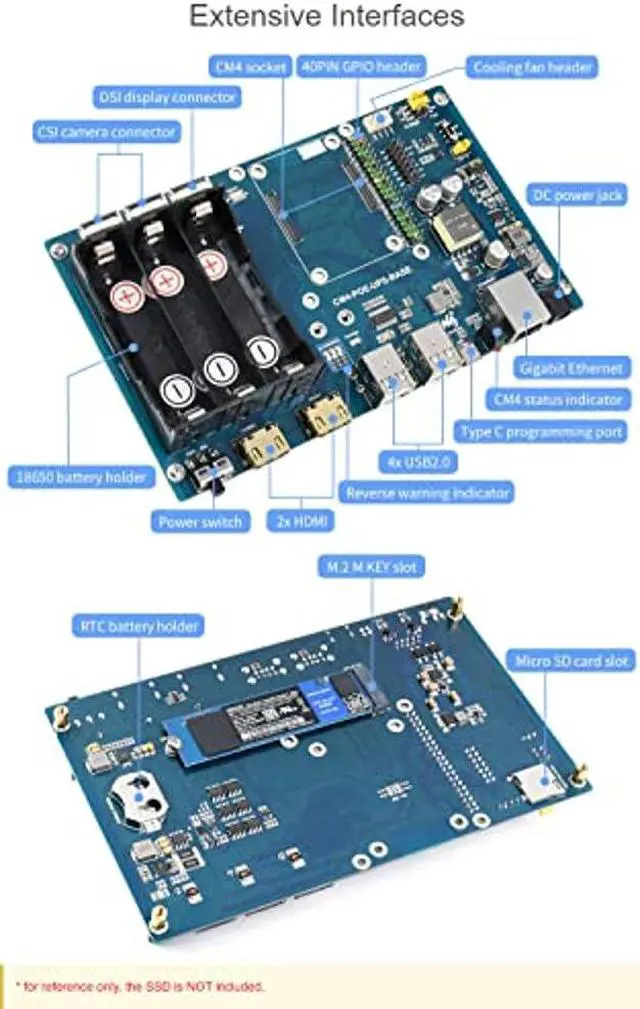

Waveshare PoE UPS Uninterruptible Power Supply Base Board for Raspberry Pi Compute Module 4 with Gigabit Ethernet/Dual HDMI/Quad USB2.0 etc.Interfaces

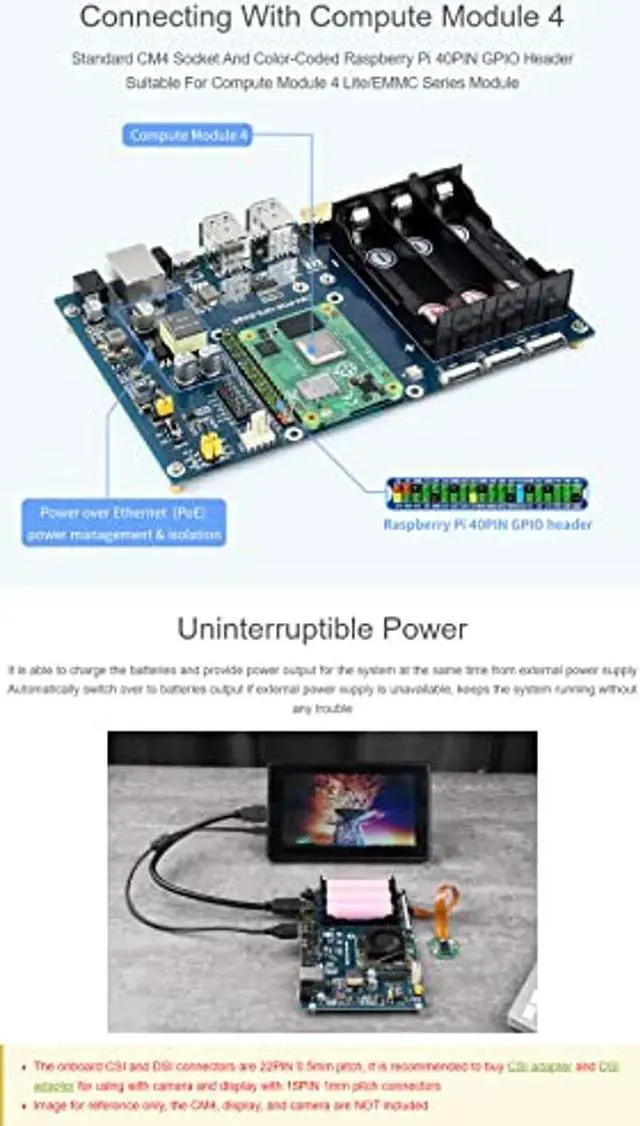

- Standard CM4 Socket And Color-Coded Raspberry Pi 40PIN GPIO Header, Suitable For Compute Module 4 Lite/EMMC Series Module (Batteries and RPi CM4 are not included))

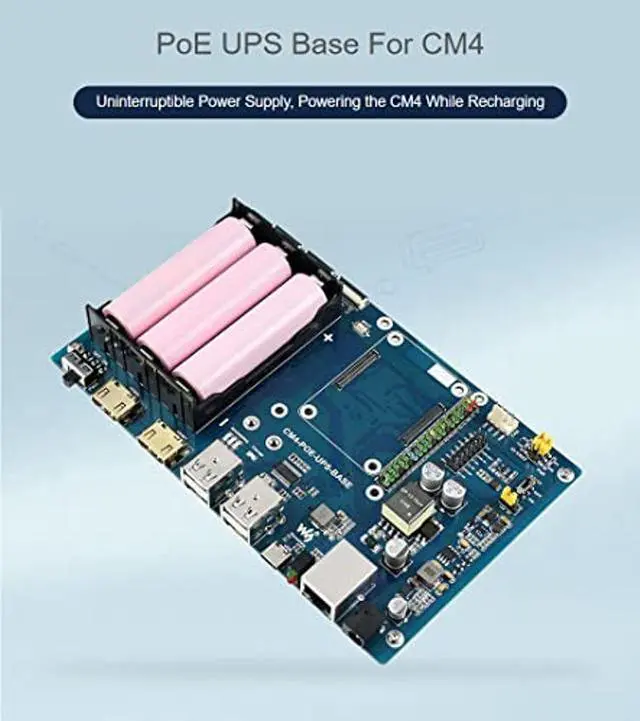

- Able to charge the batteries and provide power output for the system at the same time from external power supply; Automatically switch over to batteries output if external power supply is unavailable, keeps the system running without trouble
- Multi Power Supply Options, Dynamic Path Management, More Stable Power Supply
- Protection Circuits For Over Charge/Discharge, Over Current, Short Circuit, And Reverse-Proof; Along With The Standalone Resettable Fuse For Each Battery, More Safe And Stable
- Monitoring The Batteries Voltage, Current, Power, And Remaining Capacity Via I2C; When the voltage dips too low, it is possible to save files properly and then shutdown the system by software, to avoid any data loss
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Waveshare PoE UPS Uninterruptible Power Supply Base Board for Raspberry Pi Compute Module 4 with Gigabit Ethernet/Dual HDMI/Quad USB 2.0 etc. Interfaces
