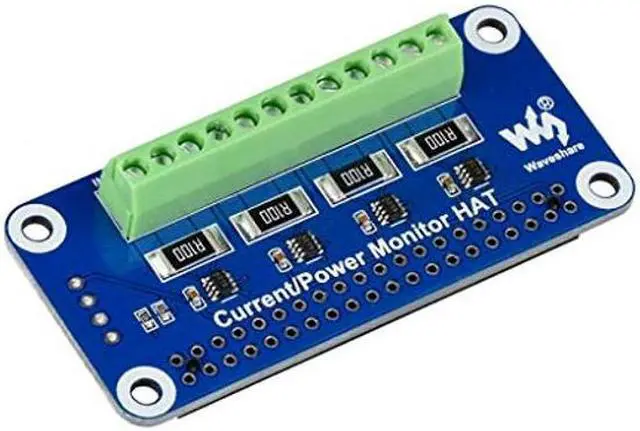

4-ch Current/Voltage/Power Monitor HAT for Raspberry Pi I2C/SMBus Interface Easy to Monitor Each Channel's Current, Voltage, and Power Consumption

Overview

This is a 4-ch current and power monitor HAT designed for Raspberry Pi. Via the I2C or SMBus interface, it is easy to monitor each
channel's current, voltage, and power consumption, as well as the voltage between both sides of the sampling resistor.

Features

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
4-ch monitoring, via I2C/SMBus interface

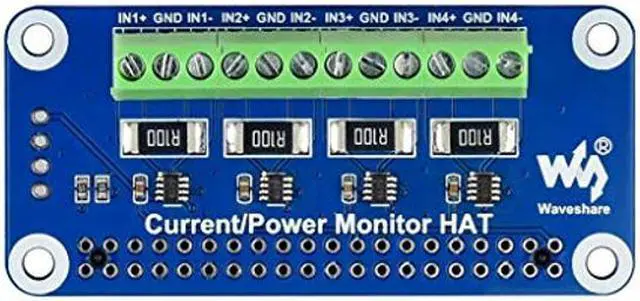

Onboard 0.1O 1% sampling resistor, allows measuring bi-directional current up to 3.2A
Embedded 12-bit ADC, supports multiple successive converting, 0~26V voltage measuring range
Directly calculate and output measured power value through additional multiply register

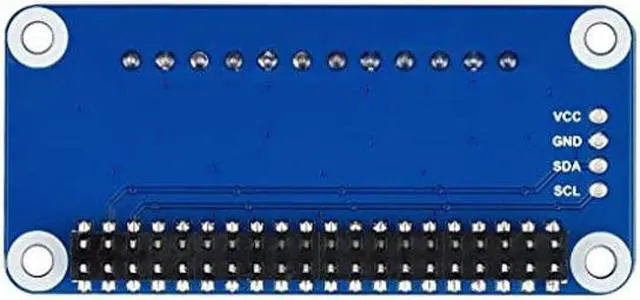

I2C control pins for connecting with other host boards
Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

Specifications

Operating voltage: 3.3V /5V
Control interface: I2C/SMBus
Sampling resistor: 0.1O 1%
Voltage range: 0~26V
Current range: +- 3.2A
Resolution: 0.8 mA (+- 3.2A range) OR 0.1 mA (+-400mA range)
Dimensions: 65mm x 30mm
Mounting hole size: 3.0 mm

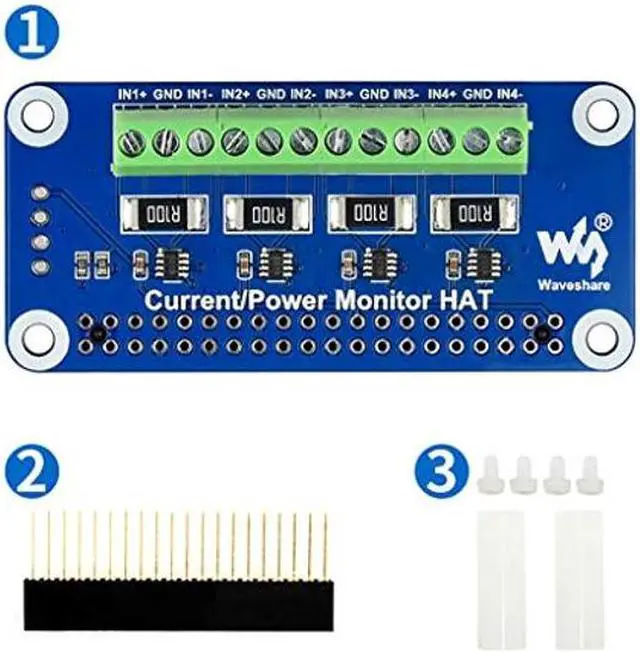

Package include

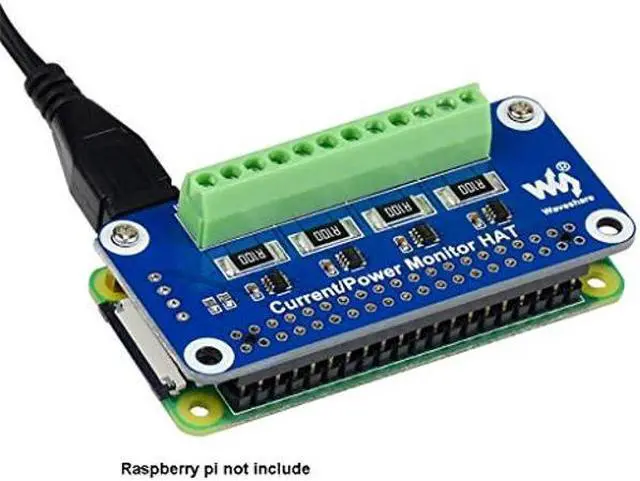

Note: the Raspberry Pi is NOT included.


1. Current/Power Monitor HAT x1
2. 2x20PIN female pinheader x1
3. RPi screws pack (2pcs) x1
