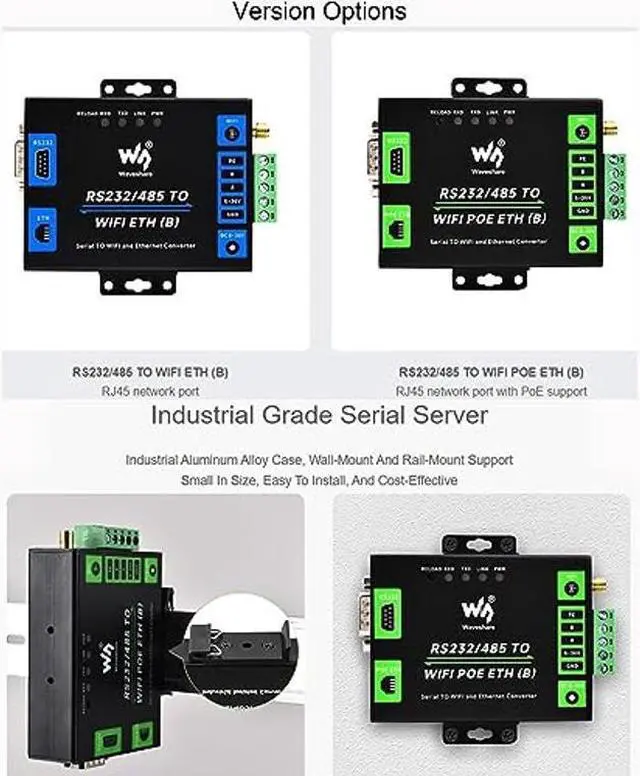

waveshare RS232/485 to WiFi and Ethernet Converter Serial Server, Modbus Gateway, MQTT Gateway,Serial Port to HTTPD Client, Allow Serial Port to WiFi, Serial Port to Ethernet, Ethernet to WiFi

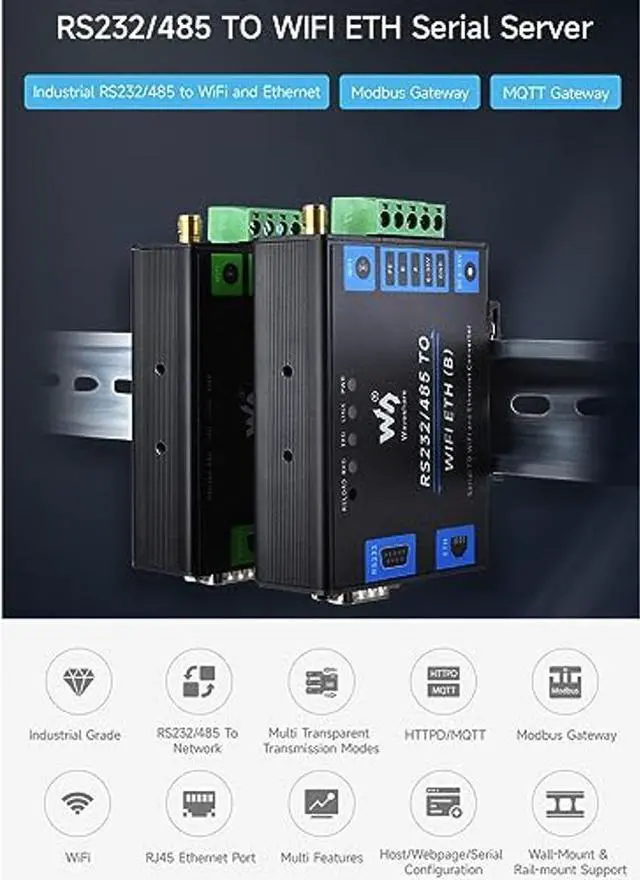

- This is an RS232/485 device data acquisitor / IoT gateway designed for industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, serial port to HTTPD Client, etc
- With RS232, RS485, WIFI and Ethernet interfaces, the module can realize functions such as serial port to WIFI, serial port to Ethernet, Ethernet to WIFI and so on. Support Screw Terminal and DC 5.5 Power Port for Power Supply, DC 6~36V Wide Voltage Range Input
- Support transparent transmission mode: Support TCP Server, TCP Client, UDP Server, UDP Client
- Support multi wireless networking methods: Support AP mode, STA mode, and AP+STA mode. Support multi wired networking methods: Support APLAN, APWAN, Router, and Bridge mode
- Multi Configuration Methods: Supports muliti configuration methods such as hosts, Web Browser and serial port Configuration. AT Command Mode: The user can query the current status of the module or set related parameters by sending
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
RS232/485 to WiFi and Ethernet Converter combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, serial port to HTTPD Client, etc. Supports serial port to WIFI, serial port to Ethernet, Ethernet to WIFI.
1. Outline
Power supply: DC 6~36V

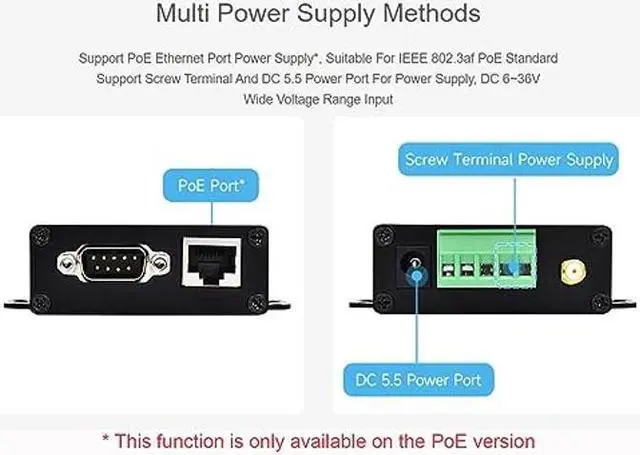

Power supply method: DC 5.5 power port, screw terminal
Dimensions (L x W x H): 84.00 x 64.00 x 24.00 mm
2. Communication
Ethernet: 10 / 100M auto-negotiation RJ45 connector
WIFI: 802.11 b/g/n compliant

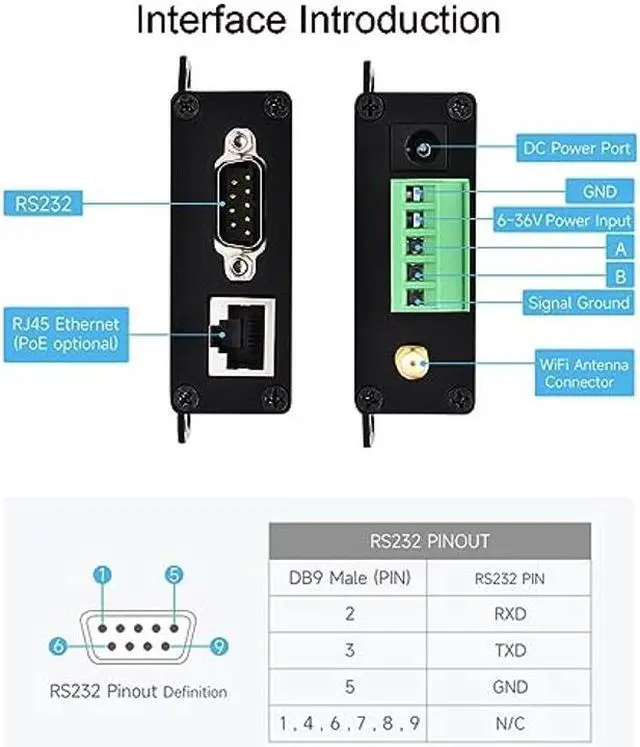

Serial port: RS232 (ESD/EFT)RS485 (ESD/EFT/surge protection)
3. Wireless specification
Frequency Band: 2.412 ~ 2.484 GHz
Wireless network: Station / AP / AP+Station Mode
Security mechanism: WPA-PSK / WPA2-PSK
Encryption type: TKIP / AES
Transmitting power:
802.11 b: +19dBm (Max. @11Mbps)
802.11 g: +18dBm (Max. @54Mbps)
802.11 n: +17dBm (Max. @HT20, MCS7); +17dBm (Max. @HT40, MCS7)
Receiving sensitivity:
802.11 b: -89dBm (@11Mbps)
802.11 g: -81dBm (@54Mbps)
802.11 n: -73dBm (@HT20, MCS7); -71dBm (@HT40, MCS7)
4. Serial specification
Baudrate: 300 ~ 460800 bps
Parity bit: none, odd, even, mark, space
Data bit: 5 ~ 9 bits
5. Software
Protocol: TCP / UDP / ARP / ICMP / DHCP / DNS / HTTP / MQTT
Configuration: host, web browser, serial AT command
Communication method: TCP/IP direct communication, VCOM
Operating mode: Transparent transmission, serial command, HTTPD Client, Modbus TCP to Modbus RTU
6. Environment requirement
Operating temperature: -40 ~ 85
Humidity range: 5% ~ 95% relative humidity
Online Development Resources: //bit. ly/3L6Bk6m

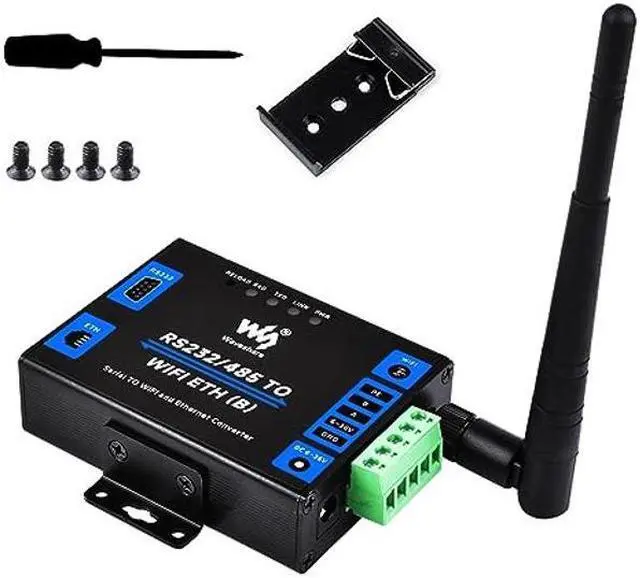

Package Content
RS232/485 TO WIFI ETH (B) x1
2.4G WiFi antenna x1
Rail-mount buckle x1
Screwdriver x1
Screws pack x1
Specifications
1. Outline
Power supply: DC 6~36V
Power supply method: DC 5.5 power port, screw terminal
Dimensions (L x W x H): 84.00 x 64.00 x 24.00 mm
2. Communication
Ethernet: 10 / 100M auto-negotiation RJ45 connector
WIFI: 802.11 b/g/n compliant
Serial port: RS232 (ESD/EFT)RS485 (ESD/EFT/surge protection)
3. Wireless specification
Frequency Band: 2.412 ~ 2.484 GHz
Wireless network: Station / AP / AP+Station Mode
Security mechanism: WPA-PSK / WPA2-PSK
Encryption type: TKIP / AES
Transmitting power:
802.11 b: +19dBm (Max. @11Mbps)
802.11 g: +18dBm (Max. @54Mbps)
802.11 n: +17dBm (Max. @HT20, MCS7); +17dBm (Max. @HT40, MCS7)
Receiving sensitivity:
802.11 b: -89dBm (@11Mbps)
802.11 g: -81dBm (@54Mbps)
802.11 n: -73dBm (@HT20, MCS7); -71dBm (@HT40, MCS7)
4. Serial specification
Baudrate: 300 ~ 460800 bps
Parity bit: none, odd, even, mark, space
Data bit: 5 ~ 9 bits
5. Software
Protocol: TCP / UDP / ARP / ICMP / DHCP / DNS / HTTP / MQTT
Configuration: host, web browser, serial AT command
Communication method: TCP/IP direct communication, VCOM
Operating mode: Transparent transmission, serial command, HTTPD Client, Modbus TCP to Modbus RTU
6. Environment requirement
Operating temperature: -40 ~ 85
Humidity range: 5% ~ 95% relative humidity
Online Development Resources: //bit. ly/3L6Bk6m
Package Content
RS232/485 TO WIFI ETH (B) x1
2.4G WiFi antenna x1
Rail-mount buckle x1
Screwdriver x1
Screws pack x1
