$42.34
Ships from China.
Meet Your Seller
Raspberry Pi Zero 2W to Pi 3B/3B+ Adapter,Connect Raspberry Pi Zero 2W with Zero-to-Pi3-Adapter to Replace Raspberry Pi 3 Model B/3B+, Alternative for RPi 3B/3B+ Compatible with Pi 3B/ 3B+ Hats
- Raspberry Pi Zero 2W To Pi 3B/3B+ Adapter, Alternative Solution for Raspberry Pi 3 Model B/B+. Onboard 4-ch USB interface, Fast Ethernet port and HDMI port, Raspberry Pi Zero 2W To Pi 3B/3B+ Adapter is an alternative for Raspberry Pi 3 Model B/B+, supporting Raspberry Pi Zero 2W, but not supporting Raspberry Pi Zero.

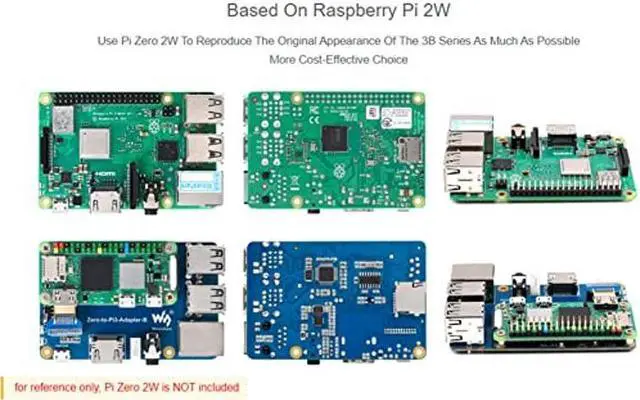

- Based on Raspberry Pi Zero 2W, Use Pi Zero 2W to reproduce the original appearance of the 3B series as much as possible,More Cost-effective Choice. (Note: Raspberry Pi Zero 2 W is NOT included).

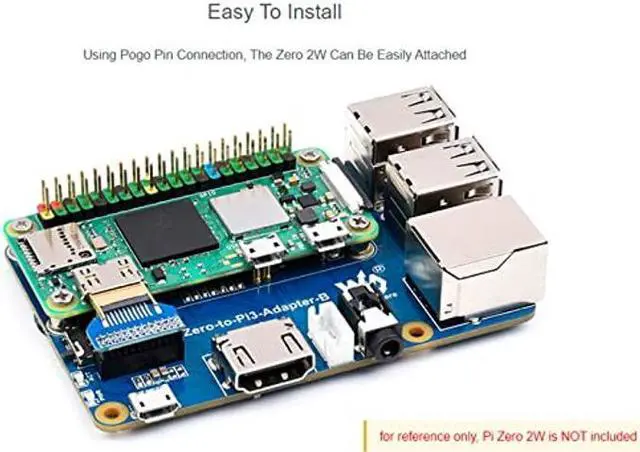

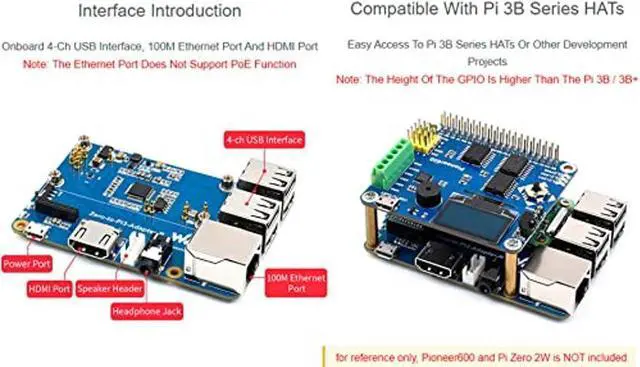

- Easy to Install: Using pogo pin connection, the Zero 2W can be easily attached. Onboard 4-ch USB Interface, 100M Ethernet Port and HDMI Port. Note: The Ethernet port does not support PoE function.
- Compatible with Pi 3B Series HATs: Easy access to Pi 3B series HATs or other development projects. Note: the height of the GPIO is higher than the Pi 3B / 3B+
- Onboard Audio Interface: Support 3.5mm headphone jack and 4PIN speaker header. When headphone is plugged in,
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

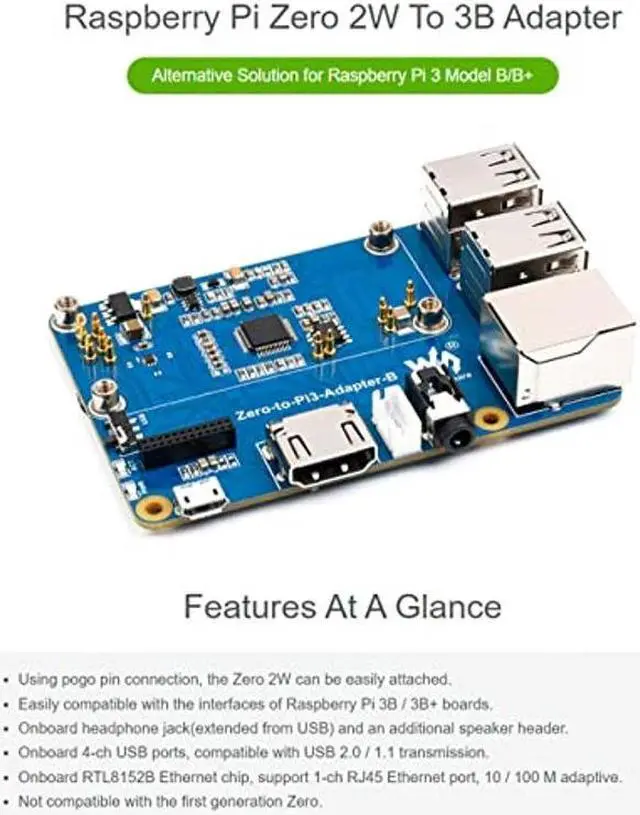

Raspberry Pi Zero 2W To 3B Adapter, Alternative Solution for Raspberry Pi 3 Model B/B+
Features
Raspberry Pi Zero 2 w:
Broadcom BCM2710A1, Quad Core 64-bit SoC (Arm Cortex-A53 @ 1GHz).
512MB LPDDR2 SDRAM.
2.4GH z IEEE 802.11 b/g/n Wireless LAN, Bluetooth 4.2, BLE.
Onboard 1 Mirco USB 2.0 port with OTG.
Onboard Raspberry Pi 40 Pin GPIO interface pad, suitable for Raspberry Pi series expansion boards.
MicroSD card slot.
Mini HDMI output interface.
Composite video interface pads, and reset interface pads.
CSI-2 Camera Interface.
H. 264, MPEG-4 encoding (1080p30); H. 264 decoding (1080p30).
Support OpenGL ES 1.1, 2.0 graphics.
Raspberry Pi Zero 2W To 3B Adapter Features:
Adopt the pogo pin into the Zero board, which can be inserted directly and conveniently.
Its interfaces are easily compatible with the Raspberry Pi 3B series (3B / 3B+) board.
The module has an onboard USB audio headphone port and an additional speaker port.
Onboard 4-way USB expansion port, compatible with USB 2.0 / 1.1 transmission.
Onboard RTL8152B Ethernet chip, support 1 RJ45 network port, 10/100M self-adaptive.
Only supports Raspberry Pi Zero 2 w, not compatible with Raspberry Pi Zero generation.
Note: Raspberry Pi Zero 2W is NOT included.
Online Tutorial/How-to-use guide: n9. cl/wcqal
Package Content

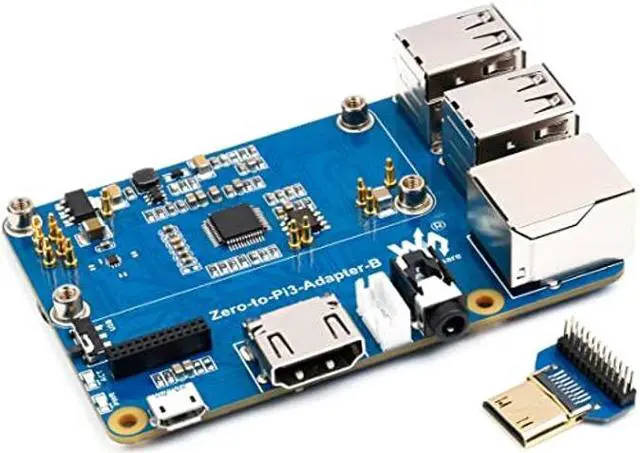

Zero-to-Pi3-Adapter (B) x1
HDMI Adapter x1
Features
Raspberry Pi Zero 2 w:
Broadcom BCM2710A1, Quad Core 64-bit SoC (Arm Cortex-A53 @ 1GHz).
512MB LPDDR2 SDRAM.
2.4GH z IEEE 802.11 b/g/n Wireless LAN, Bluetooth 4.2, BLE.
Onboard 1 Mirco USB 2.0 port with OTG.
Onboard Raspberry Pi 40 Pin GPIO interface pad, suitable for Raspberry Pi series expansion boards.
MicroSD card slot.
Mini HDMI output interface.
Composite video interface pads, and reset interface pads.
CSI-2 Camera Interface.
H. 264, MPEG-4 encoding (1080p30); H. 264 decoding (1080p30).
Support OpenGL ES 1.1, 2.0 graphics.
Raspberry Pi Zero 2W To 3B Adapter Features:
Adopt the pogo pin into the Zero board, which can be inserted directly and conveniently.
Its interfaces are easily compatible with the Raspberry Pi 3B series (3B / 3B+) board.
The module has an onboard USB audio headphone port and an additional speaker port.
Onboard 4-way USB expansion port, compatible with USB 2.0 / 1.1 transmission.
Onboard RTL8152B Ethernet chip, support 1 RJ45 network port, 10/100M self-adaptive.
Only supports Raspberry Pi Zero 2 w, not compatible with Raspberry Pi Zero generation.
Note: Raspberry Pi Zero 2W is NOT included.
Online Tutorial/How-to-use guide: n9. cl/wcqal
Package Content
Zero-to-Pi3-Adapter (B) x1
HDMI Adapter x1
