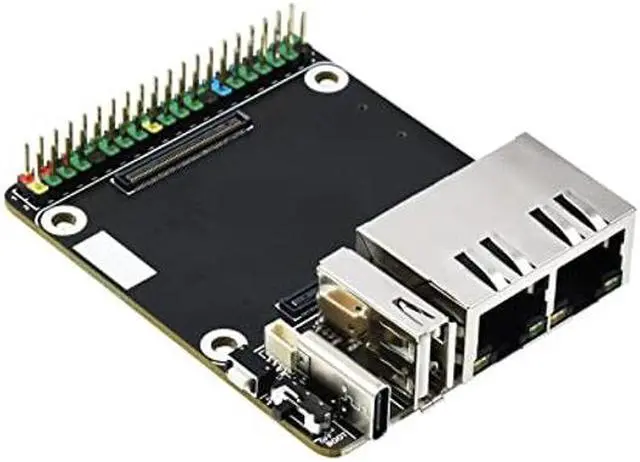

Mini Dual Gigabit Ethernet Base Board Compatible with Raspberry Pi Compute Module 4 CM4/4 Lite, Dual Gigabit Ethernet Ports,1xUSB 2.0 Port,1x40PIN GPIO Header,5V, Type-C Interface

Overview

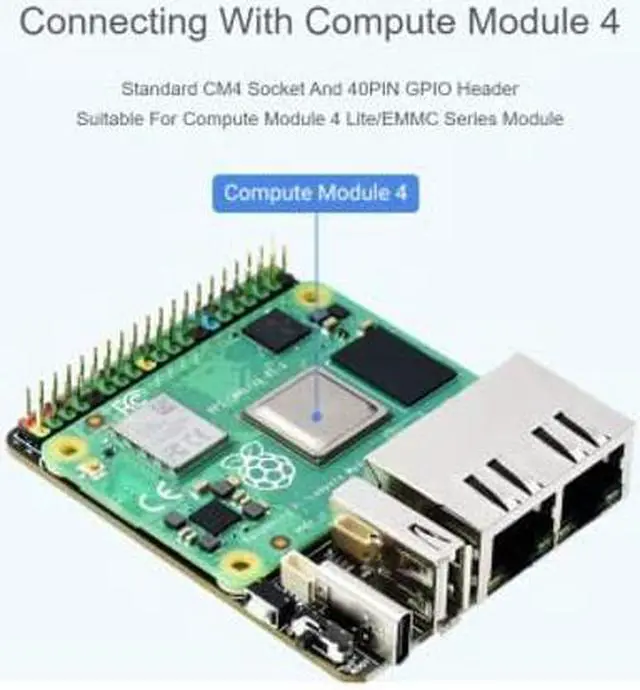

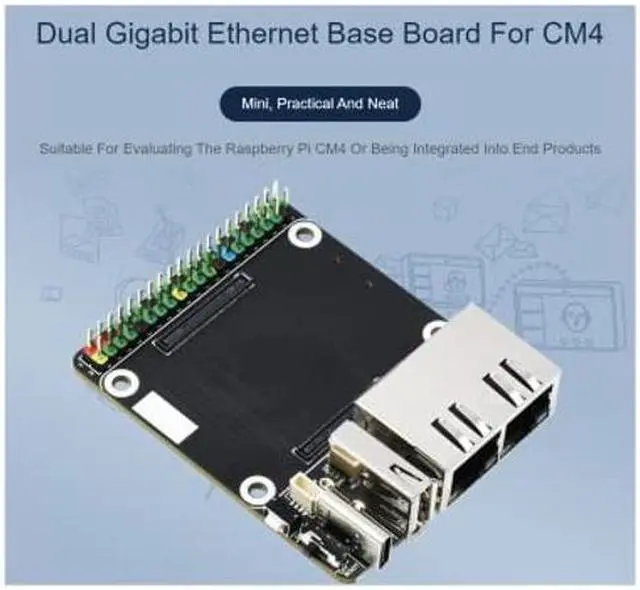

CM4-DUAL-ETH-MINI, a baseboard that can be used with Raspberry Pi Compute Module 4, supports 5V DC Type-C interface power supply, and features
dual Gigabit Ethernet ports, single-channel USB 2.0 with a fan interface and standard Raspberry Pi 40Pin interface, which is suitable for
scenarios requiring multiple network ports such as soft routing.

Specifications

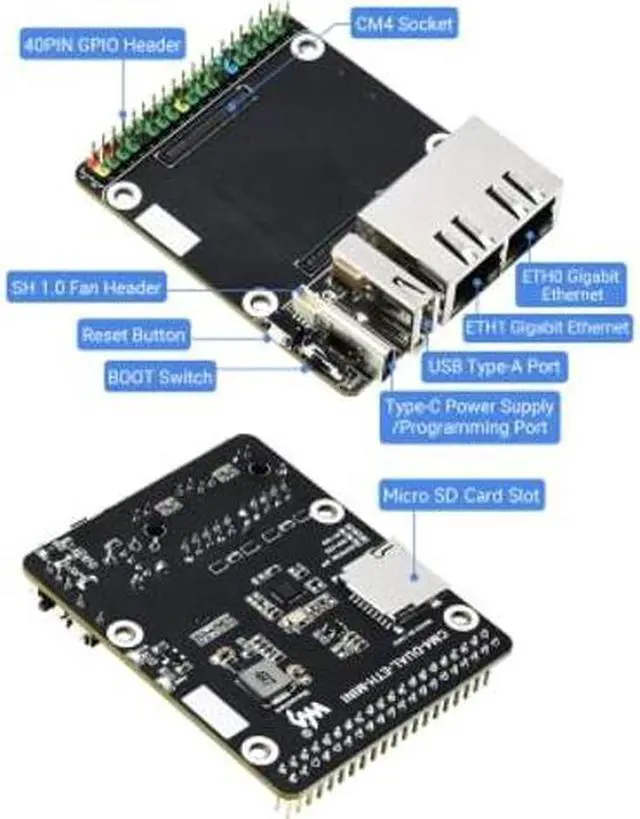

CM4 SOCKET-----suitable for all variants of Compute Module 4
NETWORKING-----Dual Gigabit Ethernet RJ45 connector
USB-----USB 2.0 Port
PIN HEADER------Raspberry Pi 40PIN GPIO header

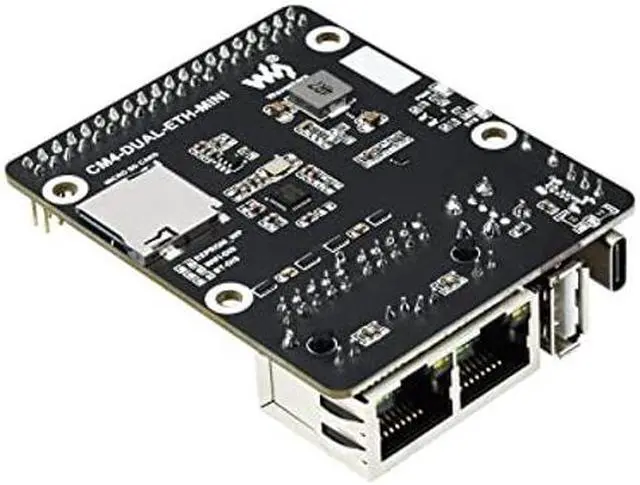

STORAGE-----Micro SD card socket for Compute Module 4 Lite (without eMMC) variants
FAN HEADER-----4-wire SH 1.0 port, allows speed adjustment and measurement, 5V
POWER INPUT-----5V, Type-C interface
DIMENSIONS----- 55.0 x 68.0 mm

Caution
1. Do not plug or unplug any device other than a USB while it is powered on.
2. Confirm the fan voltage before connecting, only 5V fans are supported.
3. The Type C interface can be used as a power supply or as a USB interface to program the image (need to use the DIP switch to switch).
4. In order to ensure the normal power supply for CM4, please do not connect other devices when using the Type C interface to program the image.
5. When CM4 is in normal use, it needs to provide 5V/2A power supply for CM4. Otherwise, there may be problems such as automatic shutdown, frequency
reduction and so on.
6. USB 2.0 is closed by default, if you want to open it, you need to add "dtoverlay=dwc2, dr_mode=host in config. txt".
7. For Opwenwrt, see the instructions for use.
8. This expansion board does not support the POE function.

Package Content
CM4-DUAL-ETH-MINI x1

Note
1. Online development resources are provided, please contact with if you you need.
2. Compute Module 4 in the photos is not included in the product pakcage.
