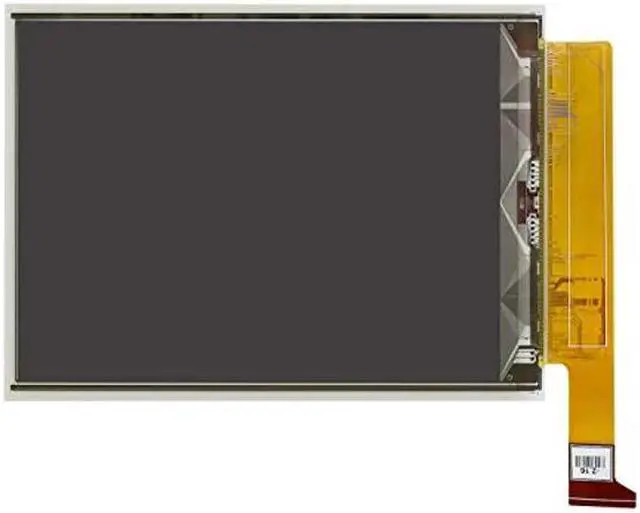

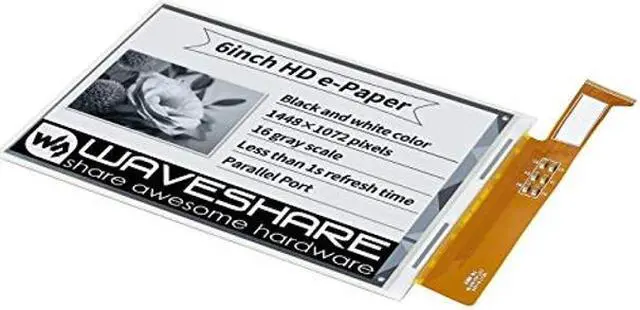

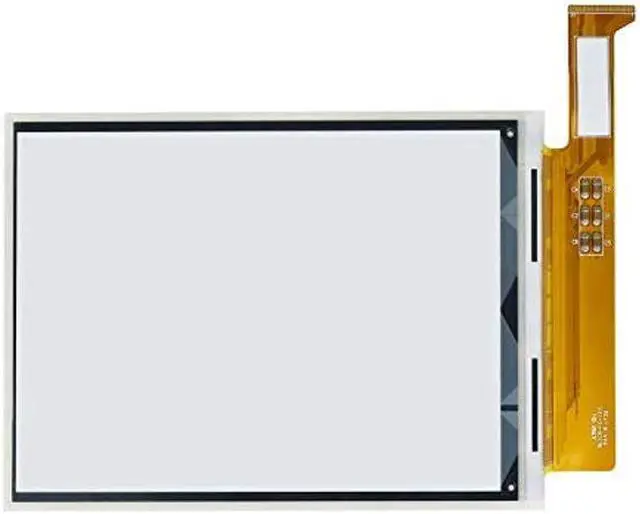

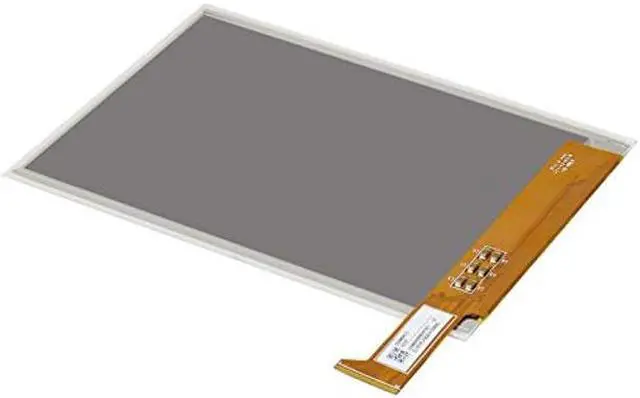

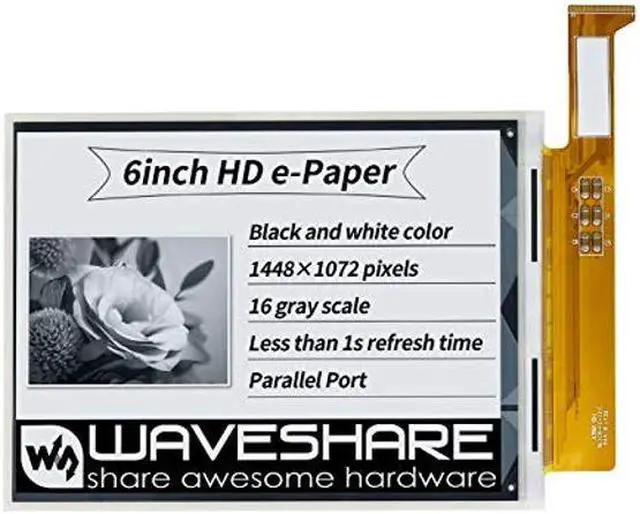

waveshare 6inch E-Ink Raw Display Compatible with Raspberry Pi 4B/3B+/3B/2B/B+/A+/Zero/Zero W/WH/Zero 2W Series Boards 1448x1072 High Definition 16 Gray Scale Without PCB Supports Partial Refresh
Limited time offer, ends 12/10 By Torpedo Nova
- Provide online user manual (examples for Raspberry Pi/STM32), please check the manual carefully before using!
- This is an E-Ink raw display, 6inch, 1448x1072 high definition, communicating via parallel port, supports partial refresh.
- Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
- No backlight, keeps displaying last content for a long time even when power down
- Low power consumption, basically power is only required for refreshing
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview
This is an E-Ink display HAT for Raspberry Pi, 6inch, 1448x1072 high definition, with embedded controller IT8951, communicating via USB/SPI/I80 interface, supports partial refresh.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
Features
No backlight, keeps displaying last content for a long time even when power down
Low power consumption, basically power is only required for refreshing
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
USB/SPI/I80 interface, for connecting with host boards like Raspberry Pi/Nucleo, etc.
Comes with development resources and manual (examples for Raspberry Pi/STM32)
Operating voltage: 5V
Interface: USB/SPI/I80
Outline dimension: 138.4 mm x 101.8 mm x 1.01 mm
Display size: 122.4 mm x 90.6 mm
Dot pitch: 0.0845 mm x 0.0845 mm
Resolution: 1448 x 1072
Display color: black, white
Gray scale: 2-16 (1-4 bit)
Full refresh time: <1s
Total refresh power: 0.88W (typ. )
Total standby power: 0.3W (typ. )
Viewing angle: >170deg
This is an E-Ink display HAT for Raspberry Pi, 6inch, 1448x1072 high definition, with embedded controller IT8951, communicating via USB/SPI/I80 interface, supports partial refresh.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
Features
No backlight, keeps displaying last content for a long time even when power down
Low power consumption, basically power is only required for refreshing
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
USB/SPI/I80 interface, for connecting with host boards like Raspberry Pi/Nucleo, etc.
Comes with development resources and manual (examples for Raspberry Pi/STM32)
Specifications
Operating voltage: 5V
Interface: USB/SPI/I80
Outline dimension: 138.4 mm x 101.8 mm x 1.01 mm
Display size: 122.4 mm x 90.6 mm
Dot pitch: 0.0845 mm x 0.0845 mm
Resolution: 1448 x 1072
Display color: black, white
Gray scale: 2-16 (1-4 bit)
Full refresh time: <1s
Total refresh power: 0.88W (typ. )
Total standby power: 0.3W (typ. )
Viewing angle: >170deg
