$68.99
Ships from China.
Meet Your Seller
4.2inch E-Ink Display Module Resolution 296x128 3.3v E-Paper Electronic Screen Panel SPI Interface for Raspberry Pi/STM32/Arduino/Nucleo/Jetson Nano
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing
- SPI interface, for connecting with controller boards like for Raspberry Pi/Arduino/Nucleo, etc.
- Onboard voltage translator, compatible with 3.3V/5V MCUs
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description

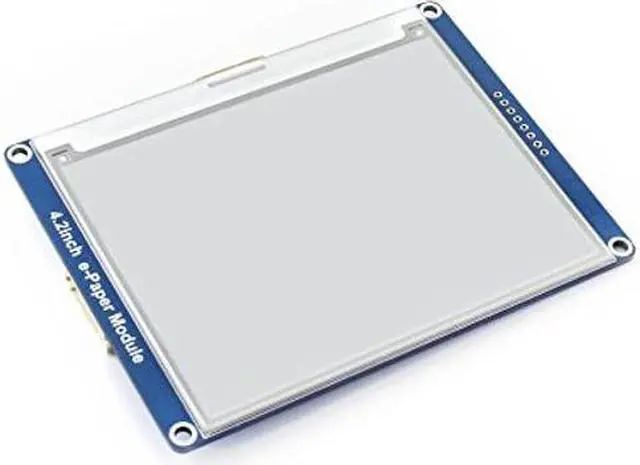

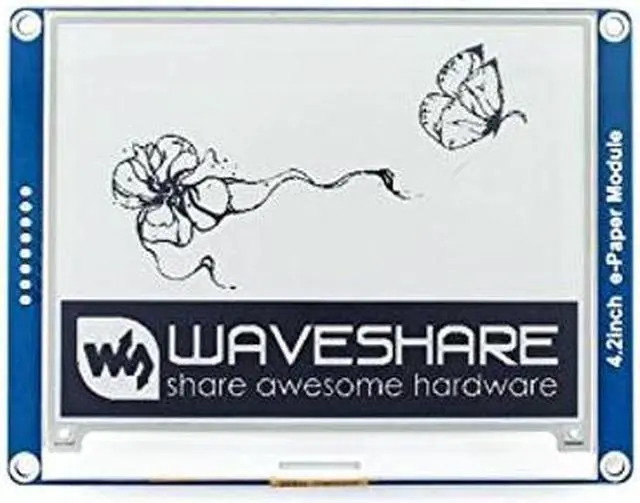

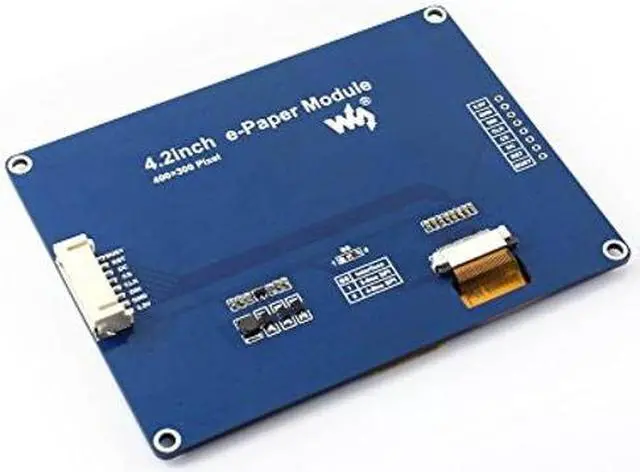

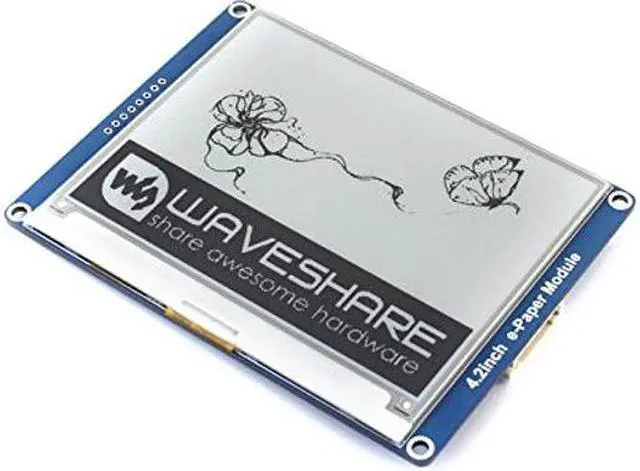

This is an E-Ink display module, 4.2 inch, 400x300 resolution, with embedded controller, communicating via SPI interface.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice
for applications such as shelf label, industrial instrument, and so on.
Operating voltage: 3.3V ~5V
Interface: 3-wire SPI, 4-wire SPI
Outline dimension: 103.0 mm x 78.5 mm
Display size: 84.8 mm x 63.6 mm
Dot pitch: 0.212 x 0.212
Resolution: 400 x 300
Display color: black, white
Grey level: 2
Full refresh time: 4s
Refresh power: 26.4 mW(typ. )
Standby power: <0.017mW
Viewing angle: >170deg

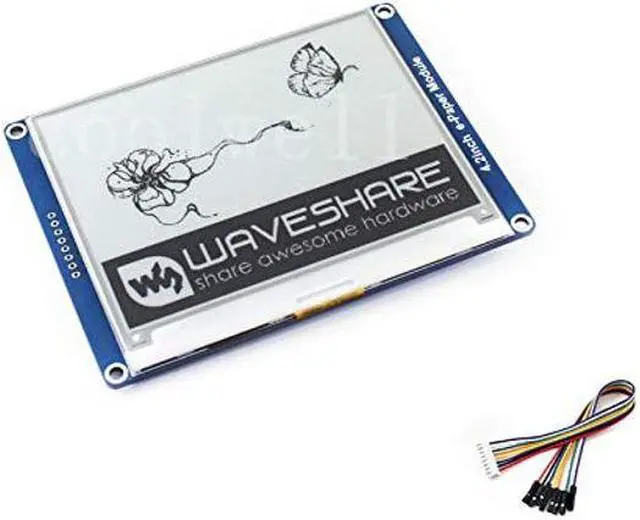

Package Contains
1. 4.2 inch e-Paper Module x1
2. PH 2.0 20cm 8Pin x1
Development Resources
Resources available: www. waveshare. com/wiki/ 4.2 inch_e-Paper_Module
This is an E-Ink display module, 4.2 inch, 400x300 resolution, with embedded controller, communicating via SPI interface.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice
for applications such as shelf label, industrial instrument, and so on.
Specifications
Operating voltage: 3.3V ~5V
Interface: 3-wire SPI, 4-wire SPI
Outline dimension: 103.0 mm x 78.5 mm
Display size: 84.8 mm x 63.6 mm
Dot pitch: 0.212 x 0.212
Resolution: 400 x 300
Display color: black, white
Grey level: 2
Full refresh time: 4s
Refresh power: 26.4 mW(typ. )
Standby power: <0.017mW
Viewing angle: >170deg
Package Contains
1. 4.2 inch e-Paper Module x1
2. PH 2.0 20cm 8Pin x1
Development Resources
Resources available: www. waveshare. com/wiki/ 4.2 inch_e-Paper_Module
