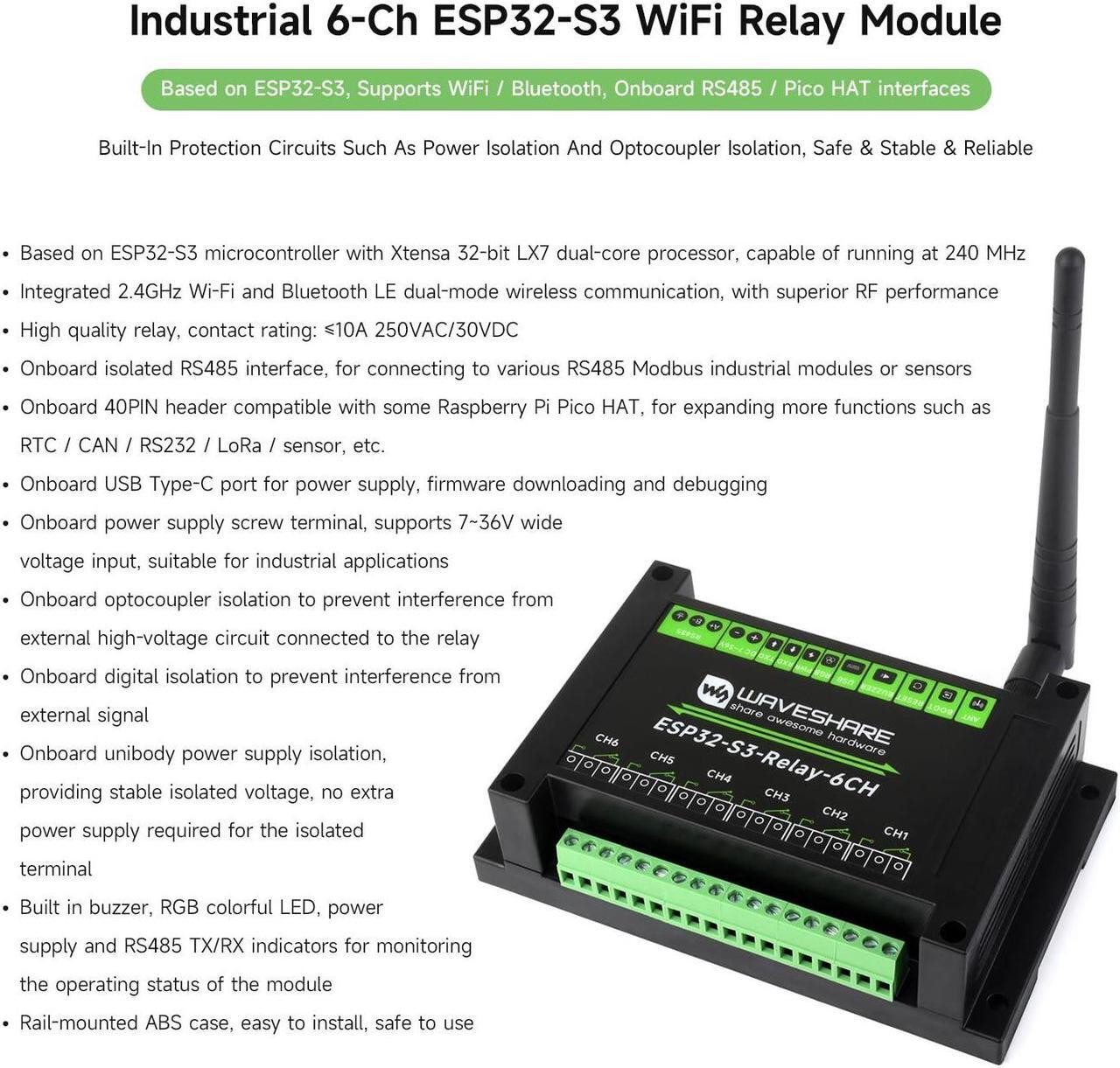

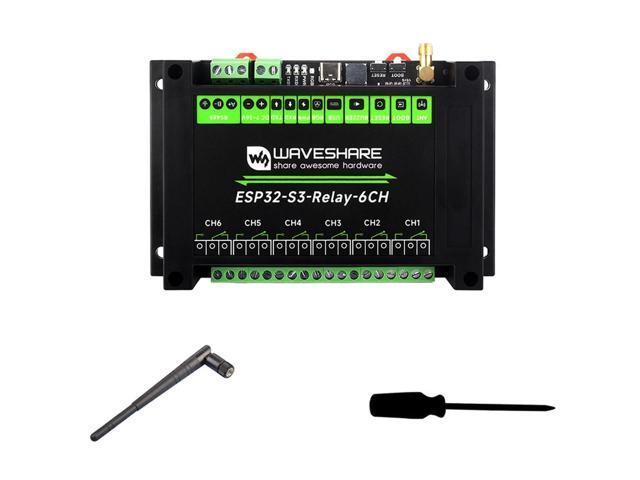

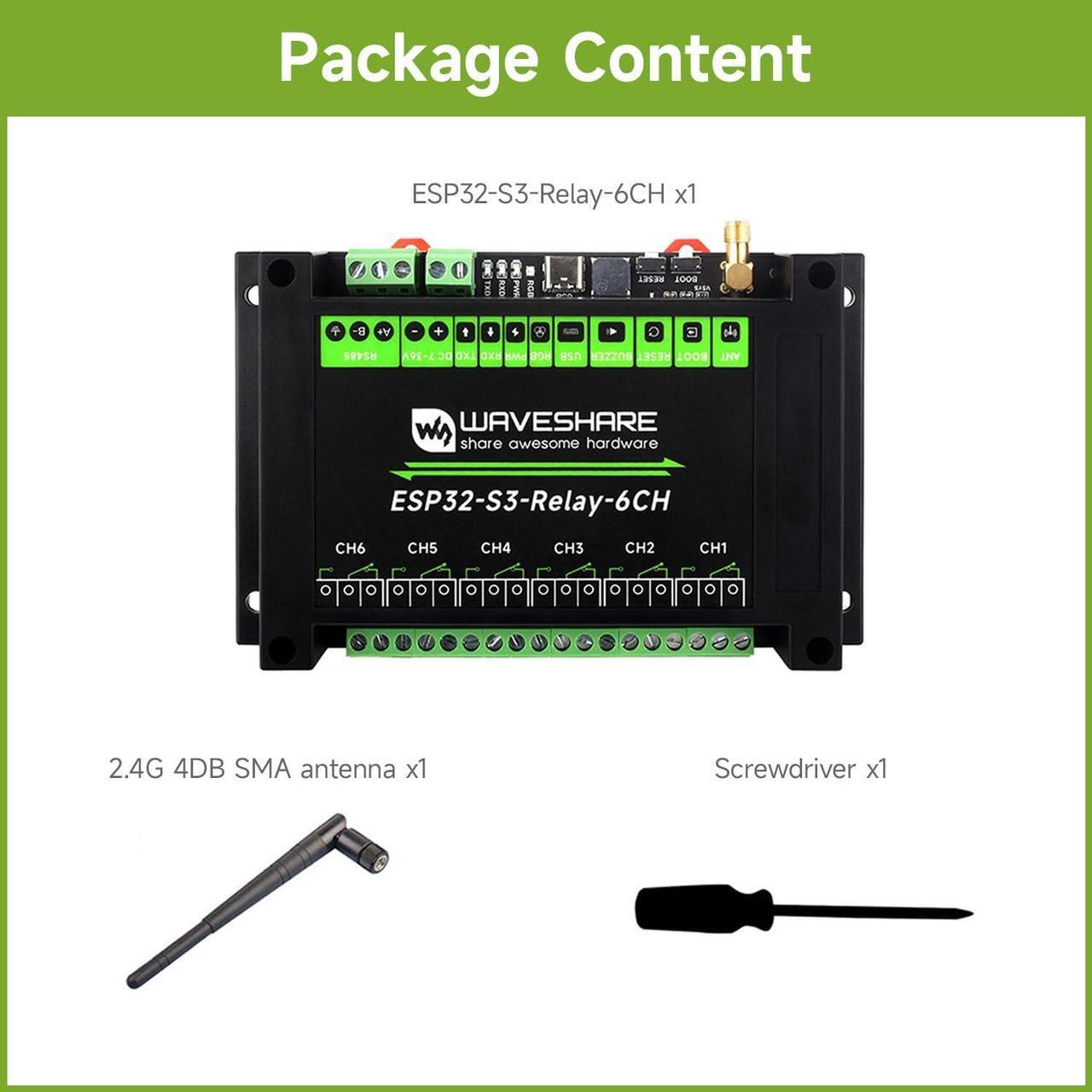

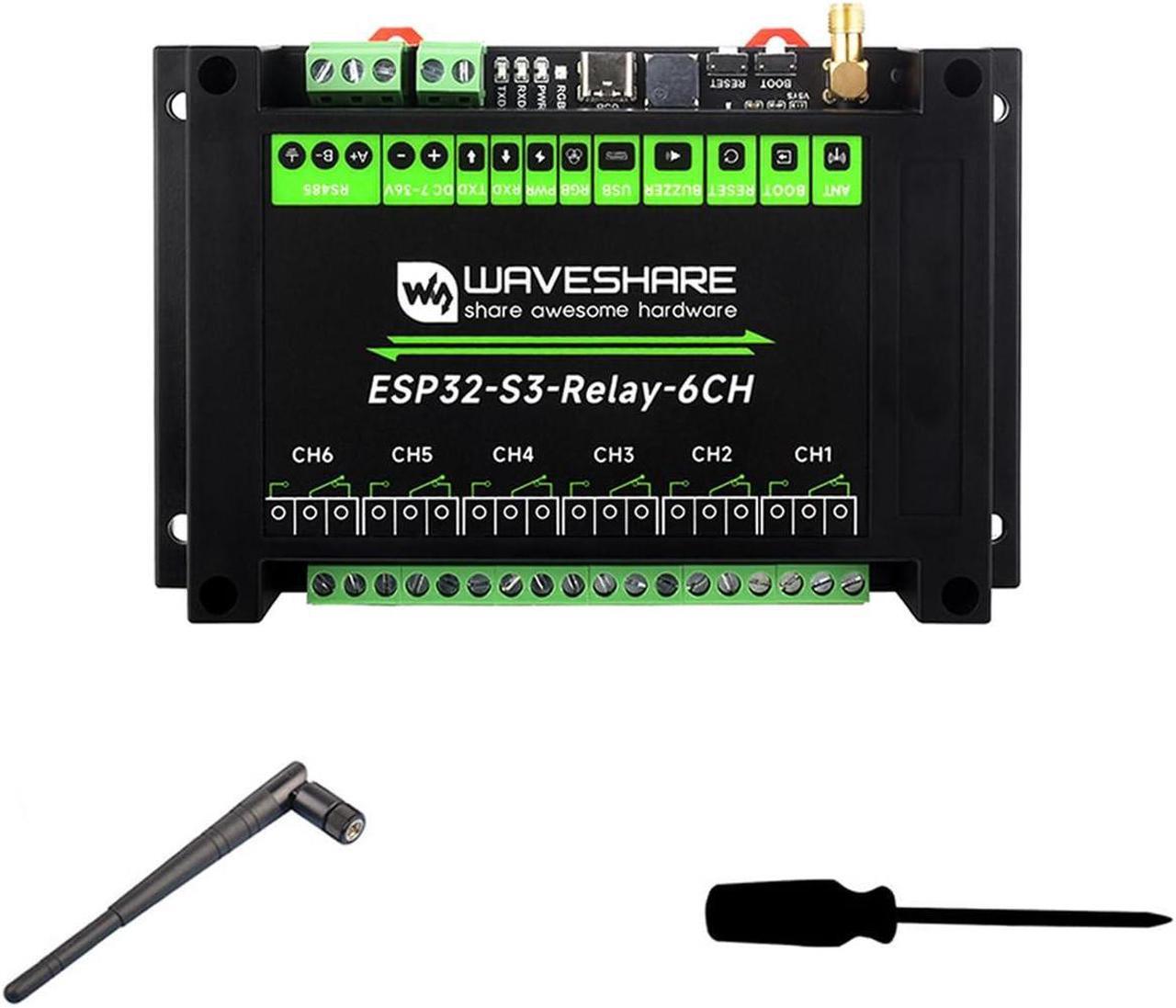

Waveshare Industrial 6-Channel ESP32-S3 WiFi Relay Module, Supports WiFi/Bluetooth/RS485 Control, Onboard RS485 / Pico HAT Interfaces, with Multiple Isolation Protection Circuits
- Based on ESP32-S3 microcontroller with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
- Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance. High quality relay, contact rating: <=10A 250VAC/30VDC
- Onboard isolated RS485 interface, for connecting to various RS485 Modbus industrial modules or sensors
- Onboard 40PIN header compatible with some Raspberry Pi Pico HAT, for expanding more functions such as RTC / CAN / RS232 / LoRa / sensor, etc.
- Onboard USB Type-C port for power supply, firmware downloading and debugging. Onboard power supply screw terminal, supports 7~36V wide voltage input, suitable for industrial applications

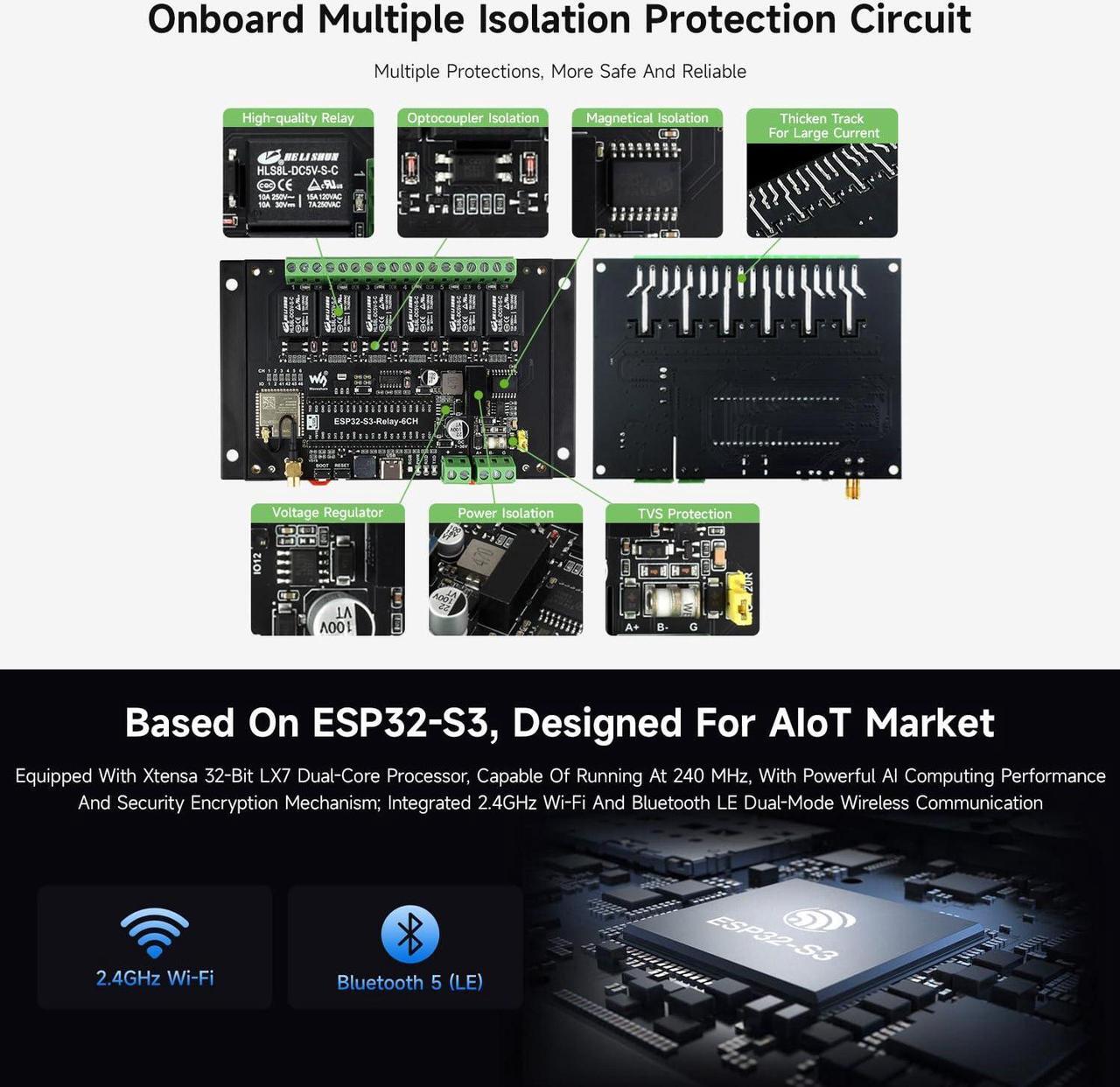

- Onboard optocoupler isolation to prevent interference from external high-voltage circuit connected to the relay. Onboard digital isolation to prevent interference from external signal
- Onboard unibody power supply isolation, providing stable isolated voltage, no extra power
+
+
Overview

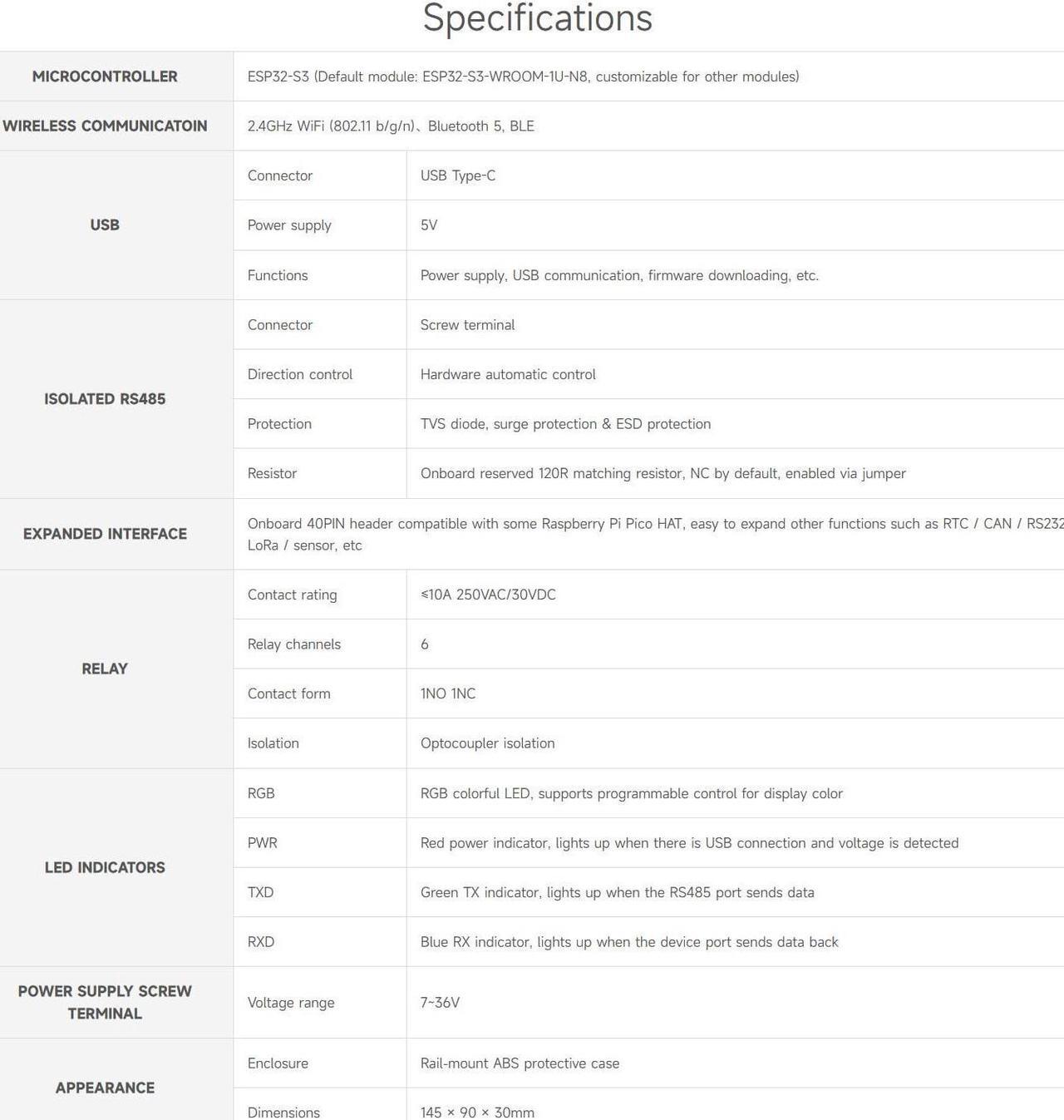

Specs
