waveshare 1.5inch RGB OLED Display Module, 128x128 Pixels Displaying 65K Colors, Support Raspberry Pi Arduino STM32, SPI Interface

128x128 high resolution, 65K colors, clearly displays colorful images
Supports 4-wire SPI OR 3-wire SPI interface, configured via onboard resistor
Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
A cool addition to any Arduino project and is fairly simple to get setup and running
SSD1351 OLED

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

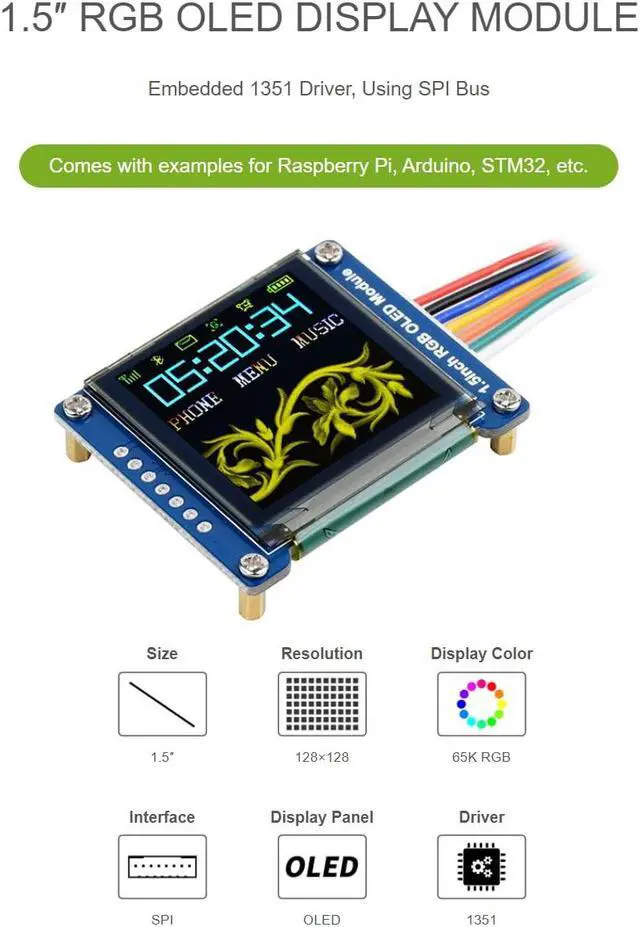

1.5 inch RGB OLED display module, 128x128 pixels, 16-bit high color, SPI interface
Overview

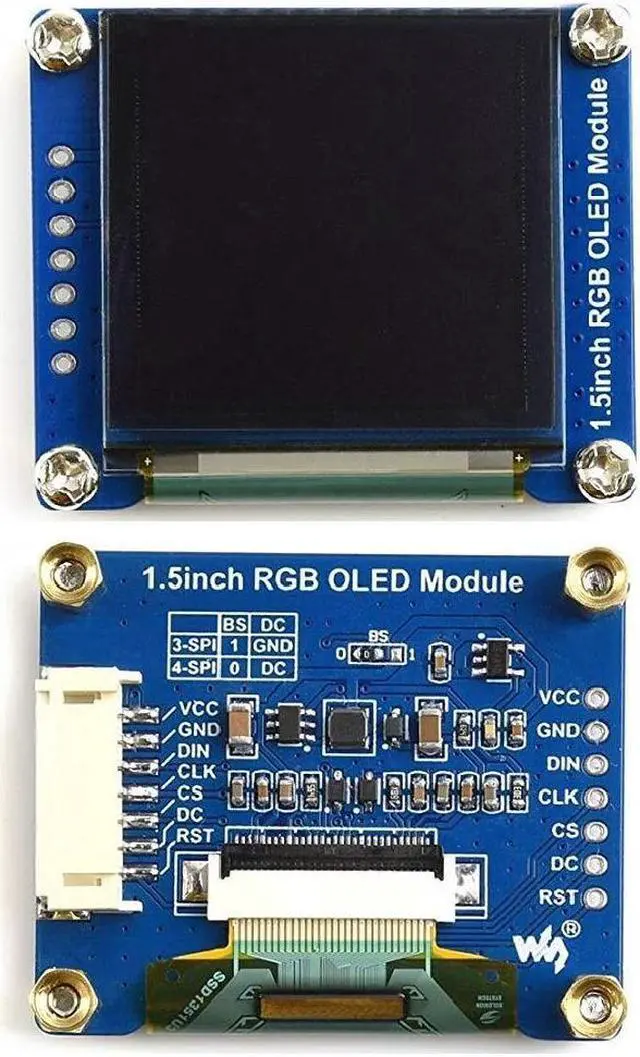

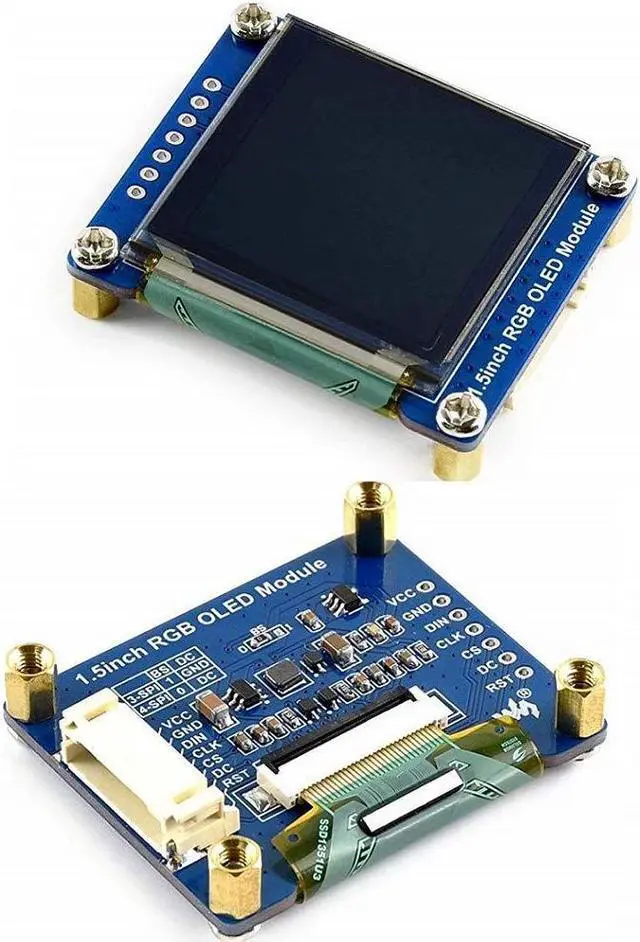

This is a general RGB OLED display Module, 1.5 inch diagonal, 128x128 pixels, 16-bit high color (65K colors), with embedded controller, communicating via SPI interface.

Specifications

Driver: SSD1351

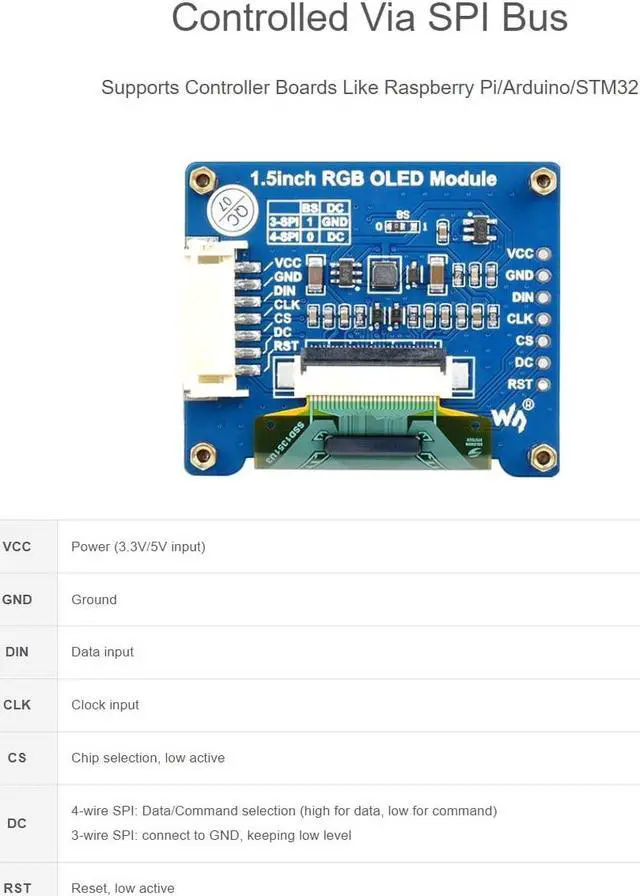

Interface: 4-wire SPI, 3-wire
SPI Display color: RGB, 65K colors
Resolution: 128x128
Viewing angle: >160deg
Operating voltage: 3.3V / 5V Dimension: 44.5 x 37 (mm)

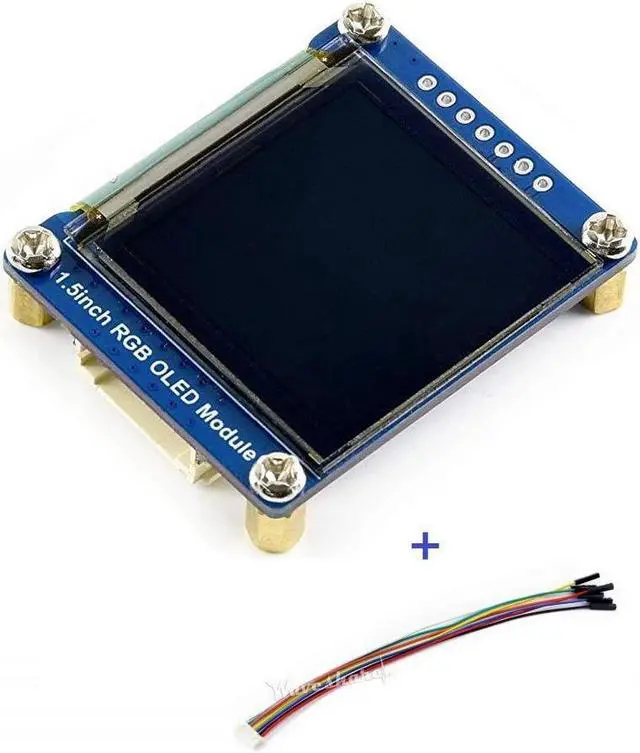

Package Content 1.5 inch RGB OLED Module x1 PH 2.0 7Pin x1
