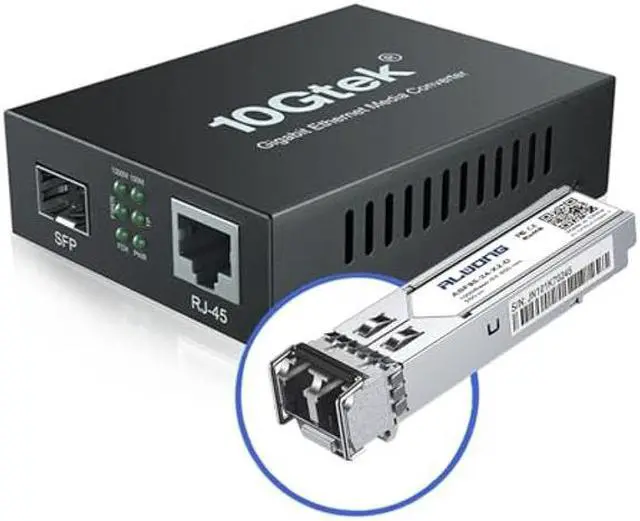

Gigabit Ethernet Media Converter, Multi-Mode Dual LC Fiber to Ethernet Converter with a 1000Base-SX Module, 1.25G Fiber to RJ45, 10/100/1000Base-Tx to 1000Base-SX, 850nm, MMF, up to 550m (1804ft)
- [(Fiber Optical Port)] 1.25Gbps SFP port, link the Multi-Mode Dual LC transcceivers up to 550m via OM3/OM4 multimode fiber cable [1* SFP SX Module included(1.25G, multimode, 850-nm)]. Fiber Type: MMF, Cable Type: UTP/STP Cat.5e for 100 meters. Designed to convert 1000BASE-Tx copper to 1000Base-SX fiber media or vice versa.
- [(RJ-45 Port)] Reliable auto-negotiation gigabit connectio. Works at 10M/100M/1000Mbps in full/half duplex auto-negotiation, MDI/MDIX auto-crossover. Bridging different network speeds and devices to a Gigabit fiber network. Supports auto MDI/MDIX auto-crossover, extends fiber distance to 500m (1641 feet) via single mode duplex LC fiber.
- [(Plug and Play)] Modulization configuration design. plug in optical port and RJ45 port, and it will work immediatelly. Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3z, IEEE802.3ab, IEEE 802.3x. LED indicators for TX, FX LINK/ACT, POWER, FDX to easily monitor network status. Supports jumbo frame size 9K byte. Operating T
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
G0101-SFP-Alwong
G0101-SFP series GE Media converter provides one port 1000M fiber and one SFP slot, it's applicable to use in desktop Gigabit Ethernet networking. It is designed with Marvel 88E6320 chip to ensure stability and ultra-low time-delay data transmission. Built-in LED indicators for PWR, FDX, FIBER, TP, 1000M, 100M can dynamic feedback link connection state and fault detection to easily monitor network status. The switch can be inserted into a 19"2U rack.
Features:

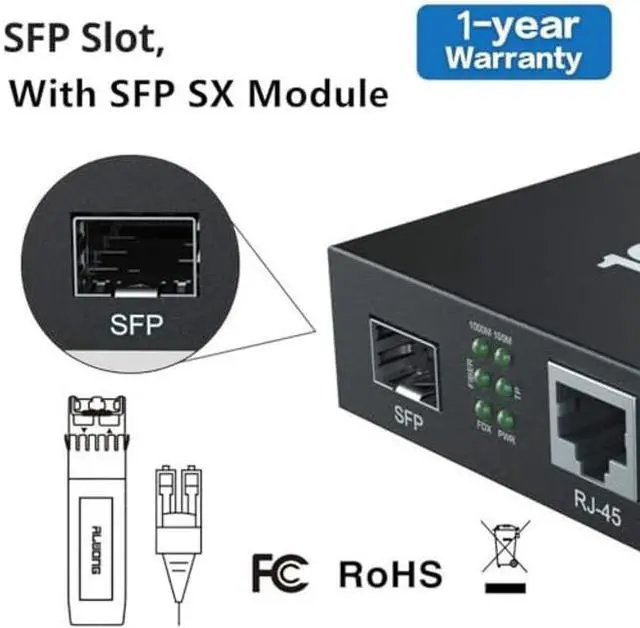

Fiber Port: SFP slot
UTP Port: RJ-45 10/100/1000Mbps, with auto negotiation function can auto select 10/100/1000M and Full Duplex or Half Duplex, supports the connection of MDI/MDI-X auto crossover

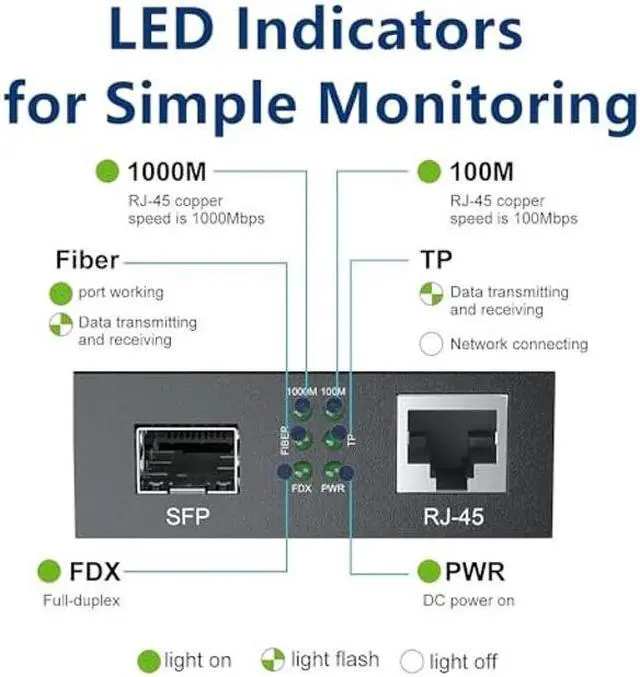

LED Indicators: PWR, FDX, FIBER, TP, 1000M, 100M
UTP/STP Cable: Cat. 5e or Cat. 6 up to 100m
Standard Compliance: IEEE 802.3 z/ab, 1000Base-T
Support flow control and broadcast storm protection
Supporting the max 9216 byte Ethernet packet and flow control
VLAN function is customized
MAC address table: 2K support self-learning update
Data Buffer: 512kb

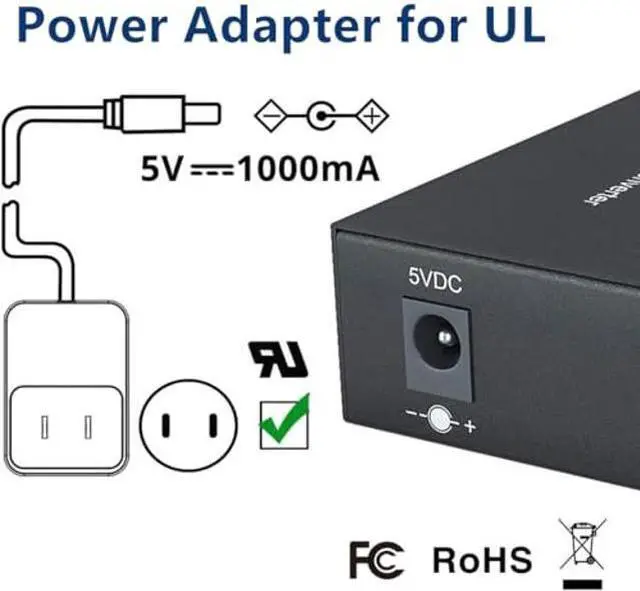

Power Supply: DC 5V-1A
Opreat Temp. (): 0~50
Storage Temp. (): -20~70
Size (L*W*H): 94 *70*26 (mm)
G0101-SFP series GE Media converter provides one port 1000M fiber and one SFP slot, it's applicable to use in desktop Gigabit Ethernet networking. It is designed with Marvel 88E6320 chip to ensure stability and ultra-low time-delay data transmission. Built-in LED indicators for PWR, FDX, FIBER, TP, 1000M, 100M can dynamic feedback link connection state and fault detection to easily monitor network status. The switch can be inserted into a 19"2U rack.
Features:
Fiber Port: SFP slot
UTP Port: RJ-45 10/100/1000Mbps, with auto negotiation function can auto select 10/100/1000M and Full Duplex or Half Duplex, supports the connection of MDI/MDI-X auto crossover
LED Indicators: PWR, FDX, FIBER, TP, 1000M, 100M
UTP/STP Cable: Cat. 5e or Cat. 6 up to 100m
Standard Compliance: IEEE 802.3 z/ab, 1000Base-T
Support flow control and broadcast storm protection
Supporting the max 9216 byte Ethernet packet and flow control
VLAN function is customized
MAC address table: 2K support self-learning update
Data Buffer: 512kb
Power Supply: DC 5V-1A
Opreat Temp. (): 0~50
Storage Temp. (): -20~70
Size (L*W*H): 94 *70*26 (mm)
