Waveshare Atmel-ICE Basic Kit Powerful Development Tool for Debugging and Programming Atmel SAM and AVR Microcontrollers with Adapters and Cables

Overview

Atmel-ICE is a powerful development tool for debugging and programming Atmel ARM Cortex-M based Atmel SAM and AVR microcontrollers with on-chip debug capability.


Key Features

Supports JTAG SWD PDI TPI aWire SPI and debugWIRE interfaces
Full source-level debugging in Atmel Studio
Supports all built-in hardware breakpoints in the target microcontroller (number depends on the OCD module in the target)
Up to 128 software breakpoints
1.62 to 5.5V target operation
USB powered
Provides both ARM Cortex Debug Connector (10-pin) pin-out and AVR JTAG connector pin-out

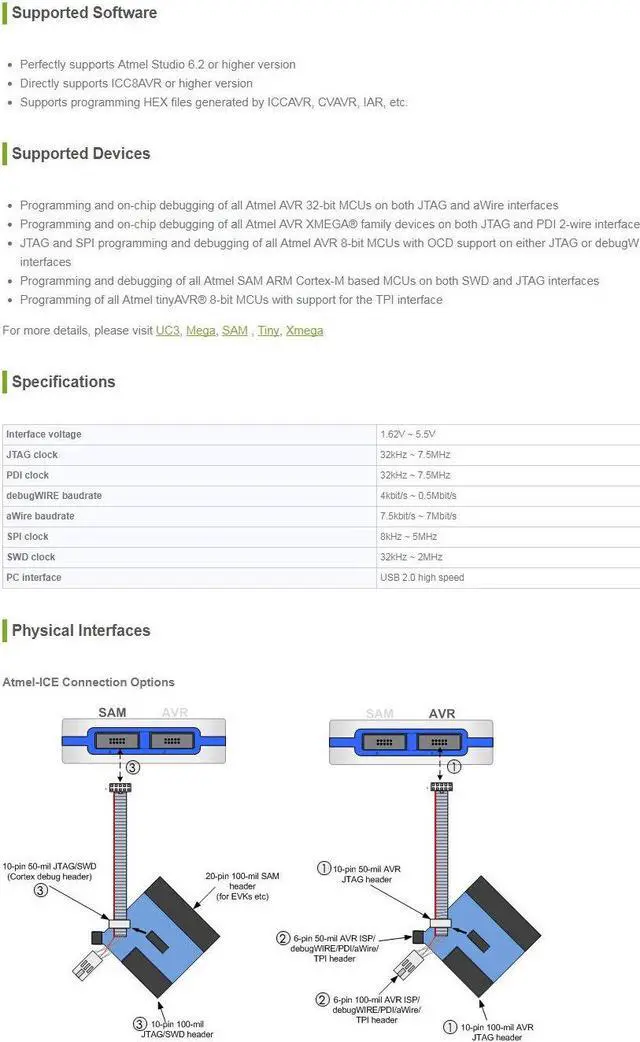

Supported Software

Perfectly supports Atmel Studio 6.2 or higher version
Directly supports ICC8AVR or higher version
Supports programming HEX files generated by ICCAVR CVAVR IAR etc.

Supported Devices

Programming and on-chip debugging of all Atmel AVR 32-bit MCUs on both JTAG and aWire interfaces
JTAG and SPI programming and debugging of all Atmel AVR 8-bit MCUs with OCD support on either JTAG or debugWIRE interfaces
Programming and debugging of all Atmel SAM ARM Cortex-M based MCUs on both SWD and JTAG interfaces
Programming of all Atmel tinyAVR 8-bit MCUs with support for the TPI interface

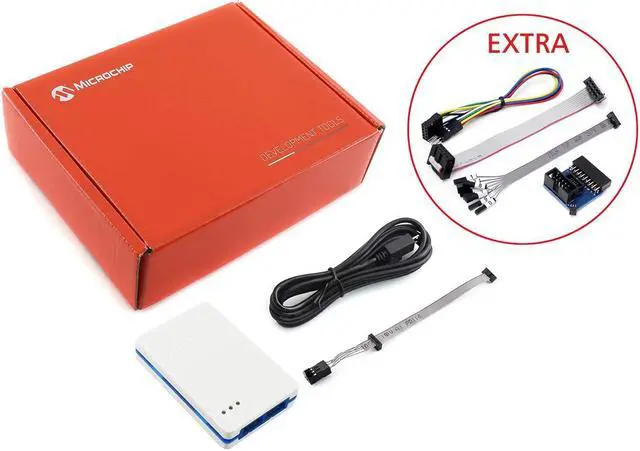

PACKAGE CONTENT

Atmel-ICE unit x1 USB cable ( 1.8 m high-speed micro-B) x1

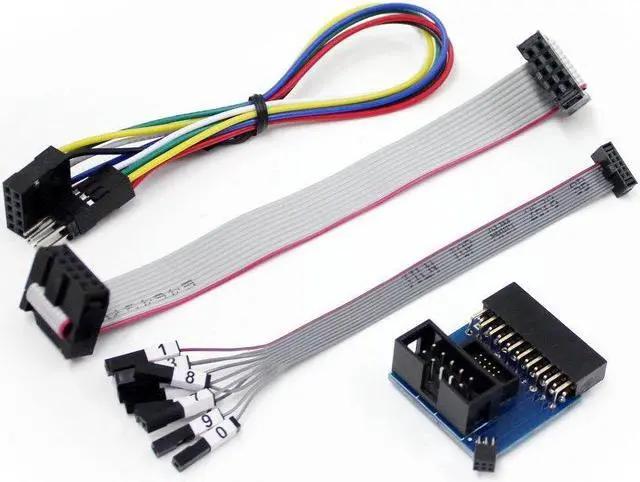

IDC flat cable with 10-pin 50-mil connector and 6-pin 100-mil connector x1

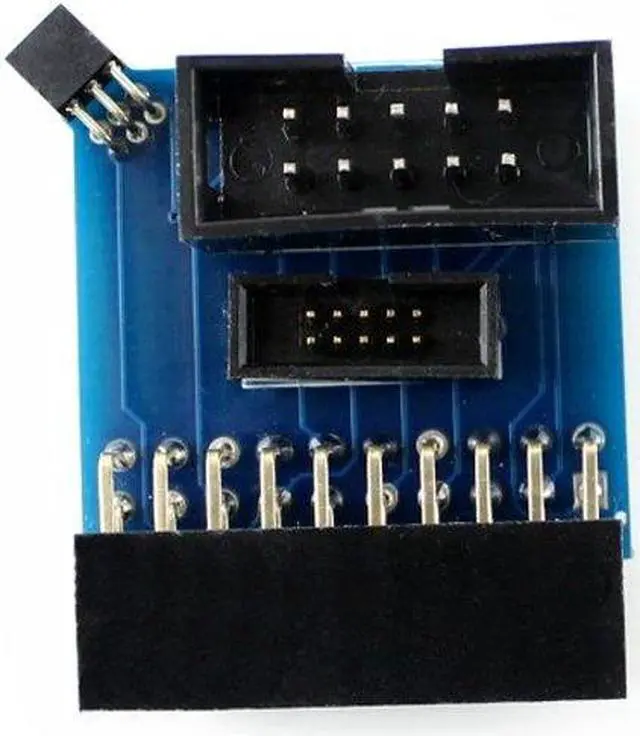

Multi-functional adapter board x1
10pin flat cable x1
10pin 100mil squid cable x1
6-pin to 10-pin ISP cable x1
